InMode Without Vasculaze Operator Manual
Section 4: Device Description
The DiolazeXL Handpiece contains:
Diolaze comprises diode laser with linear scanning system,
cooled sapphire output window (8 x 50mm), and electronic
shutter.
DiolazeXL diode laser (the bars vary according to wavelength –
810, alternate 810 and 1064, and alternate 755 and 810nm).
There is a cooled sapphire output window (11X27.5mm), and
electronic shutter (Figure 4-12).
Has a length of 170cm (67”)
The Connector is connected to the System.
Each of the Lumecca Handpieces (515 and 580) comprises an Applicator, Cable and
Connector.

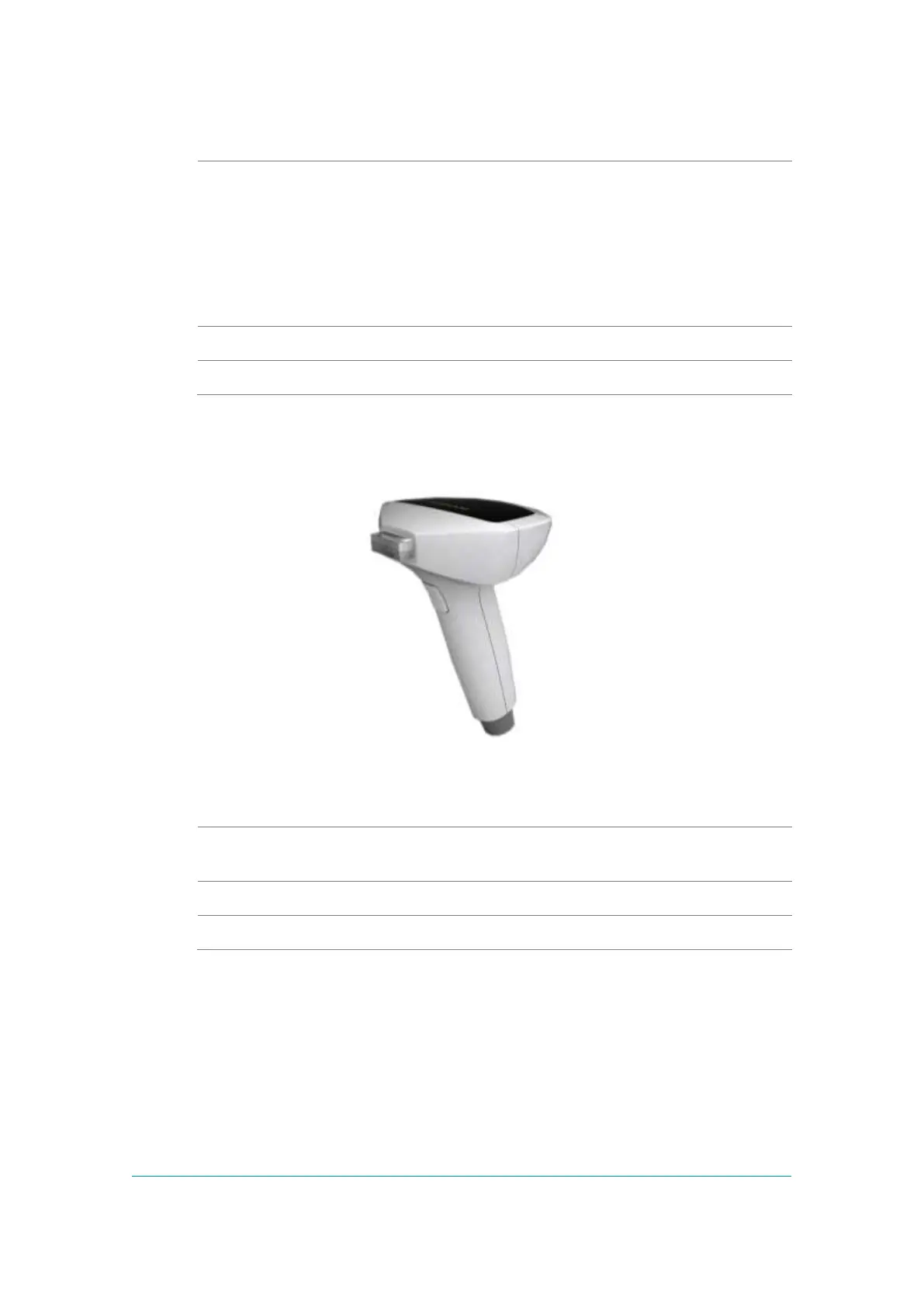

Figure -13: Lumecca Handpiece
The Lumecca Handpiece contains:
Comprises flash lamp and reflector emitting optical energy
through the pre-cooled light guide (30x10mm) (Figure 4-13).
The Connector is connected to the System.
The Fractora Handpiece comprises an Applicator, Cable and Connector (Figure -14).
Single use tip is connected to the groove in the handle before each use (Figure -15).
The tip is connected or disconnected by pull or push movement.
