Rated Temperatures and De-rating curves
6
6.4.2. 2.2A, 4.1A, 5.8A, 9.5A Output, IP66
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
0 10 20 30 40 50
Output Curremt (A)
Ambient Temperature (°C)

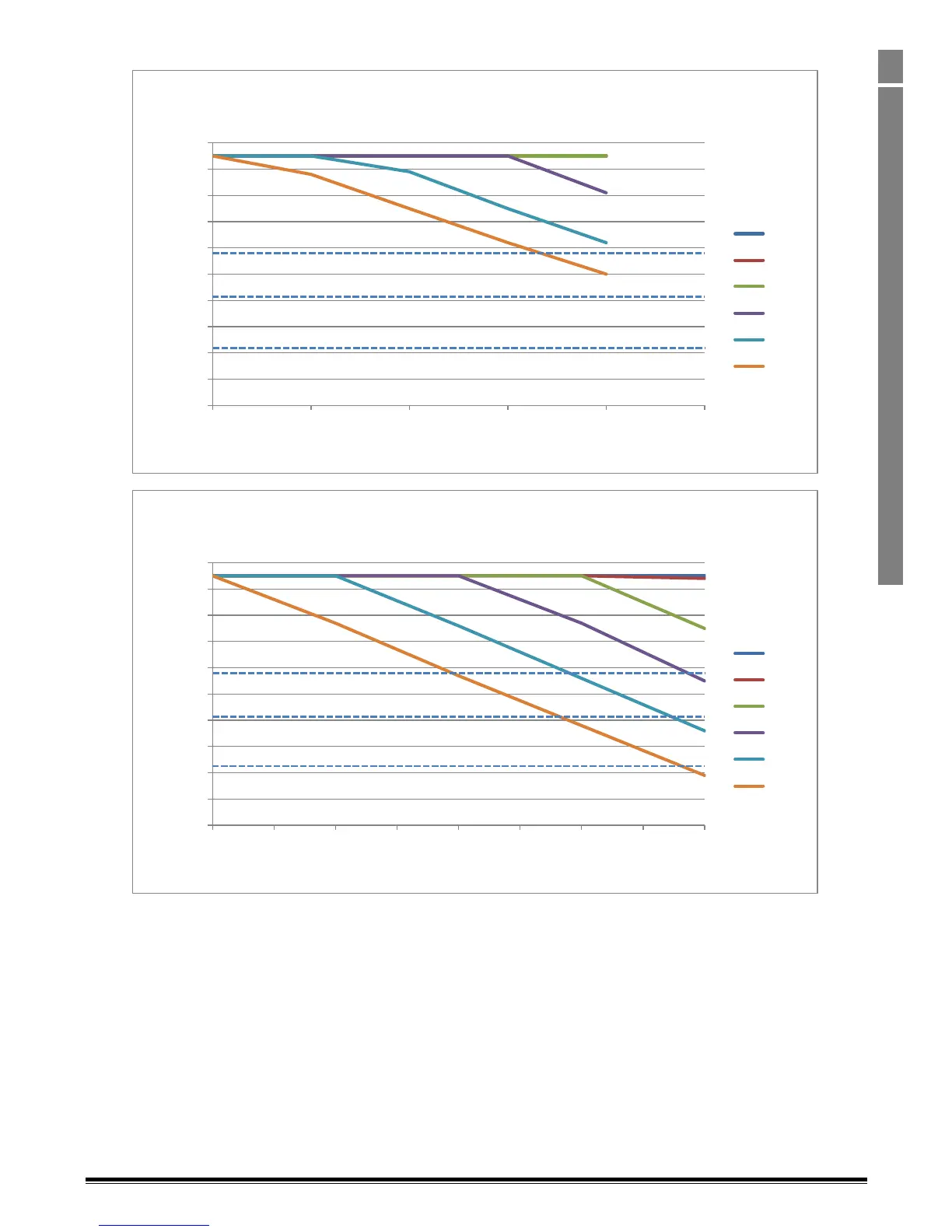

ODP-2, Size 2, 400V, 4kW, IP66 Drive
De-rating - Without Thermal Managment
4kHz
8kHz
12kHz
16kHz
24kHz
32kHz
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
0 5 10 15 20 25 30 35 40
Output Curremt (A)
Ambient Temperature (°C)
ODP-2, Size 2, 400V, 4kW, IP66 Drive
De-rating - With Thermal Managment
4kHz
8kHz
12kHz
16kHz
24kHz
32kHz
