Rated Temperatures and De-rating curves
6
6.9. Size 7, 200 – 240V & 380-480V,
6.9.1. 202A, 240A, 302A Output, IP55
0
50
100
150
200
250
300
350
0 10 20 30 40 50
Output Curremt (A)
Ambient Temperature (°C)

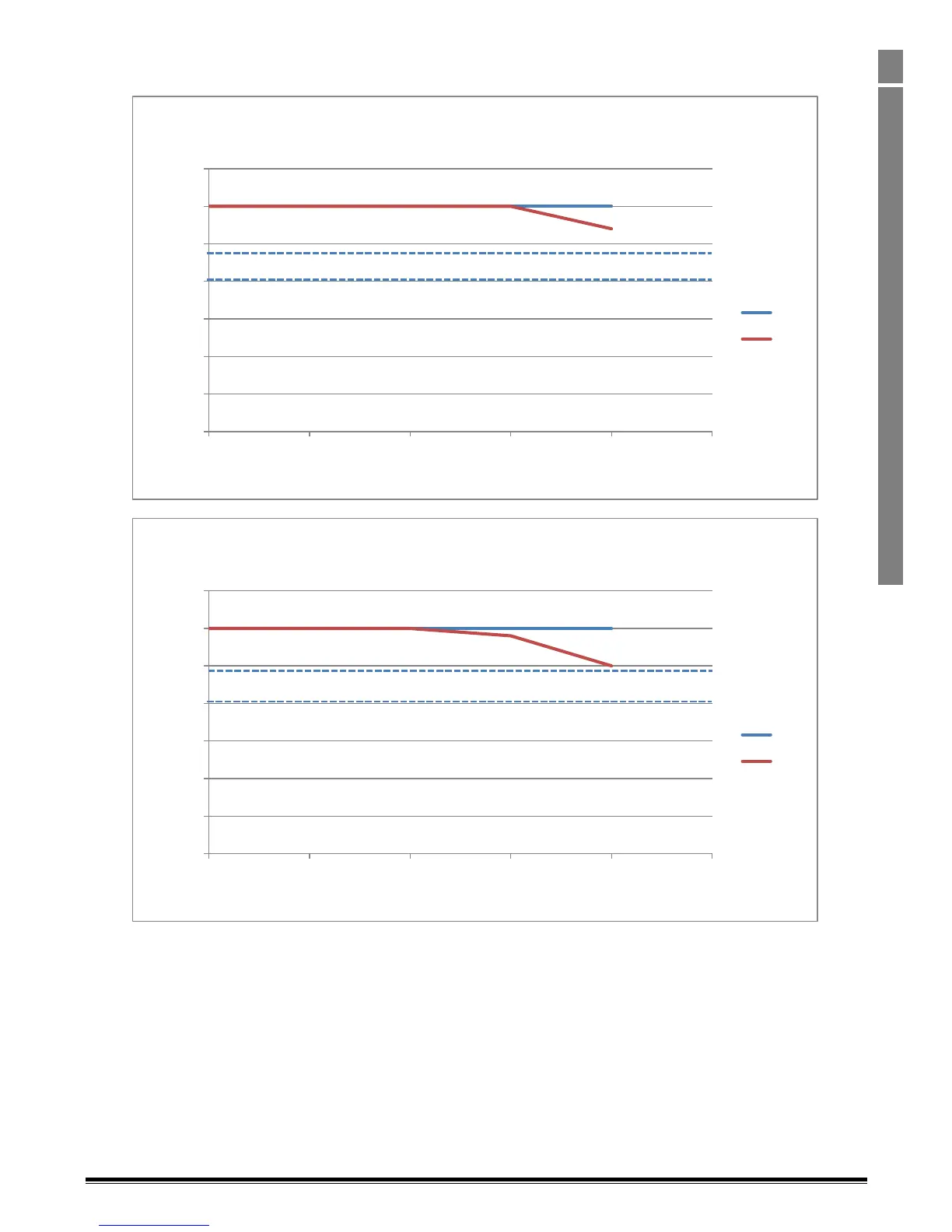

ODP-2, Size 7, 400V, 160kW Drive, IP55
De-rating - Without Thermal Managment
4kHz
8kHz
0
50
100
150
200
250
300
350
0 10 20 30 40 50
Output Curremt (A)
Ambient Temperature (°C)
ODP-2, Size 7, 400V, 160kW Drive, IP55
De-rating - With Thermal Managment
4kHz
8kHz
