Rated Temperatures and De-rating curves
6
6.7. Size 5, 200 – 240V & 380-480V,
6.7.1. 61A & 72A Output, IP55
0
10
20
30
40
50
60
70
80
0 10 20 30 40 50
Output Curremt (A)
Ambient Temperature (°C)

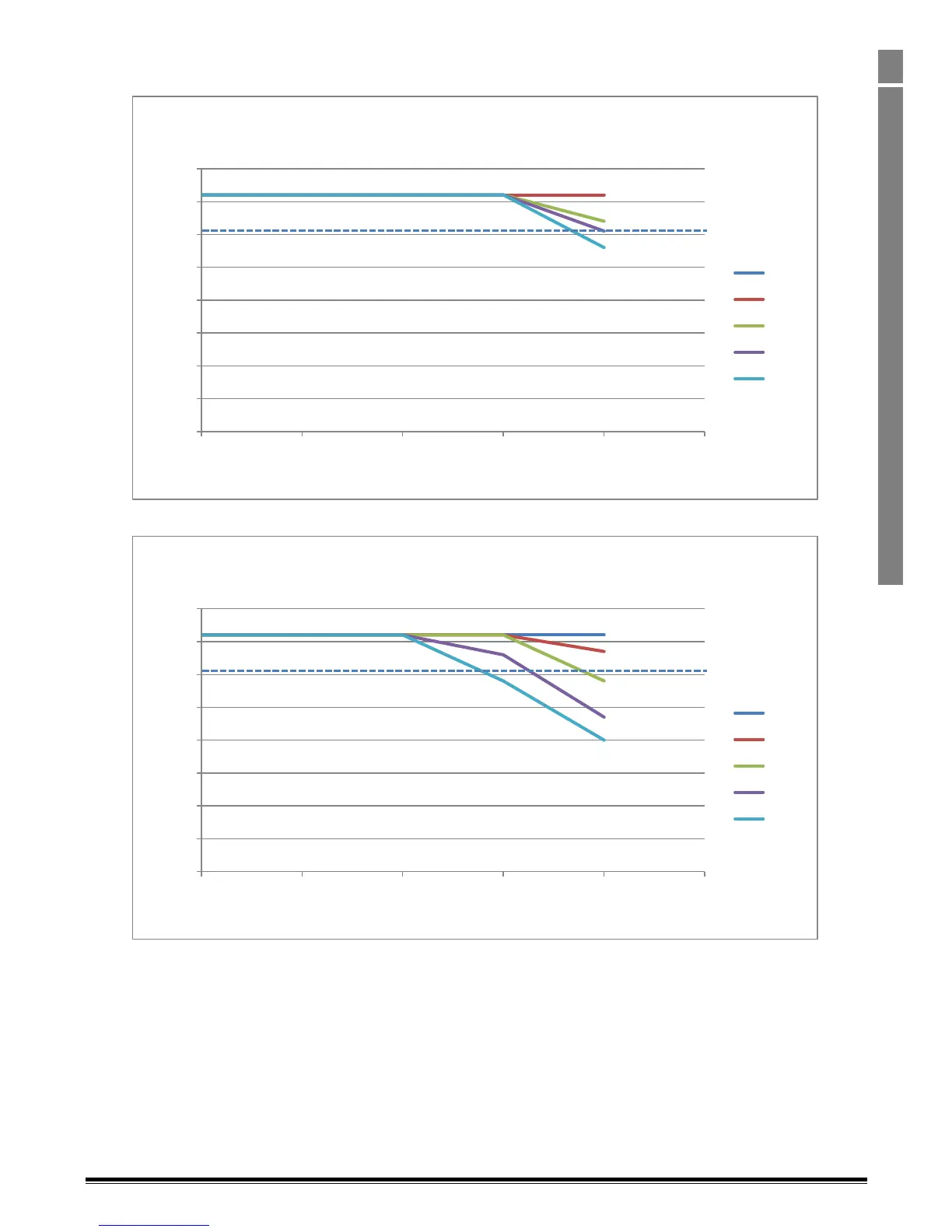

ODP-2, Size 5, 400V, 37kW, IP55 Drive
De-rating - Without Thermal Managment
4kHz
8kHz
12kHz
16kHz
24kHz
0
10
20
30
40
50
60
70
80
0 10 20 30 40 50
Output Curremt (A)
Ambient Temperature (°C)
ODP-2, Size 5, 400V, 37kW, IP55 Drive
De-rating - With Thermal Managment
4kHz
8kHz
12kHz
16kHz
24kHz
