Invertek Optidrive VTC - 3 Mechanical Installation; Mechanical Dimensions and Mounting

Optidrive VTC – User Guide
6 www.invertek.co.uk

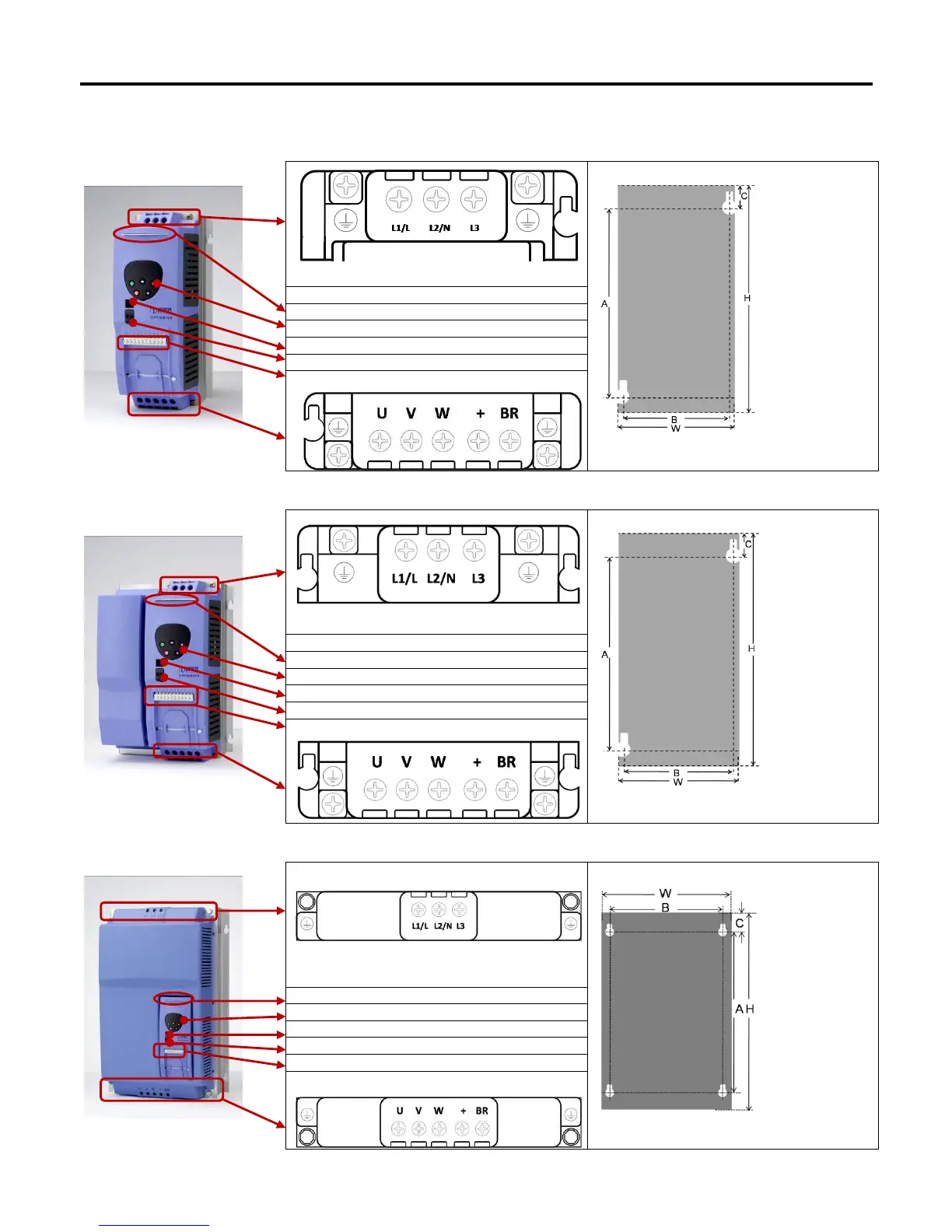

3. Mechanical Installation
3.1. Mechanical dimensions and mounting
3.1.1. Frame Size 2
Overall Dimensions
Height
260mm
Width
100mm
Depth
175mm
A
210mm
B
92mm
Incoming Power Terminals
C
25mm
Help Card
Keypad & Display – See Section 0 on page 12
Footprint View
RJ11 Connector – See Section
Infra Red Interface
Weight : 2.6Kg
Control Terminals – See Section  on page 10
Motor & Brake Resistor Connection Terminals
Fixings : 2 x M4 Keyhole slots
Power Terminals Torque Setting : 1Nm
3.1.2. Frame Size 3
Overall Dimensions
Height
260mm
Width
171mm
Depth
175mm
A
210mm
B
163mm
Incoming Power Terminals
C
25mm
Help Card
Keypad & Display – See Section 0 on page 12
Footprint View
RJ11 Connector – See Section
Infra Red Interface
Weight : 5.3Kg
Control Terminals – See Section  on page 10
Motor & Brake Resistor Connection Terminals
Fixings : 4 x M4 Keyhole slots
Power Terminals Torque Setting : 1Nm
3.1.3. Frame Size 4
Overall Dimensions
Height
520mm
Width
340mm
Depth
220mm
A
420mm
B
320mm
Incoming Power Terminals
C
50mm
Help Card
Keypad & Display – See Section 0 on page 12
Footprint View
RJ11 Connector – See Section
Infra Red Interface
Weight : 28Kg
Control Terminals – See Section  on page 10
Motor & Brake Resistor Connection Terminals
Fixings : 4 x M8 Keyhole slots
Power Terminals Torque Setting : 4Nm
