Invision SL7D - FM Channel from Front Panel

18
SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
FM CHANNEL
FM CHANNEL from the Front Panel (M1 Only) (Figure 15):
1� Press the MENU/SELECT button on the front panel of the system (Figure 15) to show the
System Menu�
2� Use the UP or DOWN direction buttons to select FM Modulator and press the
MENU/SELECT button to enter the sub-menu� (Figure 15)
3� Use the UP or DOWN direction buttons to select FM Channel and press ENTER button
to enter selection�
4� Use the UP/DOWN/LEFT and RIGHT direction buttons to select the best channel/
frequency from a four page list of one hundred possibilities then press the ENTER button
to enter selection�
5� When a channel/frequency is selected, the FM Modulator screen will display the channel/
frequency�
6� The FM Modulator sub-menu will automatically disappear from main screen within 5 or 6
seconds, or use the UP or DOWN direction buttons to return to the System Menu�
SL7D (M1 only)

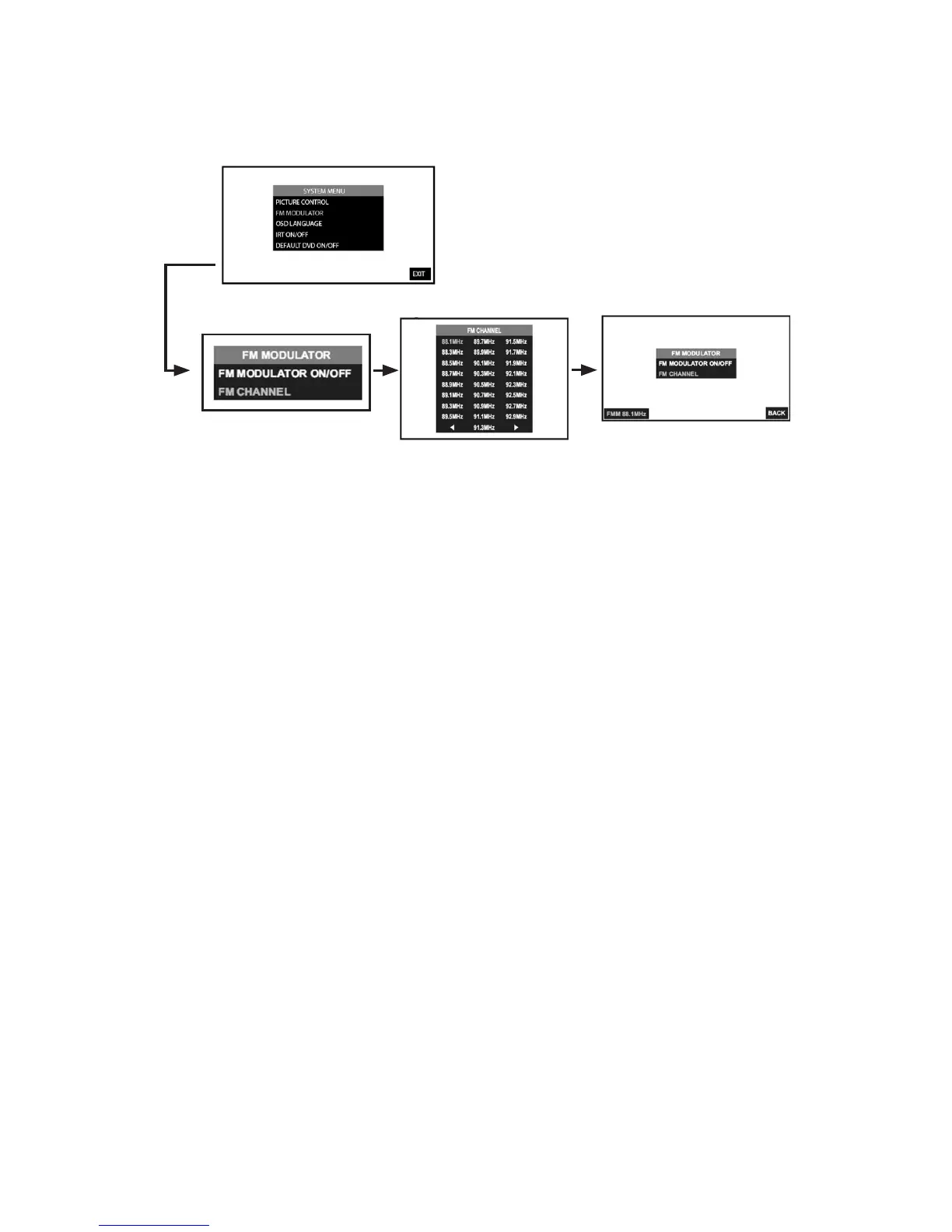

Figure 15
SYSTEM SETUP SUBMENUS (continued)
