INVT CHE100-0R4G-S2 User Manual

Detailed Function Description
59
P6.05 AO upper limit 0.0%~100.0% 0.0~100.0 100.0%
P6.06
AO upper limit
corresponding output
0.00V ~10.00V 0.00~10.00 10.00V
These parameters determine the relationship between analog output voltage/current and
the corresponding output value. When the analog output value exceeds the range
between lower limit and upper limit, it will output the upper limit or lower limit.
When AO is current output, 1mA is corresponding to 0.5V.
For different applications, the corresponding value of 100.0% analog output is different.
For details, please refer to description of each application.

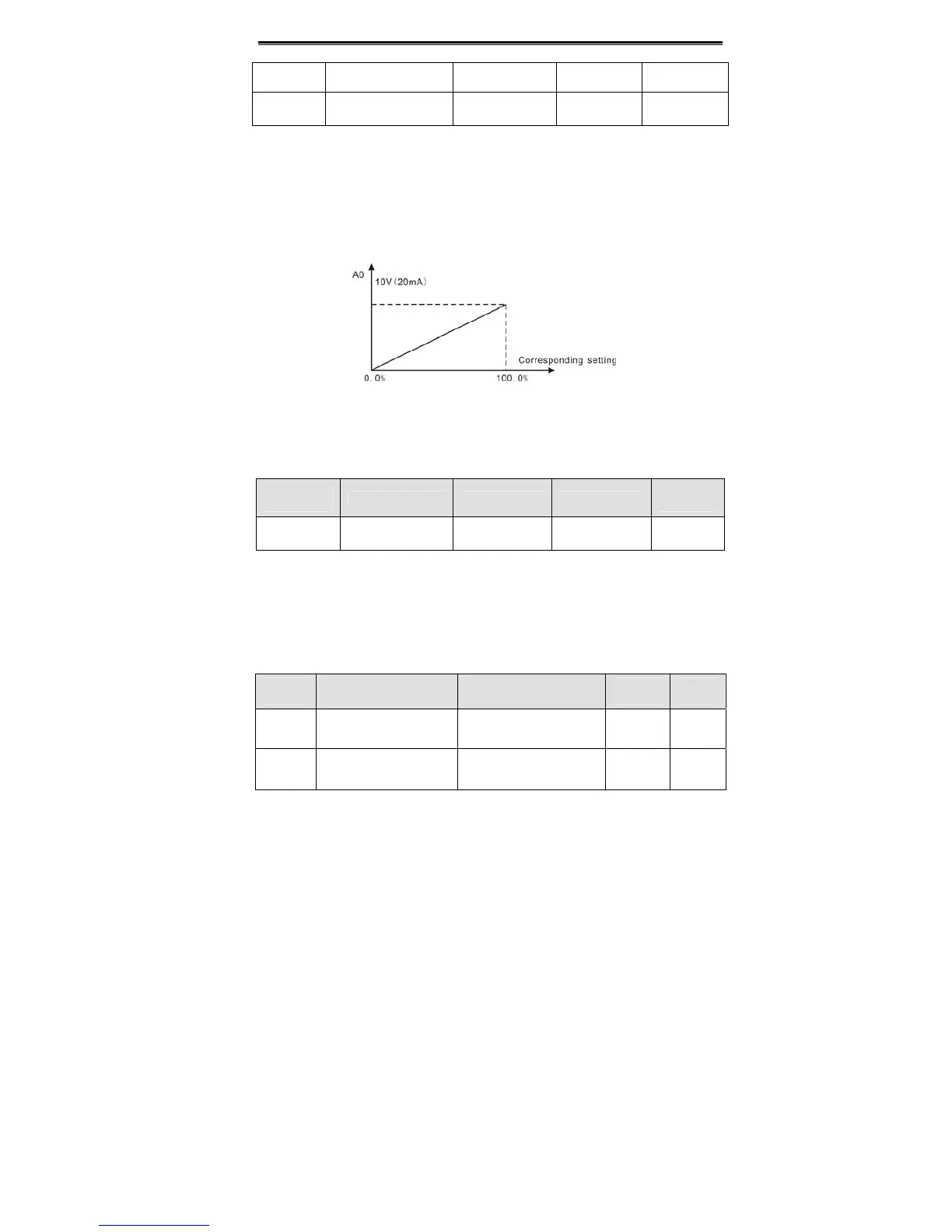

Figure 6.15 Relationship between AO and corresponding setting.
6.8 P7 Group--Display Interface
Function
Code
Name Description Setting Range
Factory
Setting
P7.00
User password 0~65535 0~65535 0
The password protection function will be valid when set to be any nonzero data. When
P7.00 is set to be 00000, user’s password set before will be cleared and the password
protection function will be disabled.
After the password has been set and becomes valid, the user can not access menu if the
user’s password is not correct. Only when a correct user’s password is input, the user can
see and modify the parameters. Please keep user’s password in mind.
Function
Code
Name Description
Setting
Range
Factory
Setting
P7.01
LCD language selection
0: Chinese
1: English
0~1 0
P7.02
Parameter copy
0: Invalid
1: Upload from inverter
2: Download to inverter
0~2 0
