INVT CHE100-0R4G-S2 User Manual

Detailed Function Description
72
PA.02 Multi-step speed 2 -100.0~100.0% -100.0~100.0 0.0%
PA.03 Multi-step speed 3 -100.0~100.0% -100.0~100.0 0.0%
PA.04 Multi-step speed 4 -100.0~100.0% -100.0~100.0 0.0%
PA.05 Multi-step speed 5 -100.0~100.0% -100.0~100.0 0.0%
PA.06 Multi-step speed 6 -100.0~100.0% -100.0~100.0 0.0%
PA.07 Multi-step speed 7 -100.0~100.0% -100.0~100.0 0.0%
Notice:
 100% of multi-step speed x corresponds to the maximum frequency (P0.04).
 If the value of multi-step speed x is negative, the direction of this step will be
reverse, otherwise it will be forward.
 Multi-step speed function has highest priority
Selection of step is determined by combination of multi-step terminals. Please refer to
following figure and table.

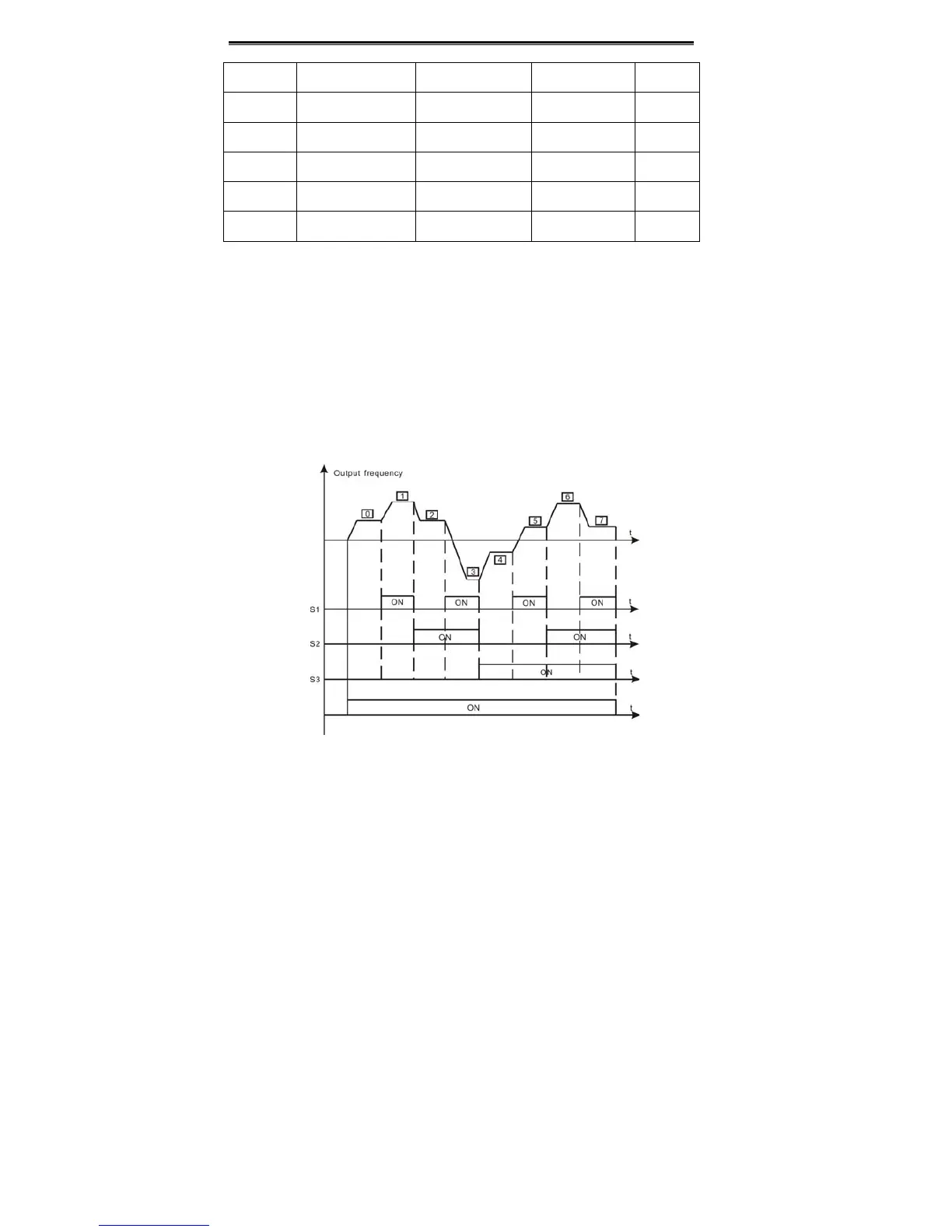

Figure 6.26 Multi-steps speed operating diagram.
