Detailed Function Description
66
highest traverse frequency.
Fall time of traverse: Indicates the time falling from the highest traverse frequency to the
lowest traverse frequency.
Notice:
P8.07 determines the output frequency range which is as below:
(1-P8.07%) * reference frequency ≤ output frequency ≤ (1+P8.07%) * reference
frequency
The output frequency of traverse is limited by upper frequency limit (P0.05)
and lower frequency limit (P0.06).
Function
Code
Name Description
Setting
Range
Factory
Setting
P8.11 Auto reset times
0~3 0~3 0
P8.12 Reset interval
0.1~100.0s 0.1~100.0 1.0s
Auto reset function can reset the fault in preset times and interval. When P8.11 is set to
be 0, it means “auto reset” is disabled and the protective device will be activated in case
of fault.
Notice: The fault such as OUT 1, OUT 2, OUT 3, OH1 and OH2 cannot be reset
automatically.
Function
Code
Name Description
Setting
Range
Factory
Setting
P8.13 FDT level 0.00~ P0.04 0.00~ P0.04 50.00Hz
P8.14 FDT lag 0.0~100.0% 0.0~100.0 5.0%

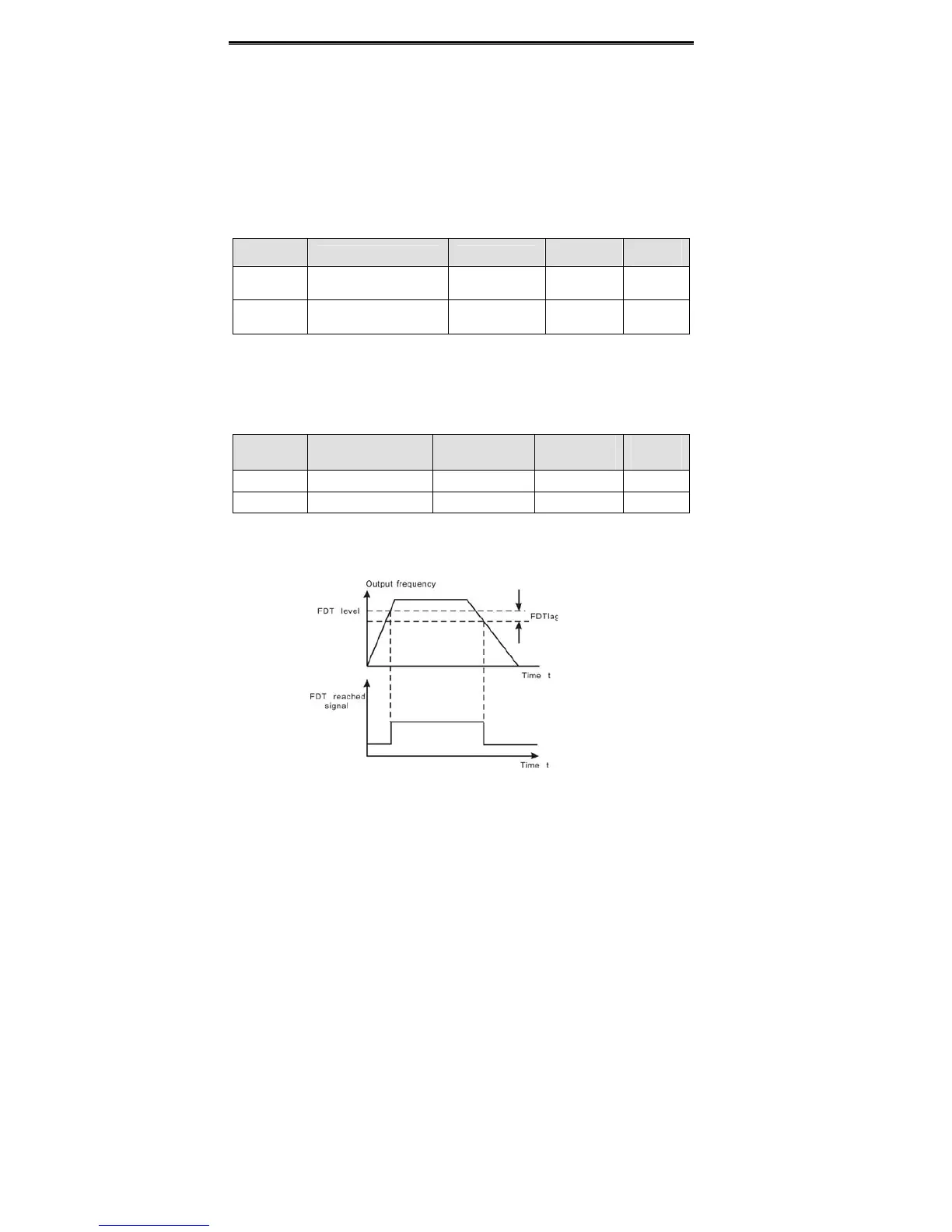

when the output frequency reaches a certain preset frequency (FDT level), output
terminal will output an ON-OFF signal until output frequency drops below a certain
frequency of FDT level (FDT level - FDT lag), as shown in following figure.
