Goodrive170-PV Series Solar Pump Inverter Installation guidelines
-9-

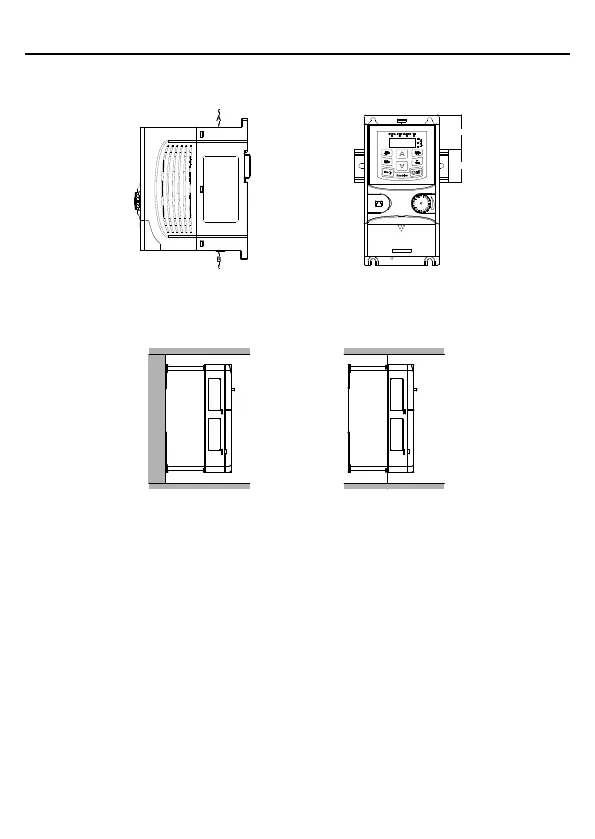

3.1.3 Installation mode
(1) The inverters of 2.2kW–4kW support wall mounting and rail mounting.
a) Wall mounting b) Rail mounting
Note: The minimum space of A and B is 100mm. H is 36.6mm and W is 35.0mm.
(2) The inverters of ≥ 5.5kW support wall mounting and flange mounting.
a) Wall mounting b) Flange mounting
1. Mark the position of the installation hole. See appendix for the position of installation
hole.
2. Mount the screws or bolts onto the designated position.
3. Put the inverter on the wall.
4. Tighten the fixing screws on the wall.
