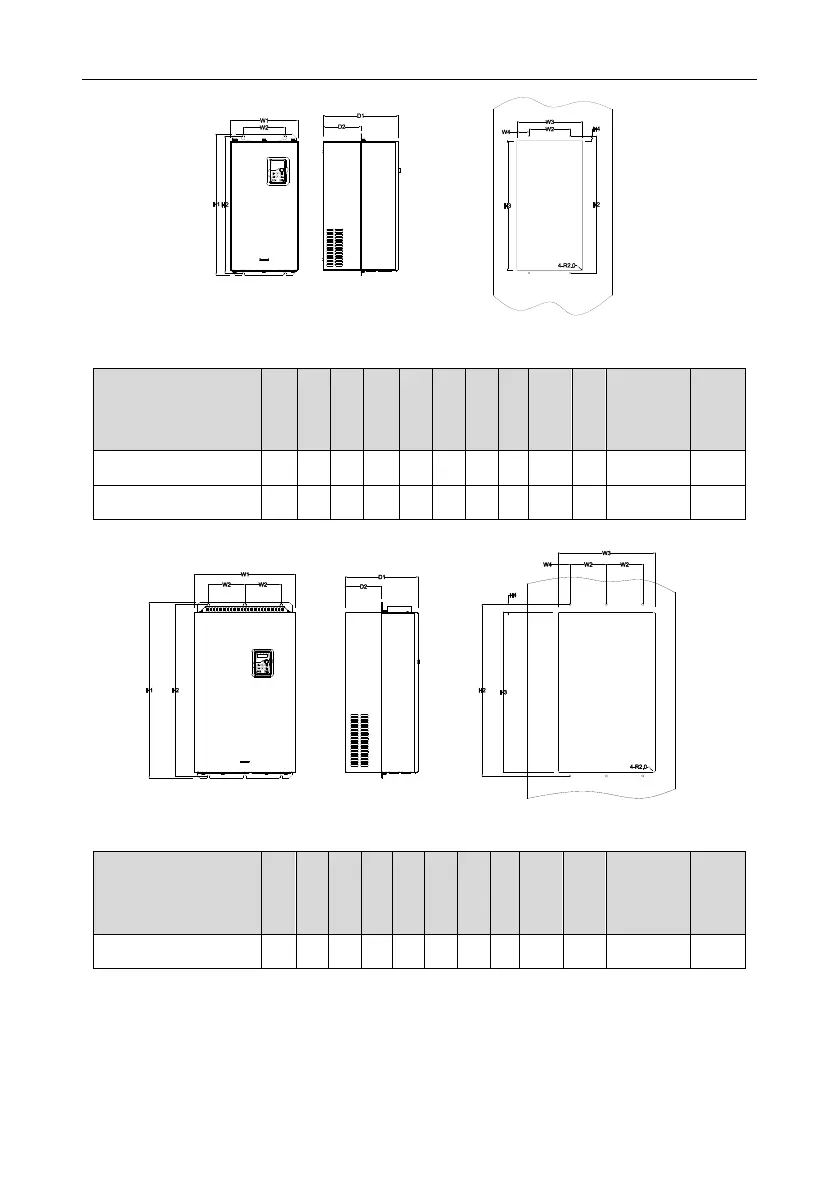

GD200A series VFD Dimension drawings
-158-
Figure B-10 Flange mounting for the 037G/045P–110G/132P models
VFD model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Weight
(kg)
037G/045P–055G/075P
270
130
261
65.5
555
540
516
17
332.6
167
7
30
075G/090P–110G/132P
325
200
317
58.5
680
661
626
23
373.6
182
9.5
47
Figure B-11 Flange mounting for the 132G/160P–200G/220P models
VFD model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Weight
(kg)
132G/160P–200G/220P
500
180
480
60
870
850
796
37
368.4
178.5
11
85
