INVT Goodrive200A Series User Manual

GD200A series VFD Peripheral options and parts
-171-

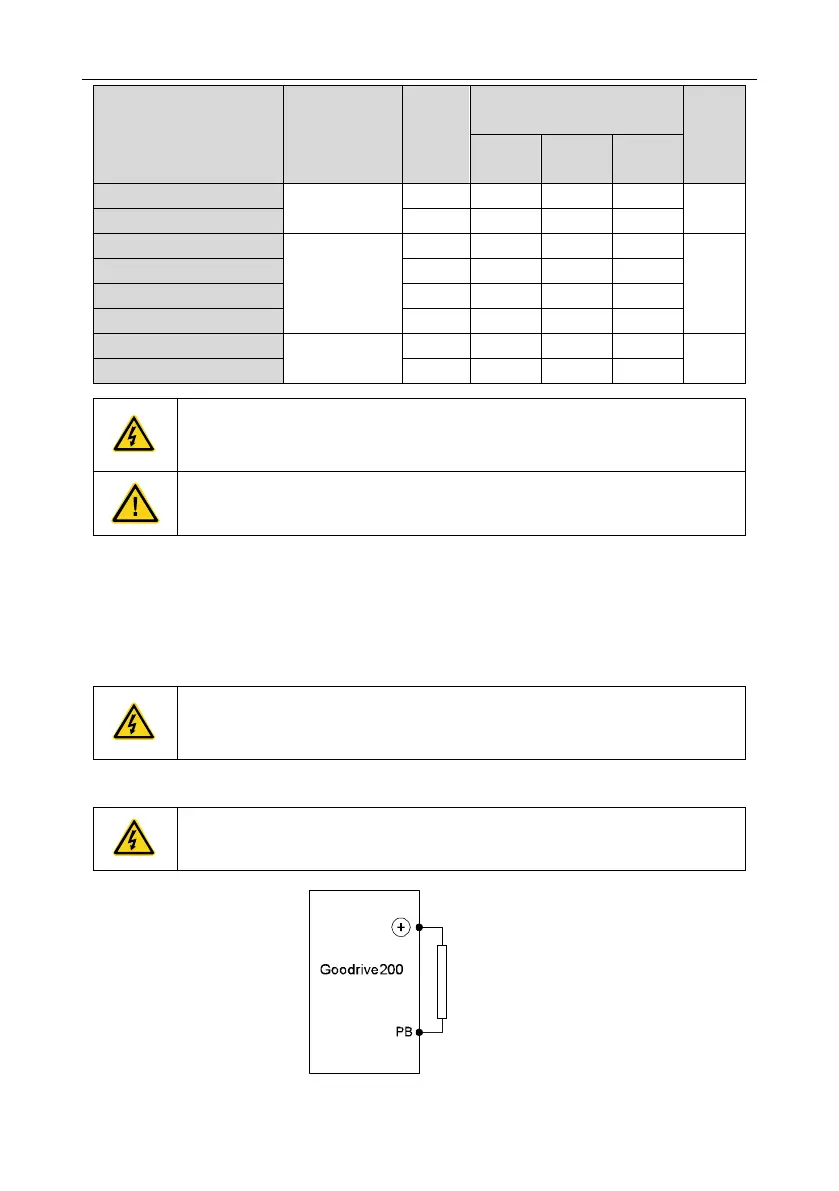

VFD model
Braking unit
type
100% of
braking
torque
(Ω)
The consumed power of the
braking resistor
Min.
Braking
Resistor
(Ω)
10%
braking
50%
braking
80%
braking
GD200A-220G/250P-4
DBU100H-400-4
2.2
33
165
264
1.8
GD200A-250G/280P-4
2.0
38
188
300
GD200A-280G/315P-4
Two
DBU100H-320-4
3.6*2
21*2
105*2
168*2
2.2*2
GD200A-315G/355P-4
3.2*2
24*2
118*2
189*2
GD200A-355G/400P-4
2.8*2
27*2
132*2
210*2
GD200A-400G-4
2.4*2
30*2
150*2
240*2
GD200A-450G-4
Two
DBU100H-400-4
2.2*2
34*2
168*2
270*2
1.8*2
GD200A-500G-4
2*2
38*2
186*2
300*2
 Never use a brake resistor with a resistance below the minimum value specified
for the particular drive. The drive and the internal chopper are not able to handle
the overcurrent caused by the low resistance.
 Increase the power of the braking resistor properly in the frequent braking
situation (the frequency usage ratio is more than 10%).
C.8.2 Select the brake resistor cables
Use a shielded cable to the resistor cable.
C.8.3 Place the brake resistor
Install all resistors in a place where they will cool.
 The materials near the brake resistor must be non-flammable. The surface
temperature of the resistor is high. Air flowing from the resistor is of hundreds of
degrees Celsius. Protect the resistor against contact.
Installation of the braking resistor:
 The 030G/037P and lower models only need external braking resistors.
 PB and (+) are the wiring terminals of the braking resistors.
External
braking
resistor
A
