INVT Goodrive200A Series User Manual

GD200A series VFD Keypad operation procedure
-30-

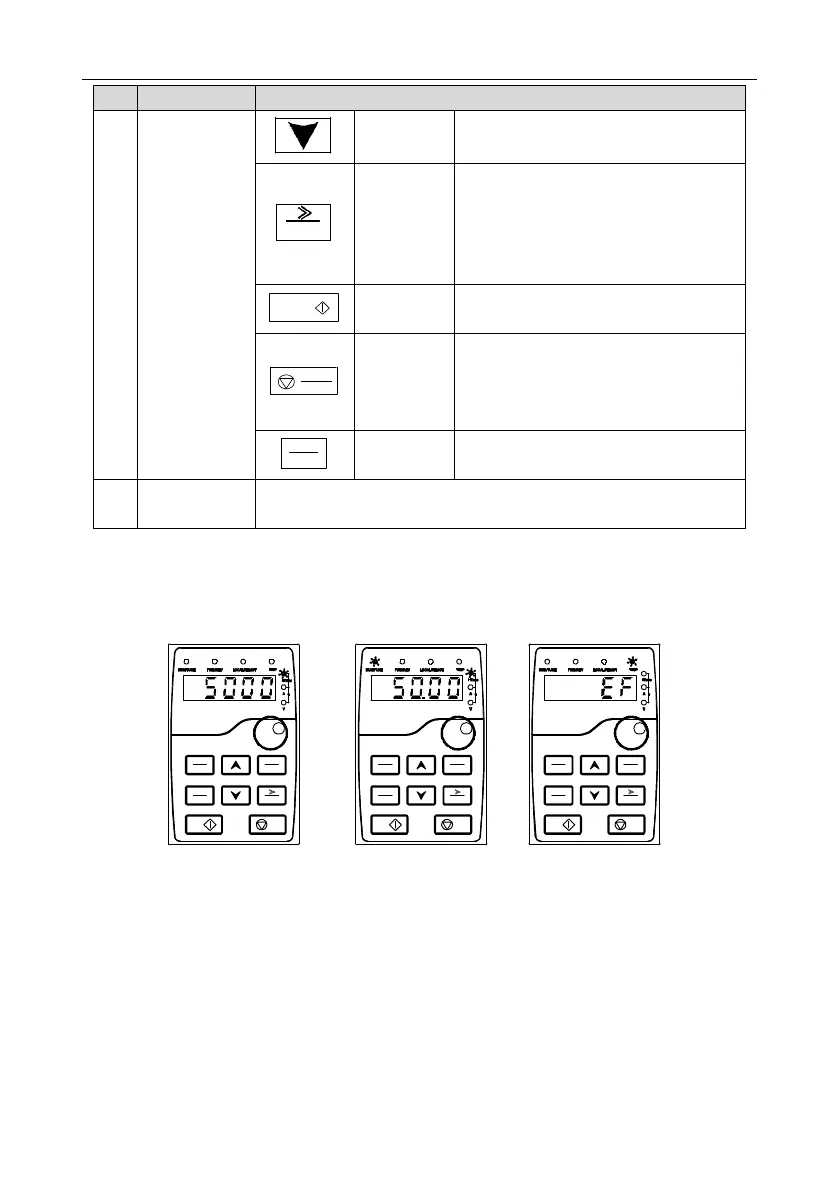

No.
Name
Description
DOWN key
Decrease data or function code
progressively
SHIFT
Right-shift
key
Move right to select the displaying
parameter circularly in stopping and
running mode.
Select the parameter modifying digit during
the parameter modification
RUN
Run key
This key is used to operate on the VFD in
keypad operation mode
STOP
RST
Stop/
Reset key
This key is used to stop in running state
and it is limited by function code P07.04
This key is used to reset all control modes
in the fault alarm state
QUICK
JOG
Quick key
The function of this key is confirmed by
function code P07.02.
6
Keypad interface
The keypad interface is standard configuration for the 015G/018P and
lower models.
5.3 Keypad displaying
The keypad displaying state of Goodrive200A series VFDs is divided into stopping state parameter,
running state parameter, function code parameter editing state and fault alarm state and so on.
PRG
ESC
DATA
ENT
SHIFT
RUN
STOP
RST
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
RUN
STOP
RST
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
RUN
STOP
RST
QUICK
JOG
Figure 5-2 Displayed state
5.4 Keypad operation
Operate the VFD via operation panel. See the detailed structure description of function codes in the
brief diagram of function codes.
5.4.1 How to modify the function codes of the VFD
The VFD has three levels menu, which are:
1. Group number of function code (first-level menu)
