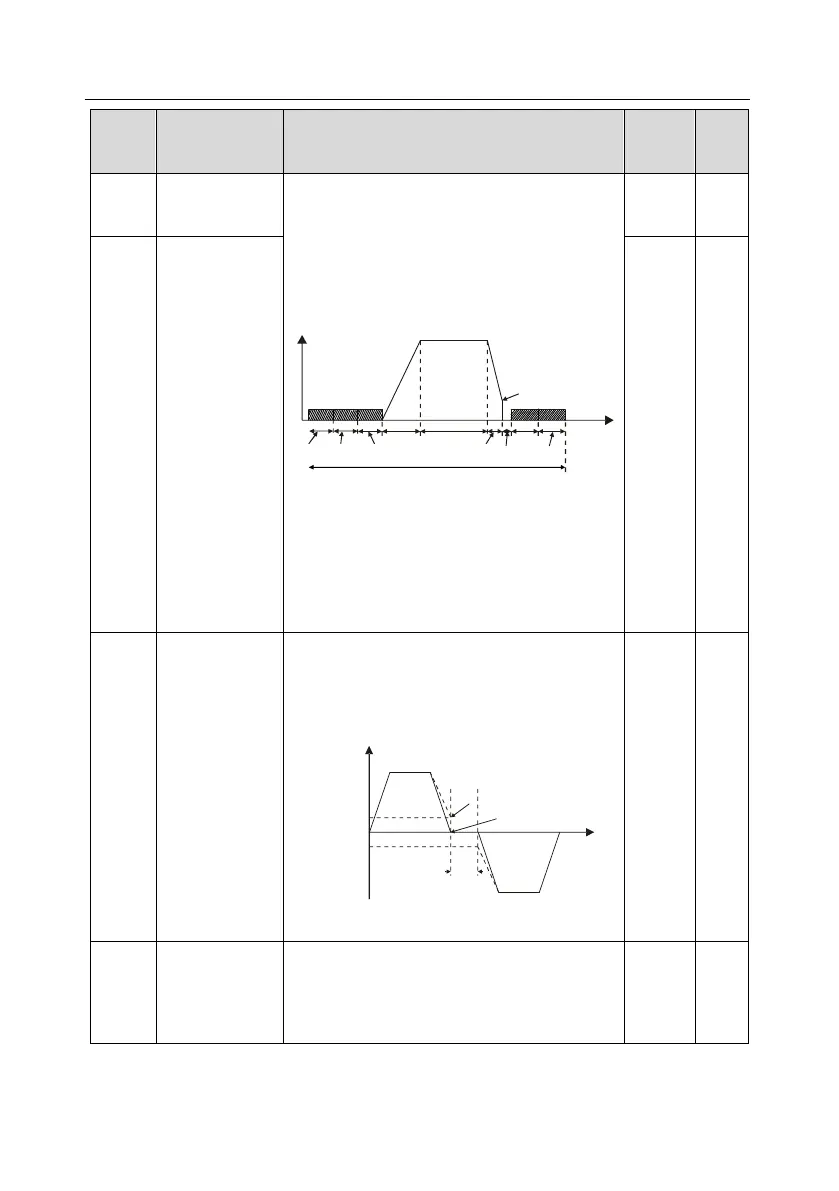

Goodrive350-19 series VFD Function parameter list
- 210 -
Function
code
Name
Description
Default
value
Modify
P01.11
DC brake current
of stop
elapses, DC brake will start. This function is used
to prevent overcurrent fault caused by DC brake
during high speed.
DC brake current after stop: it means the DC brake
force applied, the larger the current, the stronger
the DC brake effect.
P01.04
Acceleration
P13.14
P01.23
Constant speed
In running
Deceleration
P01.10
P13.15
P01.12
P01.09
Time t
Setting range of P01.09: 0.00Hz–P00.03 (Max.
output frequency)
Setting range of P01.10: 0.00–30.00s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.0–50.0s
0.0%
â—‹
P01.12
DC brake time of
stop
0.00s
â—‹
P01.13
Deadzone time of
forward/reverse
rotation
This function code refers to the transition time of
the threshold set by P01.14 during setting
forward/reverse rotation of the VFD, as shown
below.
Output frequency f
Forward
Reverse
Deadzone
time
Time t
Starting
frequency
Switch over after
zero frequency
Switch over after
starting frequency
Setting range: 0.0–3600.0s
0.0s
â—‹
P01.14
Forward/reverse
rotation
switch-over mode
0: Switch over after zero frequency
1: Switch over after starting frequency
2: Switch over after passing stop speed and delay
1
â—Ž
