4.3.2 Main circuit terminal diagram

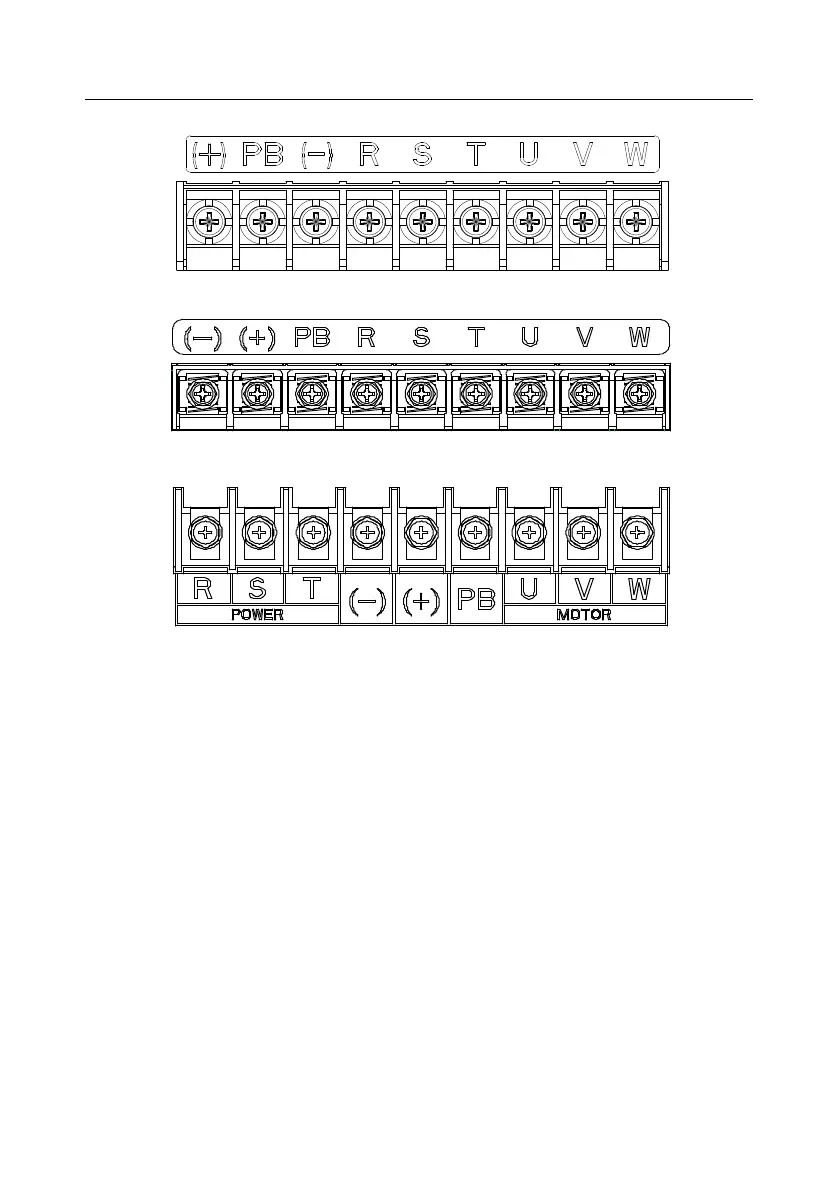

Figure 4.9 Main circuit terminal diagram for 3PH 380V 22kW and lower VFD models
Figure 4.10 Main circuit terminal diagram for 3PH 380V 30–37kW VFD models
Figure 4.11 Main circuit terminal diagram for 3PH 380V 45–110kW VFD models
