The steps to access the grid are as follows:
(1)Lighting, short-circuit and other protection measures which meet the local electrical safety
laws and regulations are needed before the AC connection.
Only qualified cables under the local electrical safety laws and regulations
and comply with the technical parameters of this manual are allowed to
connect to the inverter.
Only with the permission of the local electric power company can the inverter be
connected to the utility grid.

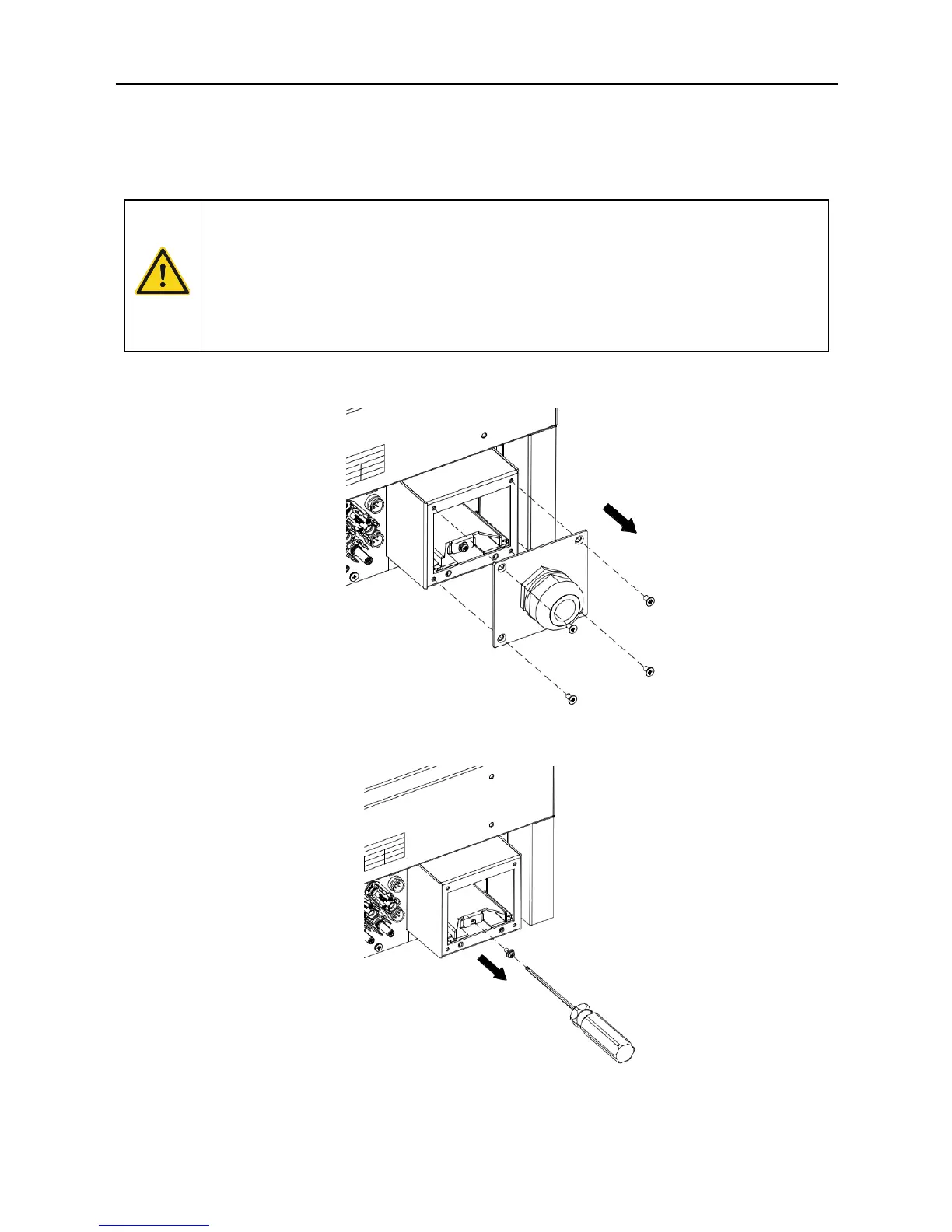

(2) Disassemble the waterproof cover of the three-phase inverter AC junction box, as shown in
Figure 4.17.
Figure 4.17 Unpacking the waterproof cover
(3) Remove the fixing screws of AC terminal rail, as shown in Figure 4.18.
Figure 4.18 Remove fixing screws of the rail
(4) Pull out the AC terminal rail as shown in Figure 4.19.
