3.3 LBK-S01 sensors
3.3.1 Functions
The sensors perform the following functions:
l Detect motion in their field of view.
l Send the motion detection signal to the control unit through CAN bus.
l Signal to the control unit through CAN bus the failures or faults detected on the sensor during diagnostics.

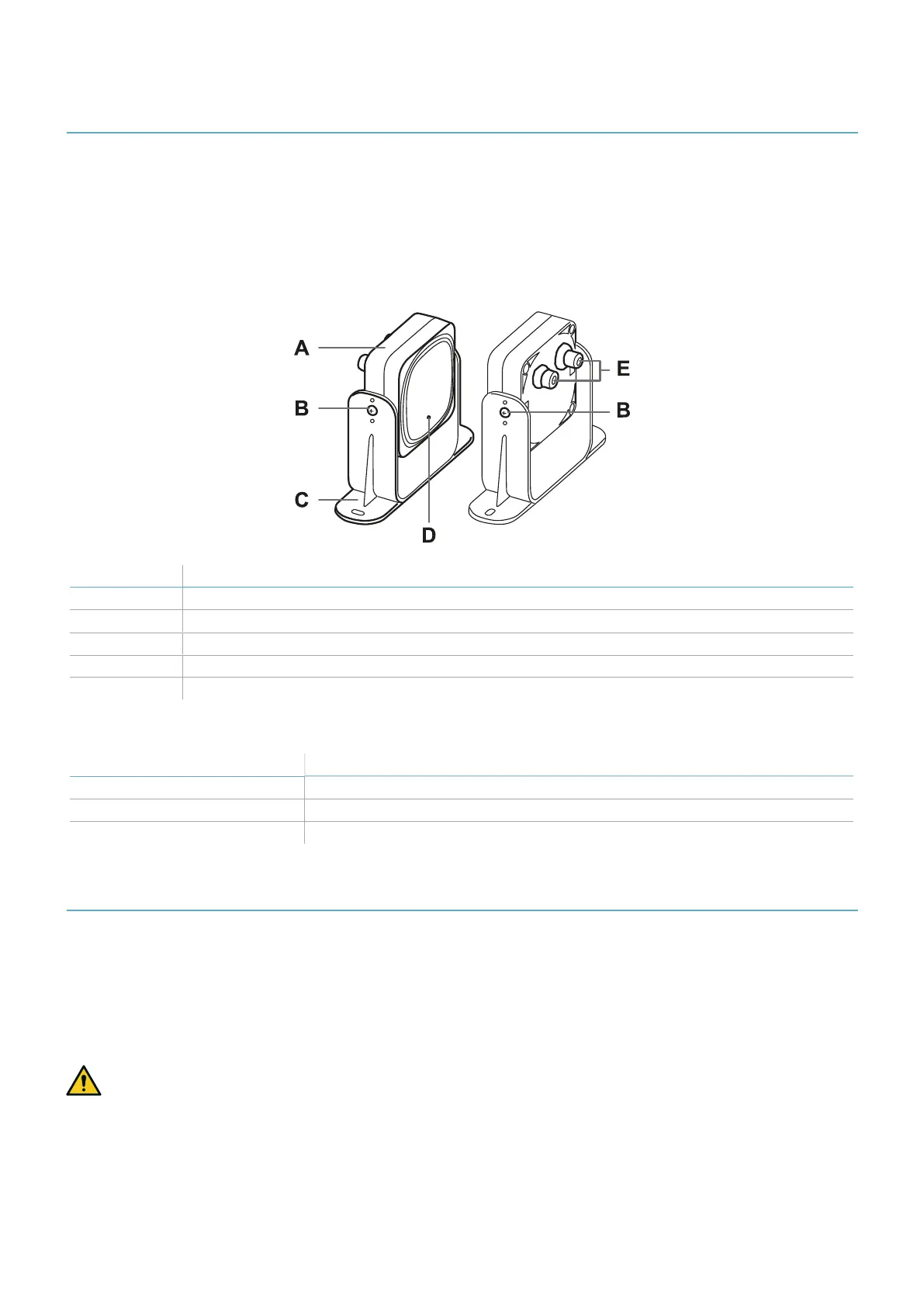

3.3.2 Structure
Part Description
A Sensor
B Screws for fastening the sensor at a specific inclination
C Perforated bracket for installing the sensor on the ground or on the wall
D Status LED
E Connectors for connecting the sensors in a chain and to the control unit
3.3.3 Status LED
Status Meaning
Steady on Sensor is working. No motion detected.
Rapid flashing on (100 ms) Sensor is detecting motion. Not available if the sensor is in muting.
Other conditions Error. See "Sensor LED" on page75
3.4 Inxpect Safety application
3.4.1 Functions
The application permits the following main functions to be performed:
l Configure the system.
l Create the configuration report.
l Check system functioning.
l Download system log.
WARNING! The Inxpect Safety application is designed only for the system configuration and for its
first validation. If the application is used for monitoring the system continuously during the regular
operation of the machinery, the system response time cannot be guaranteed. Use the application
only for the functions for which it has been designed.
