Inxpect LBK Series User Manual

8.3.9 Multi-control unit Synchronization

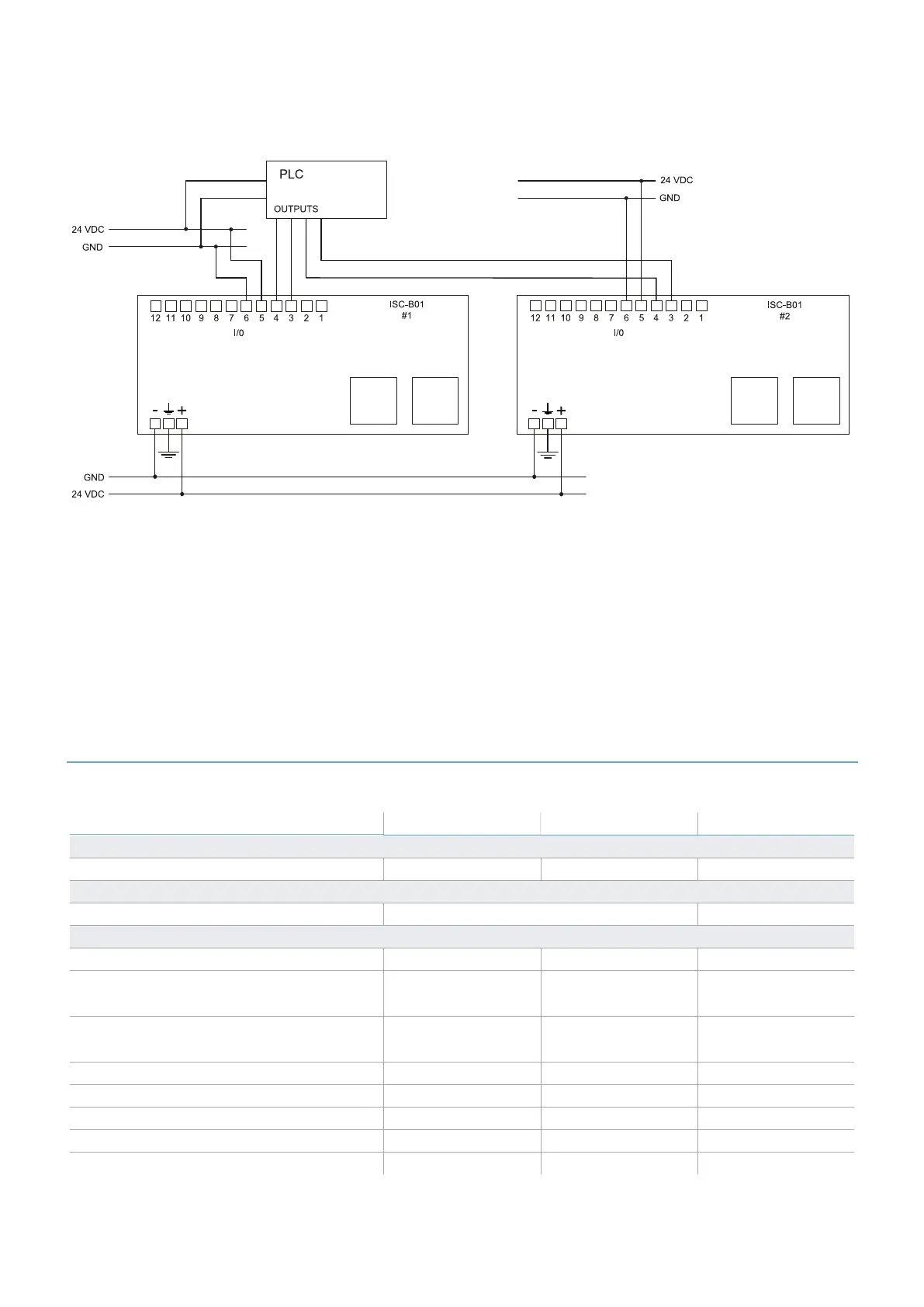

Example with two ISC-B01 control units.
Nota: only if the Inxpect Safety application supports the function.
Digital I/Osettings (through the Inxpect Safetyapplication)
Control unit #1
l Control unit channel 0
l Digital input #1 Acquisition Trigger
Control unit #2
l Control unit channel 1
l Digital input #1 Acquisition Trigger
8.4 Parameters
8.4.1 Parameter list
Parameter Min Max Default value
Settings > Account
Password - - Not available
Settings > General
Operational frequency Full BW, Restricted BW Full BW
Configuration
Number of installed sensors 1 6 1
Plane Dim. X: 1000 mm
Dim. Y: 1000 mm
Dim. X: 20000 mm
Dim. Y: 65000 mm
Dim. X: 8000 mm
Dim. Y: 4000 mm
Position (for each sensor) X: 0 mm
Y: 0 mm
X: 65000 mm
Y: 65000 mm
X: 1000 mm
Y: 1000 mm
Rotation (for each sensor) 0° 359° 0°
Inclination (for each sensor) -90° 90° 0°
Sensor installation height (for each sensor) 0 mm 10000 mm 0 mm
Detection Distance 1(for each sensor) 0 mm 4000 mm 1000 mm
Detection Distance 2 (for each sensor) 0 mm 3000 mm 0 mm
8. Technical references
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
99
