8. Technical references

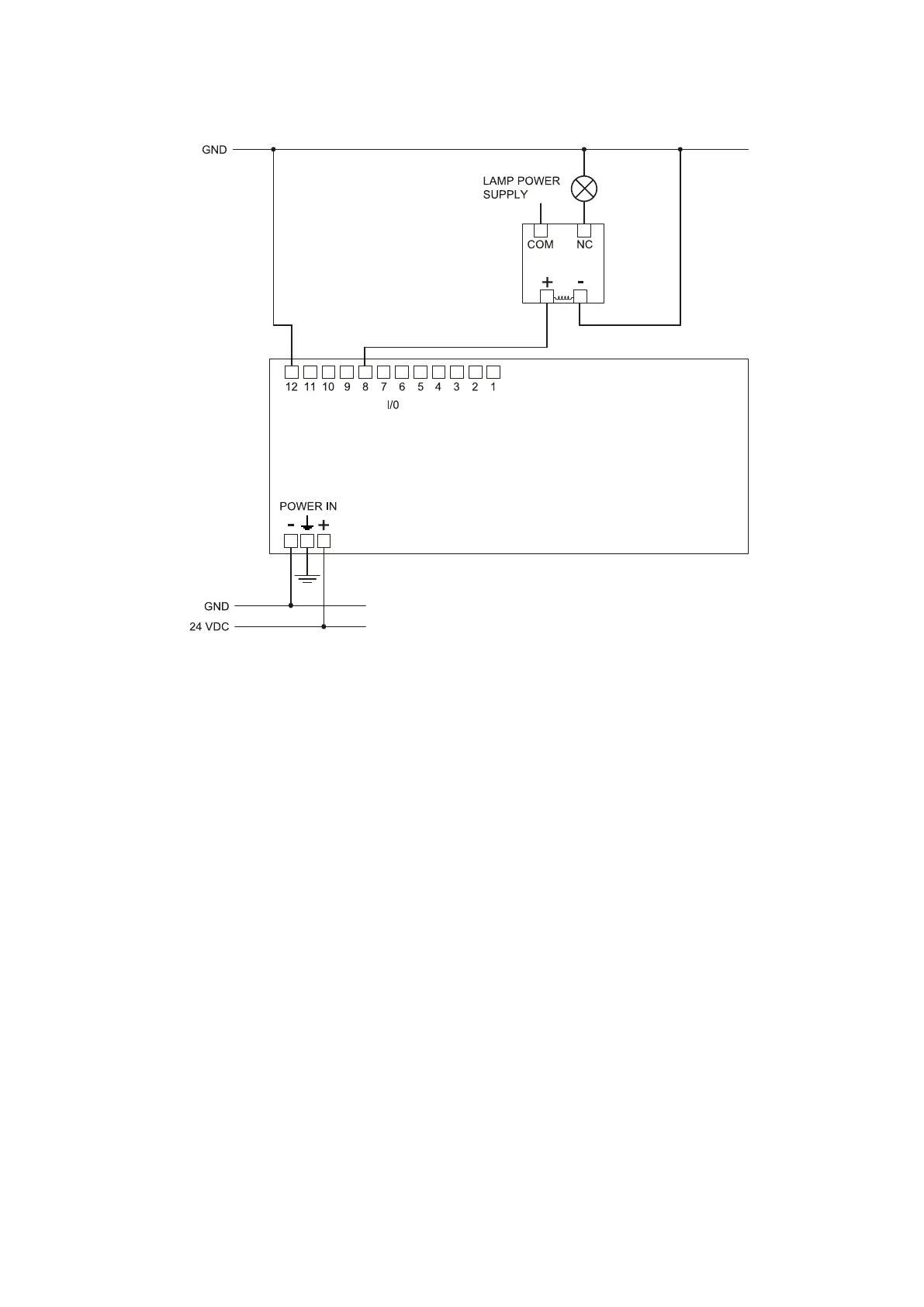

8.3.8 Diagnostic output connection
Note: the indicated light turns on in the presence of a failure.
Digital I/Osettings (through the Inxpect Safety application)
Digital input #1 Not configured
Digital input #2 Not configured
Digital output #1 Not configured
Digital output #2 Not configured
Digital output #3 Not configured
Digital output #4 System diagnostic signal
