Example 3
The combination is the following:
l Detection field 1: Always access detection
l Detection field 2: Always access detection

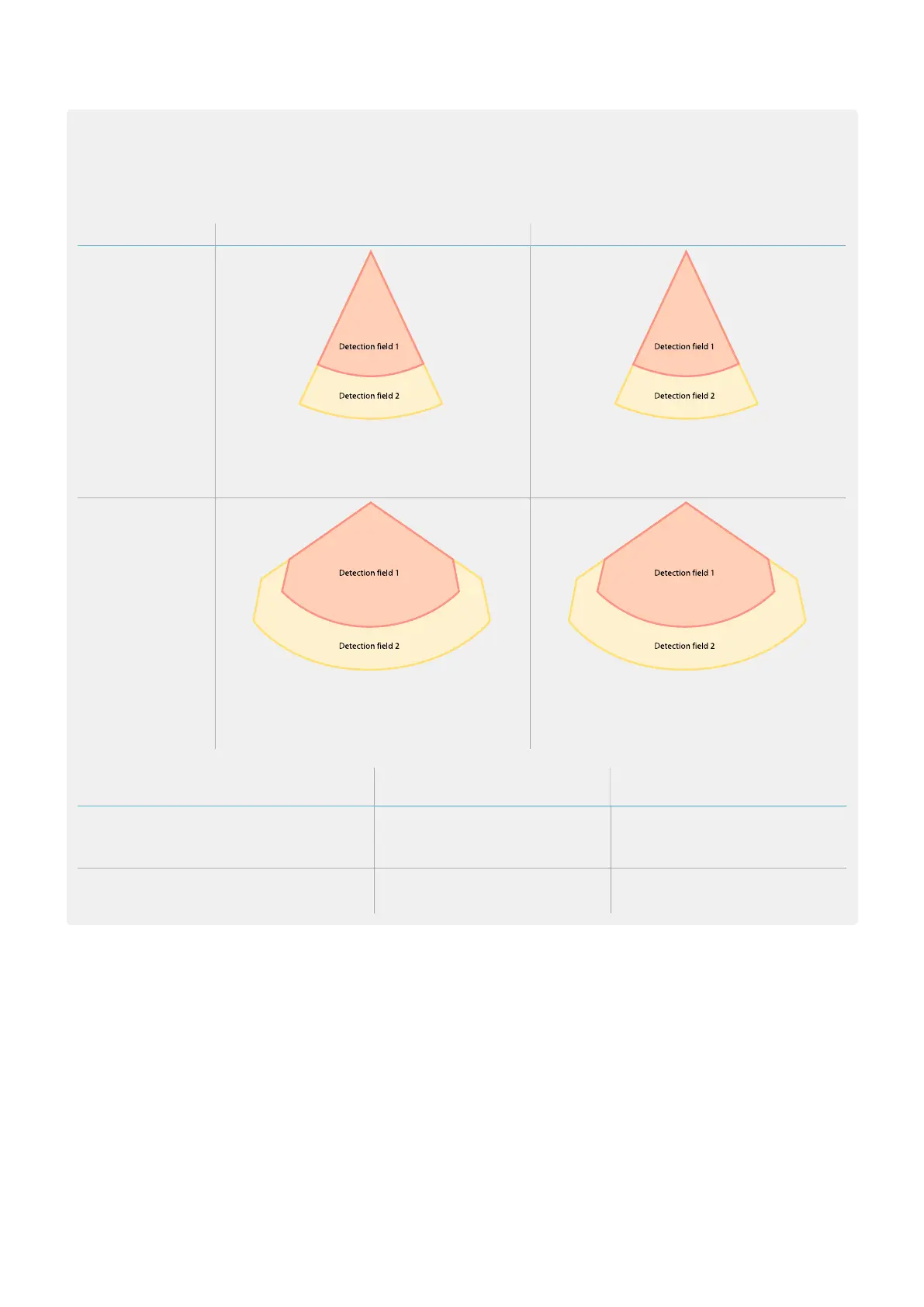

Angular coverage No alarm status Alarm status
50°
l Detection field 1: access detection
function
l Detection field 2: access detection
function
l Detection field 1: access detection
function
l Detection field 2: access detection
function
110°
l Detection field 1: access detection
function
l Detection field 2: access detection
function
l Detection field 1: access detection
function
l Detection field 2: access detection
function
If the motion is detected in the...
Then the output of detection
field 1...
And the output of detection
field 2...
detection field 1

is deactivated and remains in
the access detection function

is deactivated and remains in
the access detection function

detection field 2

remains active and in the access
detection function
is deactivated and remains in
the access detection function
4. Functioning principles
