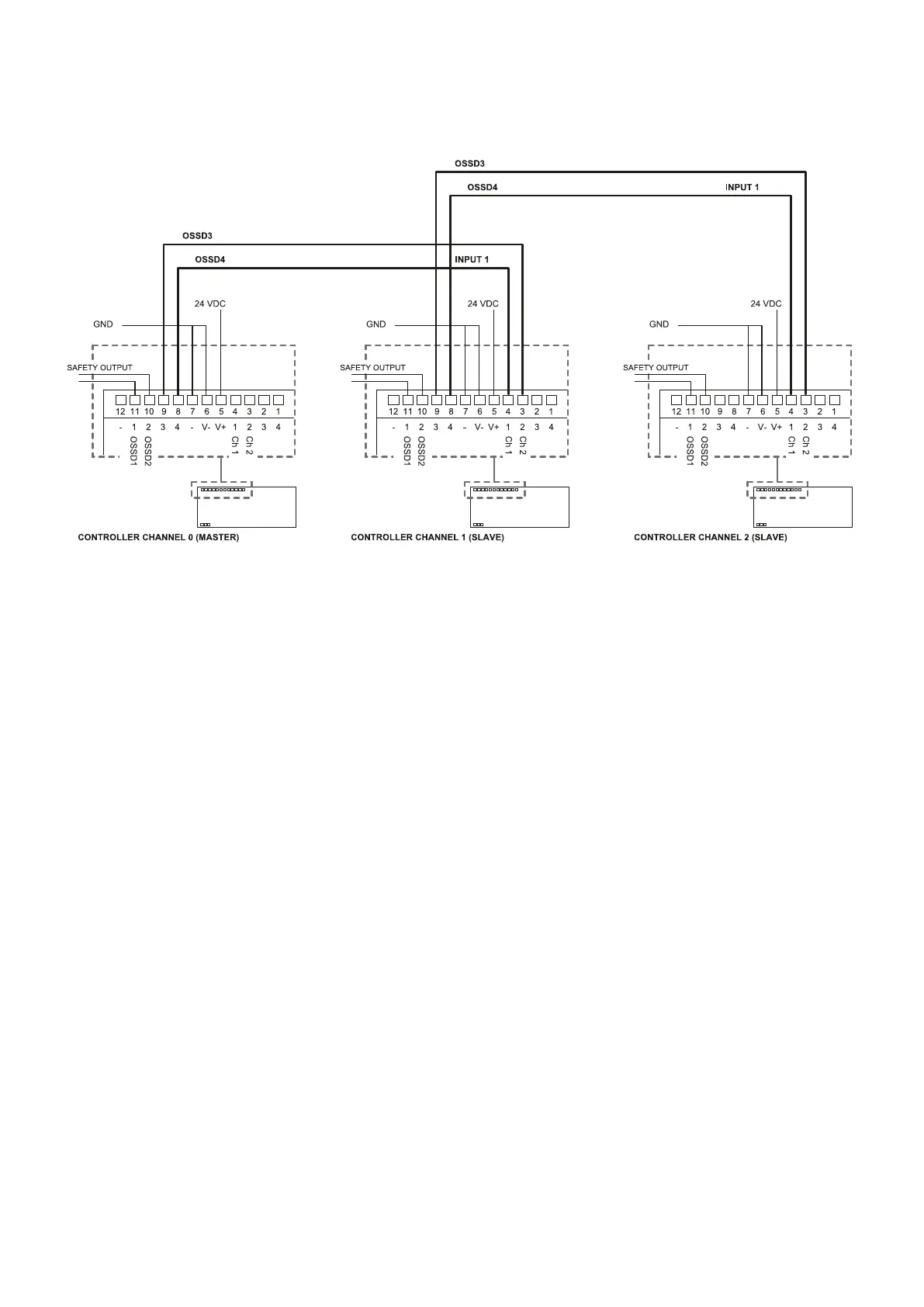

Daisy chain (linear) example
Internal trigger source (control unit Master) + 2 control units (Slaves)
In this example:
l Control unit channel 0 (Master) has OSSD3 and OSSD4 configured as Acquisition Trigger.
l Control unit channel 1 (Slave) has OSSD3 and OSSD4 configured as Acquisition Trigger, and Digital Input 1
configured as Acquisition Trigger.
l Control unit channel 2 (Slave) has Digital Input 1 configured as Acquisition Trigger.
4. Functioning principles
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
51
