Maintenance

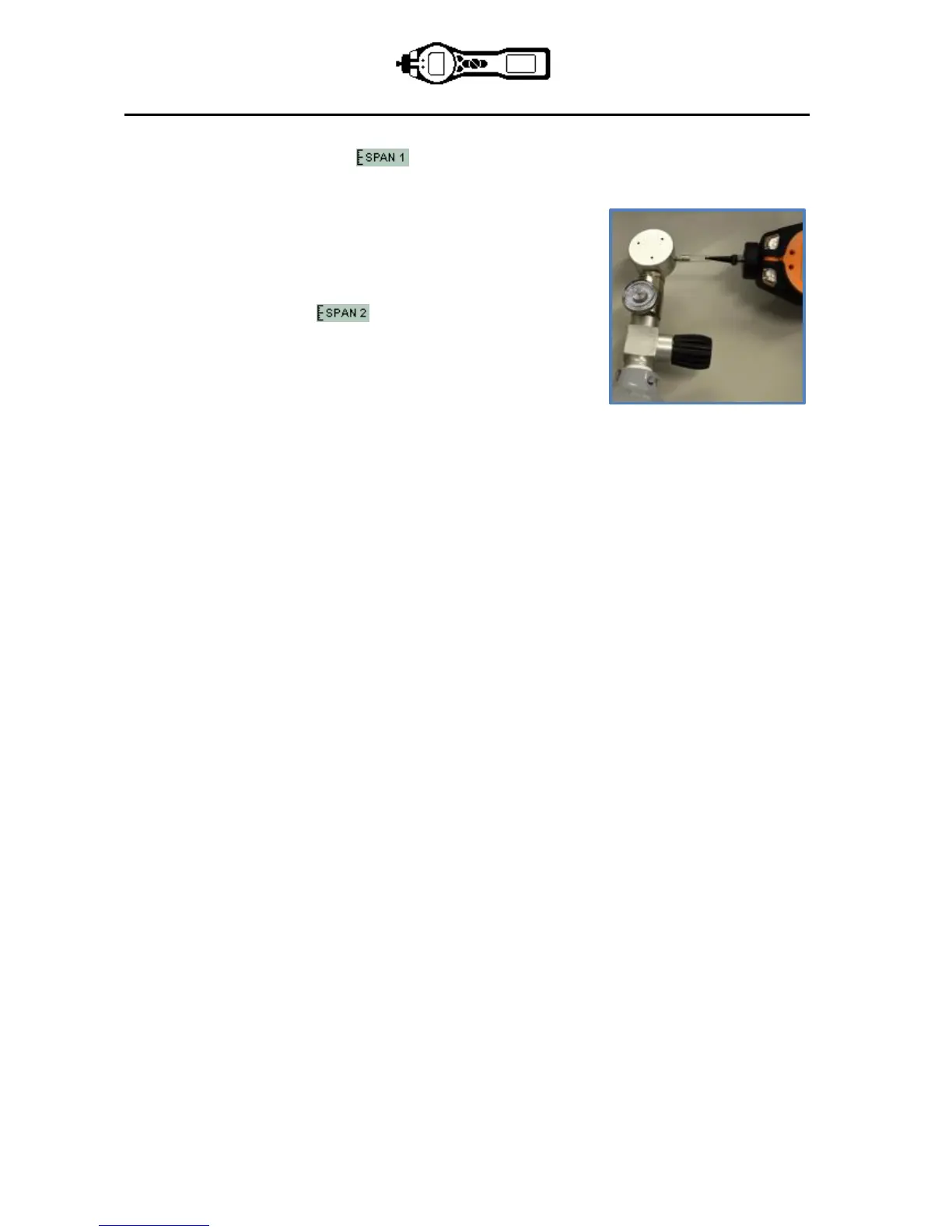

Press Enter again and the gas and concentration for Span 1 (previously set up in TIGER PC) are displayed
along with a 15 second countdown. Attach the ‘Span 1’ gas using the Calibration Adaptor (861476)
supplied in the Accessory Box (A-861267) (see ’Accessories’) and press Enter to start the Span 1
countdown.
At the end of the count down a tick '✓' will appear, indicating that the
Span 1 has been accepted. For two-point calibration, press Enter
and the calibration is complete.
For three-point calibration, press Enter to display the gas and
concentration for Span 2 (previously set up in TIGER PC) along
with a 15 second countdown. Attach the ‘Span 2’ gas and
press Enter to start the Span 2 countdown. At the end of the count
down a tick '✓' will appear, indicating that the Span 2 has been
accepted.
Press Enter again and the calibration is complete.
Inlet Probe assembly
All component parts of the probe assembly can be replaced if they
become damages or contaminated with use. Ion Science recommend
using this design of probe as it offers improved performace. A probe
upgarde kit is availabe (Part number: A-880214) that is compatible
with all Tiger instruments.
PTFE Filter Disc (861221)
The Filter Disc should be changed after every 100 hours of use. This
frequency should be increased for dusty or moisture laden
environments. or whenever the filter appears ‘dirty’ when viewed
through the transparent upper surface of the Filter Clamp.
Filter Disc changing should be conducted in a suitably clean environment, with clean hands and equipment
to avoid contamination of the new Filter Disc.
To change the Filter Disc, unscrew the Filter Housing Cap, lift off the Filter Clamp and O-Ring and lift the
Filter Disc from the Instrument Body. Carefully place a new Filter Disc into the Instrument Body. (Under no
circumstances should a Filter Disc be used once it has been removed.) Replace the Filter Clamp,
ensuring the locating lugs are correctly positioned in the cut-outs in the Instrument Body and that the O-Ring
is correctly seated. Replace the Filter Housing Cap. Do not over-tighten.
