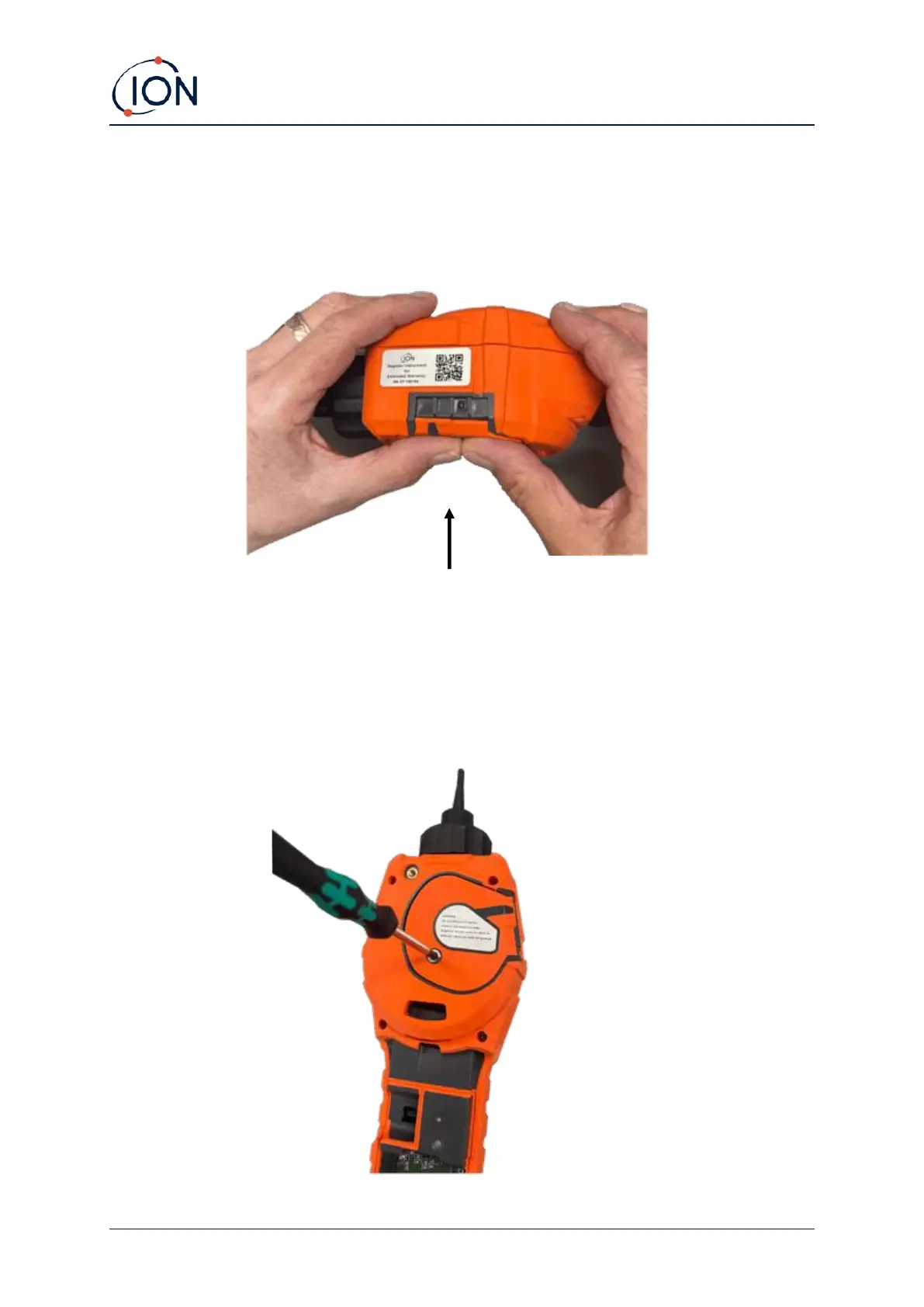

To refit the sensor cover to the instrument body, line up the sensor cover with the back of the
instrument ensuring it is align with the inlet/outlet ports. Gently push the right side of the sensor
cover and the instrument body together until you hear and feel it is engaged.
Once you hear it has engaged, push the rest of the sensor cover to the instrument body and screw
the bottom left hand screw into place using the 3mm A/F allen key.
