STEP 6. Install Counterweight(s) and Telescope
Before putting on CW, make sure the mount is at its zero position, i.e., CW shaft points to the
ground. Disengage the R.A. Gear Switch and insert the Allen wrench to lock the RA axis before
loading the CW. Remove the CW Safety Cap at the end of CW Shaft. Glide the CW over the shaft with
the larger hole opening facing down. Tighten the CW Locking Screw to hold the CW in place. Place the
Safety Cap back onto the shaft. Move the CW to the bottom of the shaft and tighten the CW locking Screw.

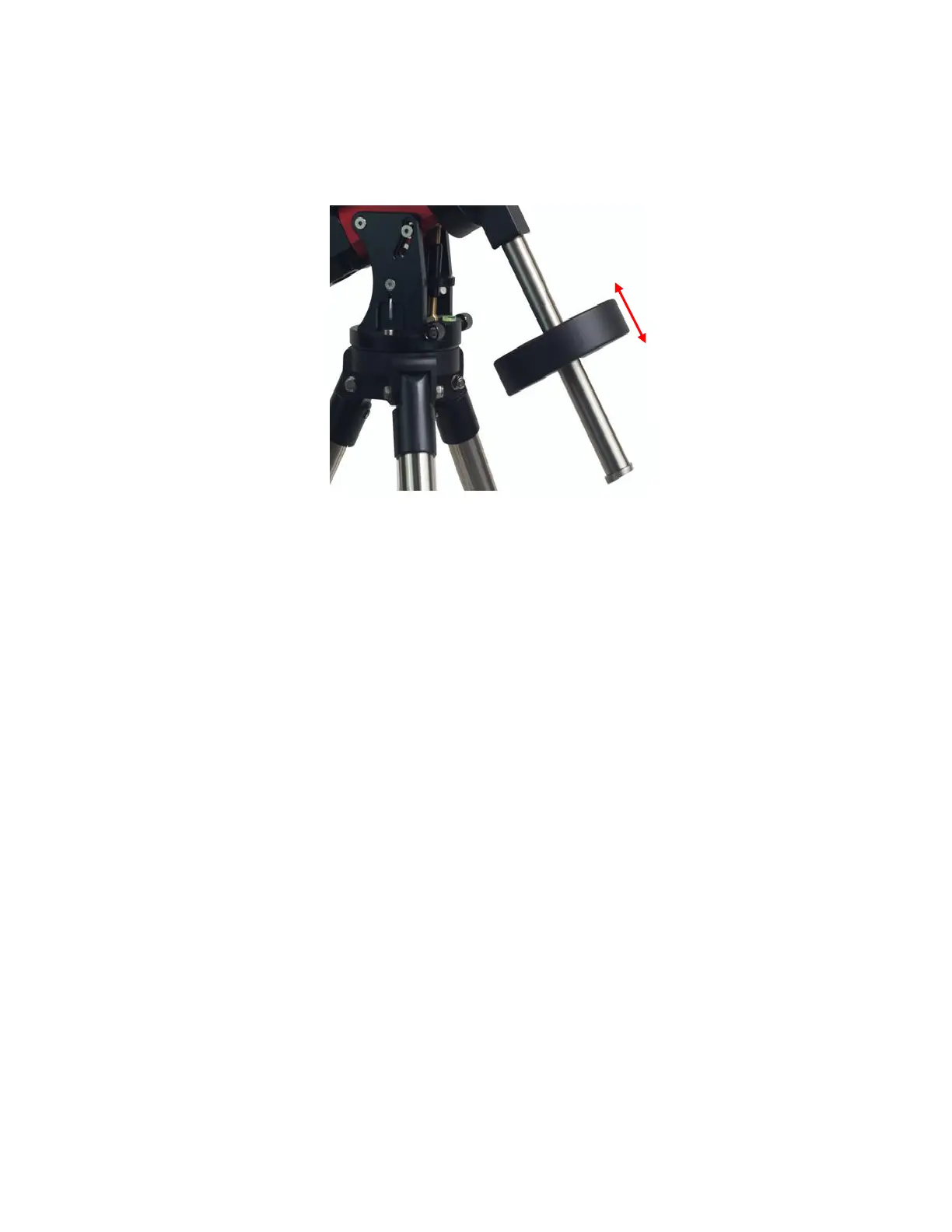

Figure 22. Install Counterweight
You may need more CW for heavier payloads, or a smaller CW for lighter scopes.
CEM40 is equipped with a Vixen/Losmandy-D dual saddle. It can receive either a Vixen or a
Losmandy-D plate. Release the dovetail saddle locking knobs and slide the telescope dovetail plate into the
saddle. Tighten the saddle locking knobs.
STEP 7. Balance the Payload
Before mounting an OTA, make sure the arrow on dovetail saddle is facing front. If it is not,
release DEC gear switch and rotate dovetail saddle.
After attaching the scope and accessories, the mount head assembly must be balanced in both DEC
and RA axes to ensure minimum stresses on the mount driving mechanism.
CAUTION: The telescope may swing freely when the R.A. or DEC Gear Switch is disengaged.
Always hold on to the mount and/or telescope assembly before releasing the Gear Switches to
prevent it from swinging, which can cause personal injuries and/or equipment damages.
Set the mount at Zero Position. Disengage both RA and DEC gear switches and move the mount to
horizontal position to check balance. Return to Zero Position for balance adjustment. Balance the DEC axis
by moving the scope with accessories back and forth in the mount saddle or within the scope mounting
rings. Balance the assembly in R.A. axis by moving CW along its shaft. Repeat the process until both DEC
and RA axes are balanced.
CAUTION: The balancing process MUST be done with Gear Switch at the total disengaged position!
Otherwise it might damage the worm system.

iOptron CEM40 Specifications

General

Mount	Center-balanced Equatorial Mount (CEM)
Structure Material	All metal, CNC machined
Exterior finish	Anodized red/black
Level indicator	Level bubble
Dovetail saddle	8" Losmandy D & Vixen
Hand Controller	Go2Nova® HC, 212, 000 objects database, star recognition
Cable management	Yes
Tripod	LiteRoc 1.75" Stainless Steel(7kg), optional tri-pier
Max payload*	40 lb (18kg), exclude counterweight
Payload/Mount weight ratio	2.28:1
PEC	PPEC/Real time PEC
Tracking accuracy (PE)**	<±7.5 arcsec p-p (CEM40, CEM40G), or <0.3 arcsec RMS (CEM40EC)
Motor resolution	0.08 arc seconds
Slew speed	1×, 2×, 8×, 16×, 64×, 128×, 256×, 512×, MAX(~4.5°/sec)
Latitude adjustment range	0°~ 60° (special CW shaft mounting if <10° )
Azimuth adjustment range	± 6°
Operation temperature	-10°C ~ +40°C
Right Ascension worm wheel	Φ110mm, 216 teeth aluminum
Declination worm wheel	Φ110mm, 216 teeth aluminum
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11 lb (5 kg) X1
Motor drive	Precision stepper motor, 1.8º/128X micro-step
Meridian treatment	Stop (0-14° pass), auto flip
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power requirement	12V DC 5A
AC adapter	100V ~ 240V (included, indoor use only)
Polar Scope	Internal iPolarTM electronic polar scope
GPS	Yes
WIFI	External (optional)
Guiding scope/camera	Built in guiding scope and camera, iGuiderTM (CEM40G)
Autoguide port	ST-4
Communication port	USB Port (on mount)
PC computer control	Yes (ASCOM)
Warranty	Two year limited

Weight and Dimensions

Mount weight	17.4 lb (7.9kg)
Mount base size	Φ120 mm
