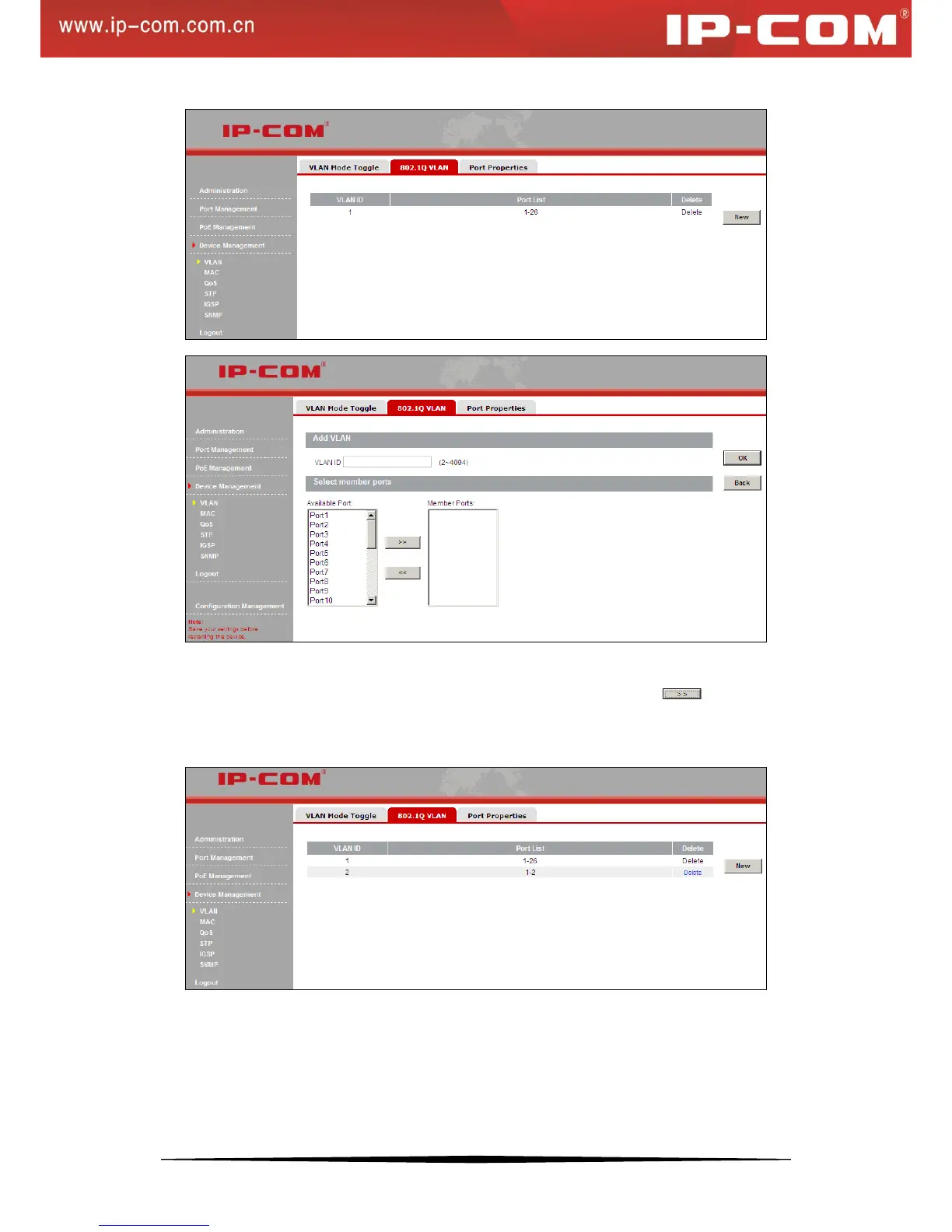

2) Specify a VLAN ID between 2~4094.
3) Select the ports you wish to add to the VLAN from Available Port box and click to move them to the
Member Ports box. You can press the Ctrl key or Shift key on your keyboard to select multiple ports
4) Click OK and a screen similar to the below will appear.
To change 802.1Q VLAN member ports
As seen on the screen above, to change member ports of the 802.1Q VLAN 2 to port 2 and port 3, follow
instructions below.
1) Click VLAN2 to enter the screen below and select port 1 from the Member Ports box.
