iPA ALPHA MUTT - Control Panel

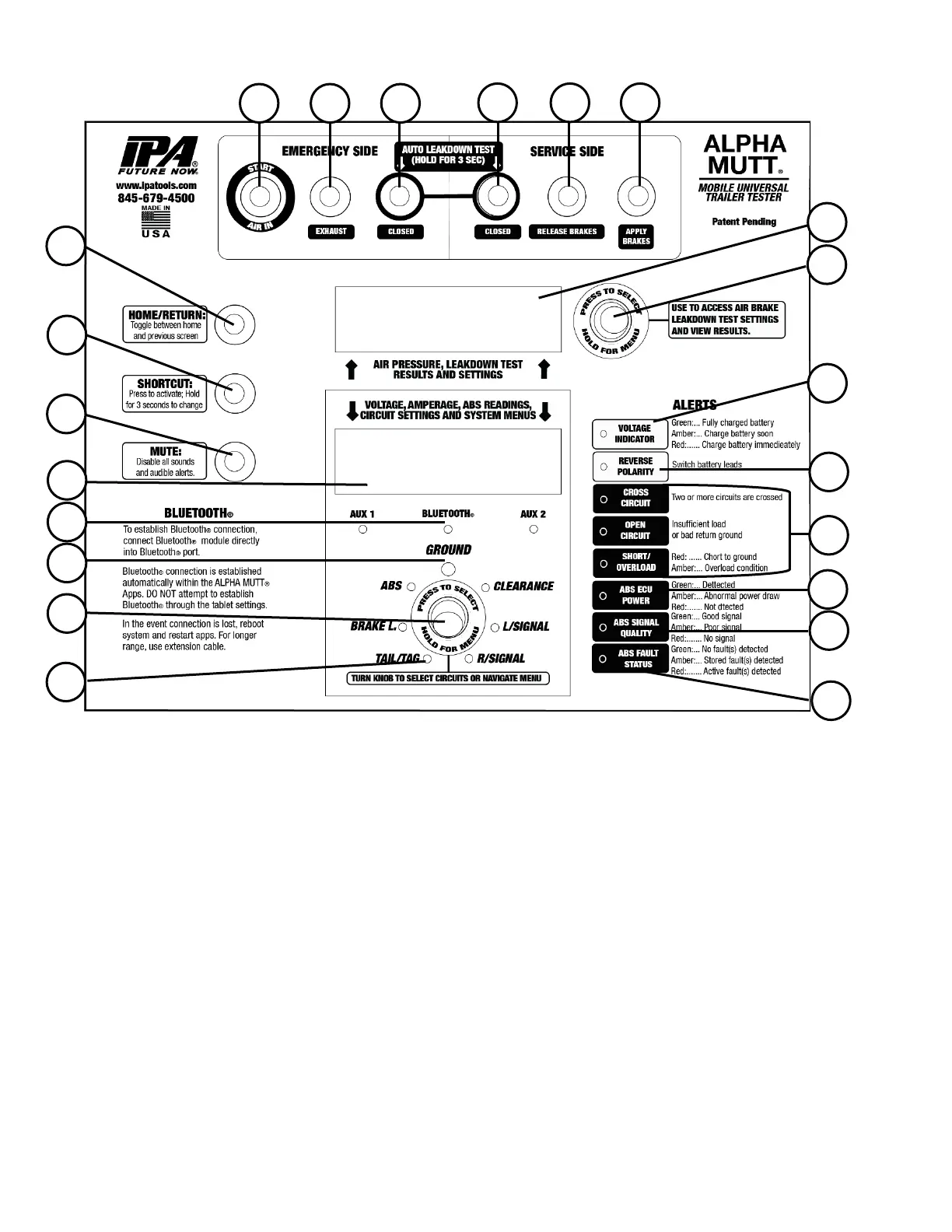

5.2 Control Panel
A. Start/Air In Button
Initiates Emergency-Side air and enables additional air operation functionality. PSI readings
will not display until this button is pressed.
B. Emergency-Side Exhaust Button
Exhausts all air pressure in both the Emergency and Service sides.
C. Emergency-Side Closed Button
Closes Emergency-Side air. Can be used to initiate Auto Leakdown test when pressed
simultaneously with the Service-Side Closed button.
D. Service-Side Closed Button
Closes Service-Side air. Can be used to initiate Auto Leakdown test when pressed with
Emergency-Side Closed button.
E. Service-Side Release Brakes Button
Exhausts air and releases brakes.
F. Service-Side Apply Brakes Button
Initiates Service-Side air and applies brakes.
G. Home/Return Button
Toggles displays between reading voltage/current/amperage/air pressure and their last
viewed menus or function screen.
