IPC CT80 - Squeegee and Brush Installation

GB
Squeegee installation and adjustment
Switch the machine on, lower the squeegee by pressing the suction motor button.

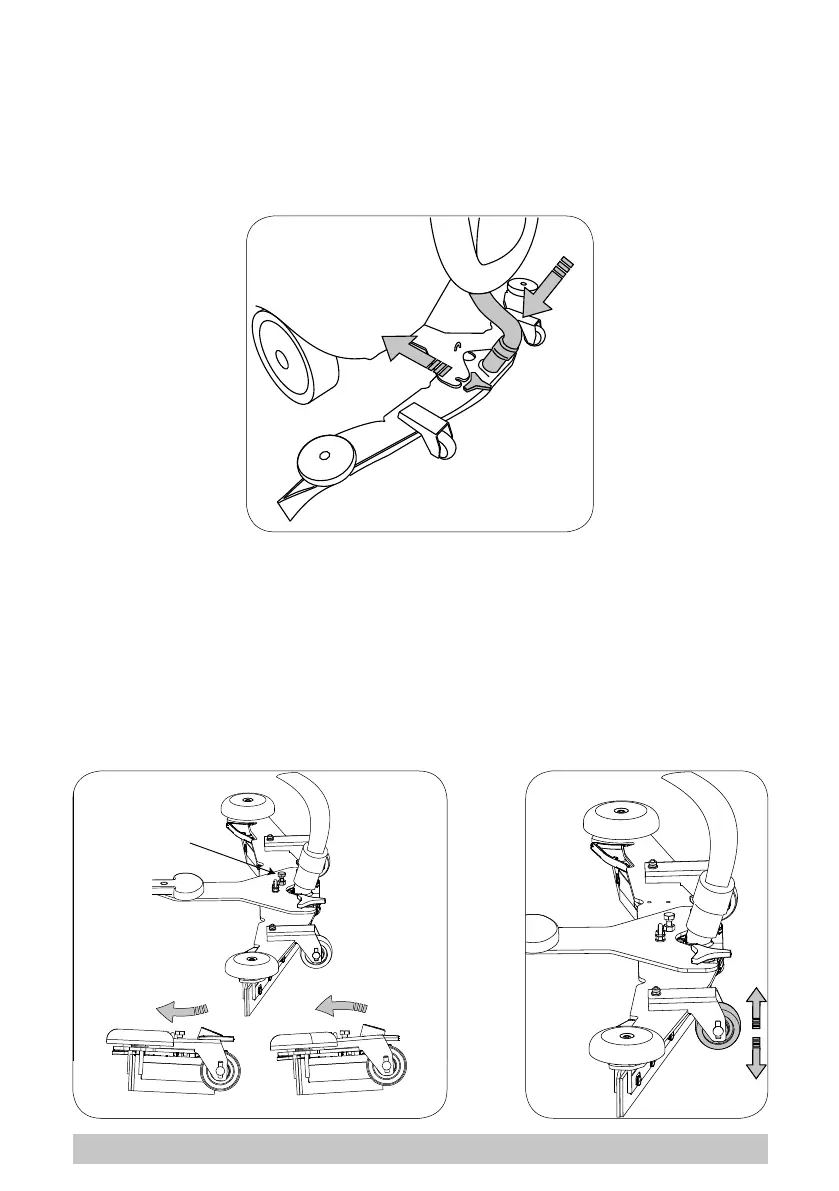

Place the squeegee in the slots provided on the support (g. 4), then tighten the fastening knobs
and insert the suction hose.
Squeegee adjustment
The squeegee blades scrape the lm of water and detergent from the oor and prepare the way
for perfect drying. With time, the constant rubbing makes the edge of the blade in contact with the
oor rounded and cracked, reducing the drying e󰀩ciency and requiring it to be replaced. The state
of wear should be checked frequently.
For perfect drying, the squeegee must be adjusted in such a way that the edge of the rear blade
bends during operation by about 45° with respect to the oor at every point. The angle of the blades
can be adjusted using the screw (g. 5, ref. 1), while the height of the squeegee from the oor can
be adjusted by changing the height of the two wheels (g. 6).
