IsoMatic 500 - Integrated Radio Receiver; Operation

TR10K009 RE / 02.2016
79
6.1 Using the hand transmitter
The hand transmitter works with a rolling code that changes
with each sending procedure. Each hand transmitter button
isassigned to a rolling code.
To control a receiver, you must teach in the desired hand
transmitter button (see section4.4 or the instructions
ofthereceiver).
6.1.1 Control elements
▶
See Figure9a / 9b
1 LED
2 Hand transmitter buttons
3 Battery (type C2025, 3VLi)
6.1.2 LED displays
LED
illuminated
The rolling code is transmitted
LED
flashing
The battery is almost empty.
The battery should be replaced soon.
LED is not
responding
The hand transmitter is not functioning.
ō Check whether the battery has been
inserted correctly.
ō The battery is empty and must be
replaced immediately.
6.2 Excerpt from the declaration of conformity
Conformity of the abovementioned product with the
requirements of the directives according to article 3 of the
R&TTE directives 1999/5/EC was verified by compliance with
the following standards:
ō EN 300 220-2
ō EN 301 489-3
ō EN50371
ō EN 60950-1
The original declaration of conformity can be requested from
the manufacturer.
7 Integrated radio receiver
The garage door operator is equipped with an integrated radio
receiver. It can only be taught in or deleted when the operator
is at a standstill.
A maximum of 6 different hand transmitter buttons can be
taught in. If more are taught in, the first one will be deleted
without advance warning.
In the delivery condition all memory spaces are empty.

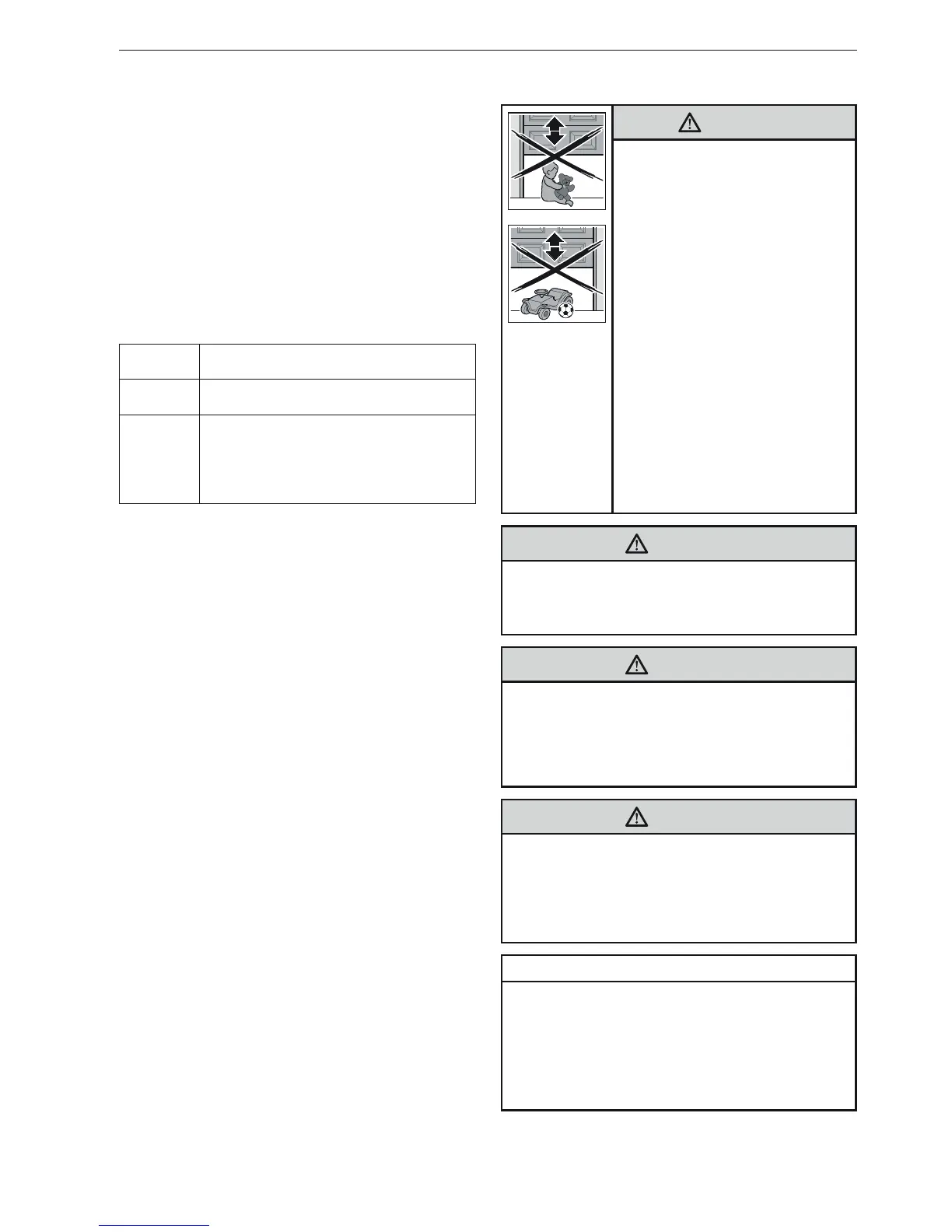

8 Operation
WARNING
Danger of injury during door travel
If people or objects are in the area
around the door while the door is in
motion, this can lead to injuries or
damage.
▶
Make sure that children are not
playing near the door system.
▶
Make sure that no persons or
objects are in the door’s area of
travel.
▶
If the door system has only one
safety feature, only operate the
garage door operator if you are
within sight of the door’s area of
travel.
▶
Monitor the door travel until the
door has reached the end-of-travel
position.
▶
Only drive or pass through remote-
control door systems when the door
is at a standstill!
▶
Never stay standing under the
opendoor.
CAUTION
Danger of crushing in the boom
Do not reach into the boom with your fingers during door
travel, as this can cause crushing.
▶
Do not reach into the boom during door travel.
CAUTION
Danger of injury from the cord knob
If you hang on the cord knob, you may fall and injure
yourself. The operator could break away and injure persons
or damage objects that are located underneath. The
operator itself can be destroyed.
▶
Do not hang on the cord knob with your body weight.
CAUTION
Danger of injuries due to the hot lamp
Touching the lamp during or immediately following operation
can lead to burns.
▶
Do not touch lamps
– that are switched on
– immediately after the lamp was switched on.
ATTENTION
Damage due to the cord of the mechanical release
If the cable of the mechanical release becomes caught, e.g.
ō on a roof carrier system,
ō on protrusions of the vehicle, or
ō on protrusions of the door,
this can lead to damage.
▶
Make sure that the cable cannot become caught.
