ENGINE MECHANICAL 6A–73
Torque :
Bolt A : 73 N·m (7.4 kgm/54 lbft)
Bolt B : 96 N·m (9.8 kgm/71 lbft)
Bolt C : 73 N·m (7.4 kgm/54 lbft)
Bolt D : 87 N·m (8.9 kgm/64 lbft)
Bolt E : 119 N·m (12.1 kgm/88 lbft)
Bolt F : 26 N·m (2.7 kgm/20 lbft)
NOTE:
1. Mark B and D : Tighten the bolts together with the
washers.
2 Mark G : Tighten from the cylinder block side.

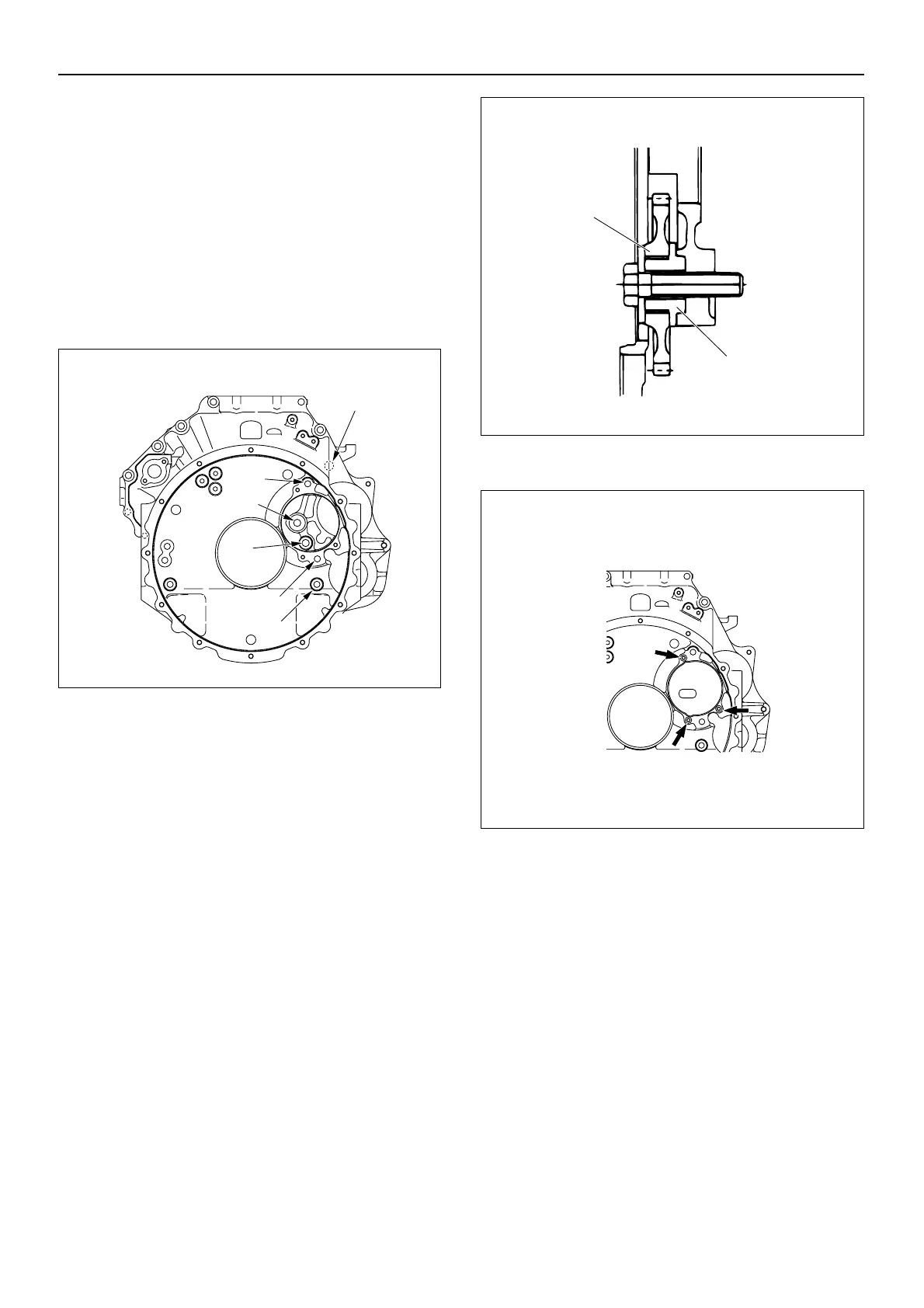

2. Install the idler gear shaft to the cylinder block.
1. Apply engine oil to the idler gear shaft D.
2. Apply engine oil to the inside diameter and thrust
portion of the idler gear D.
3. Install the idler gear with the shaft and the thrust
collar.
4. Tighten the idler gear shaft bolts to the specified
torque.
Torque : 119 N·m (12.1 kgm/88 lbft)
3. Install the cover with new gasket.
4. Install the rear slinger using the oil seal installer
894396-8560.
1. Install the slinger (1) to the end of adapter (2).
Install the adapter to the crankshaft (3).
NOTE : The rear slinger is gray and the front slinger is
black.
2. Install the slinger sleeve (4) to the adapter.
Tighten the center bolt (5) until the sleeve comes
in contact with the adapter stopper.
