TCM £SsHoP MANUAL

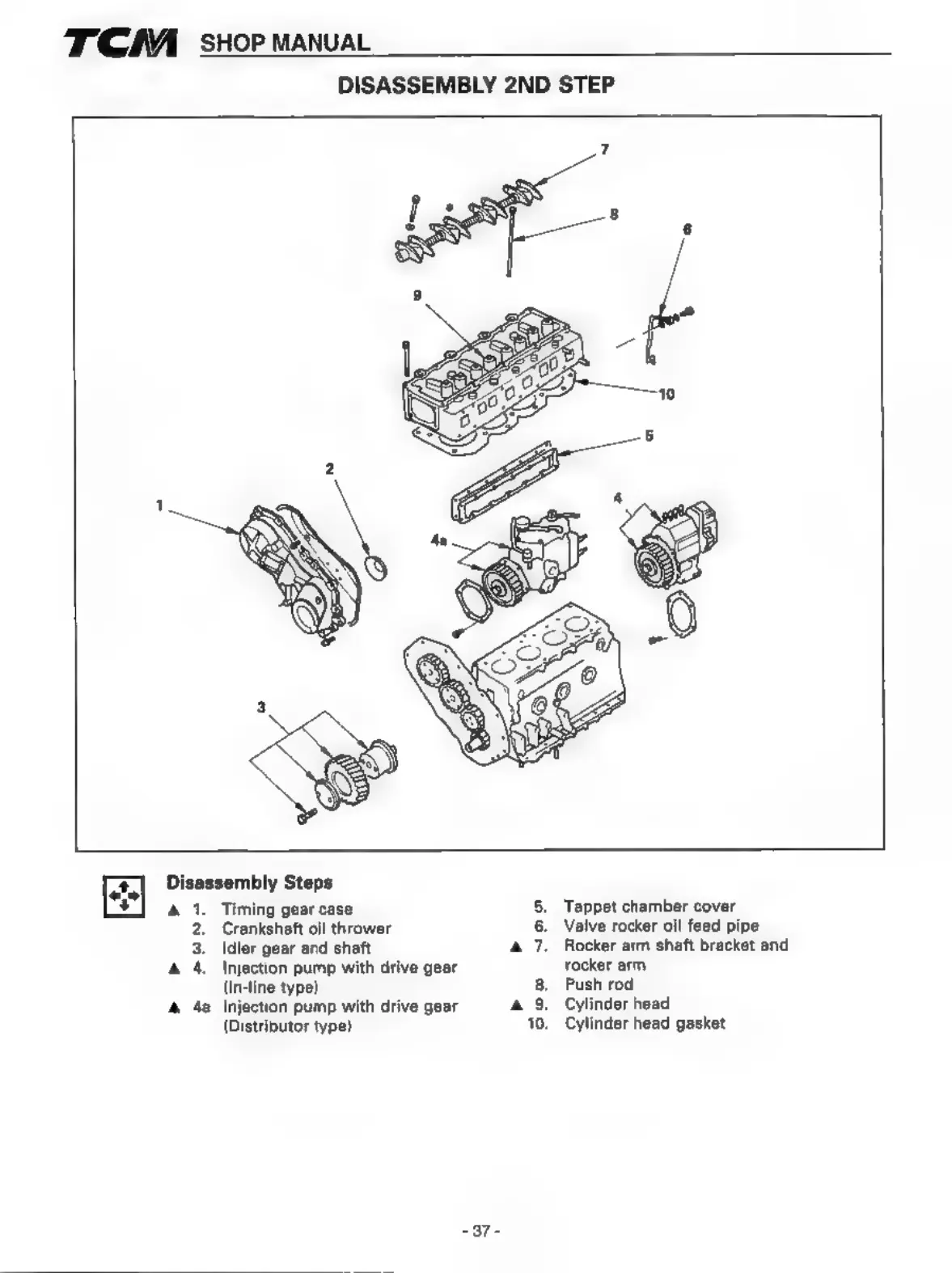

DISASSEMBLY 2ND STEP
Disassembly Steps
at Timing gear case
2. Crankshaft oil thrower
3.
4. Injection pump with drive gear
Idler gear and shaft
(In-line type)
‘4 4a Injection pump with drive gear
(Distributor type)
-37-
Tappet chamber cover
Valve rocker oil feed pipe
Rocker arm shaft bracket and
rocker arm
Push rod
Cylinder head
Cylinder head gasket
