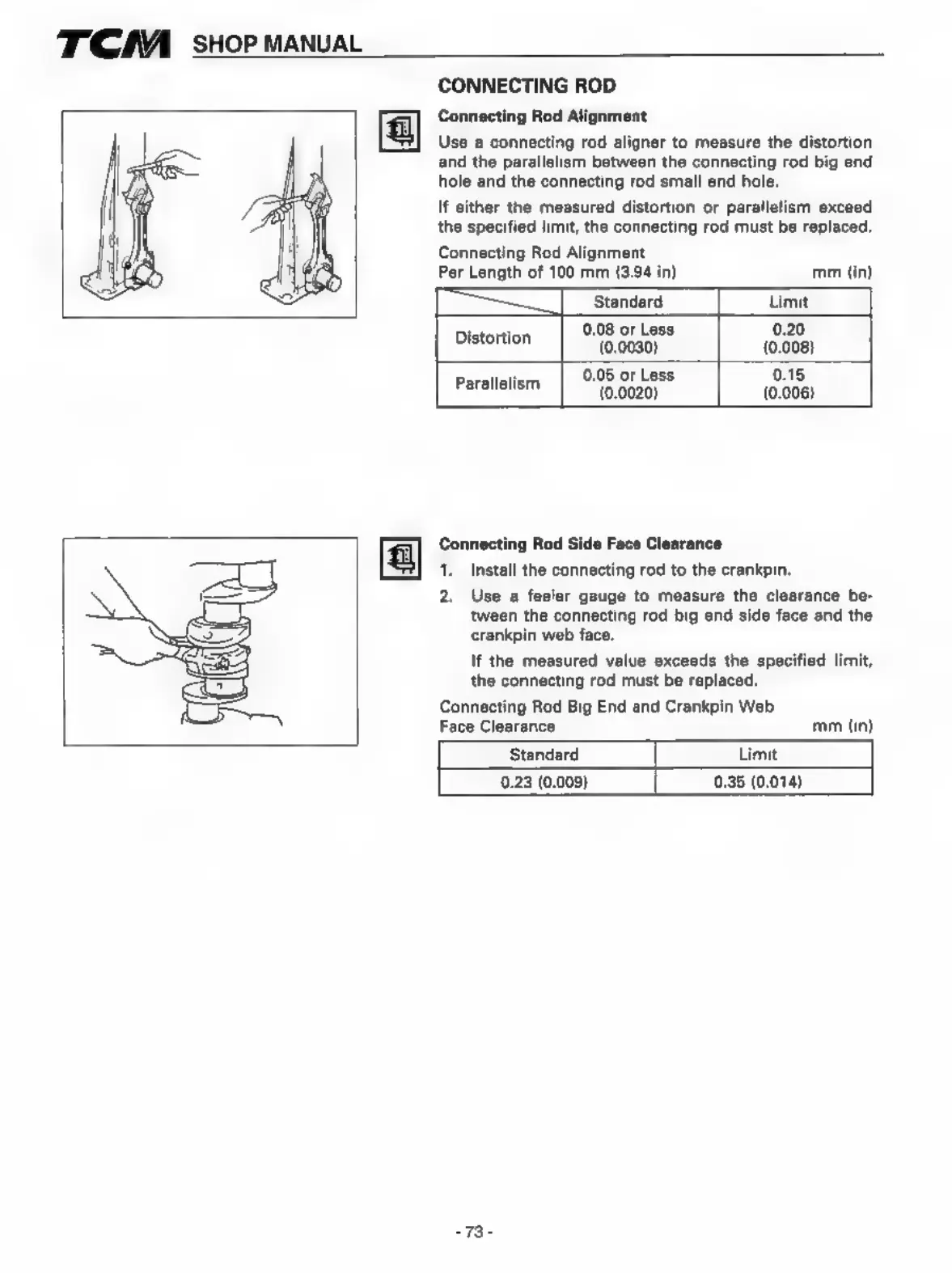

CONNECTING
ROD
Connecting
Rod
Alignment
Use
a
connecting
rod
aligner
to
measure
the
distortion
and
the
parallelism
between
the
connecting
rod
big
end
hole
and
the
connecting
rod
small
end
hole.
If
either
the
measured
distortion
or
parallelism
exceed
the
specified
limit,
the
connecting
rod
must
be
replaced.
Connecting
Rod
Alignment
Per
Length
of
100
mm
(3.94
in)
mm
(in)
[
Standard
Limit
oe
0.08
or
Less 0.20
|
Distortion
(0.0080)
(0.008)
:
0.05
oF
Less
0.15
|
Basten
(0.0020)
(0.006)
Connecting
Rod
Side Face
Clearance
1,
Install
the
connecting
rod
to
the
crankpin.
2.
Use
a
feeler
gauge
to
measure
the
clearance
be-
tween
the
connecting
rod
big
end
side
face
and
the
crankpin
web
face.
If
the
measured
value
exceeds
the
specified
limit,
the
connecting
rod
must
be
replaced.
Connecting
Rod
Big
End
and
Crankpin
Web
Face
Clearance
mm
(in)
Standard
Limit
0.23
(0.009)
0.35
(0.014)
