TCM sop MANUAL
[+]

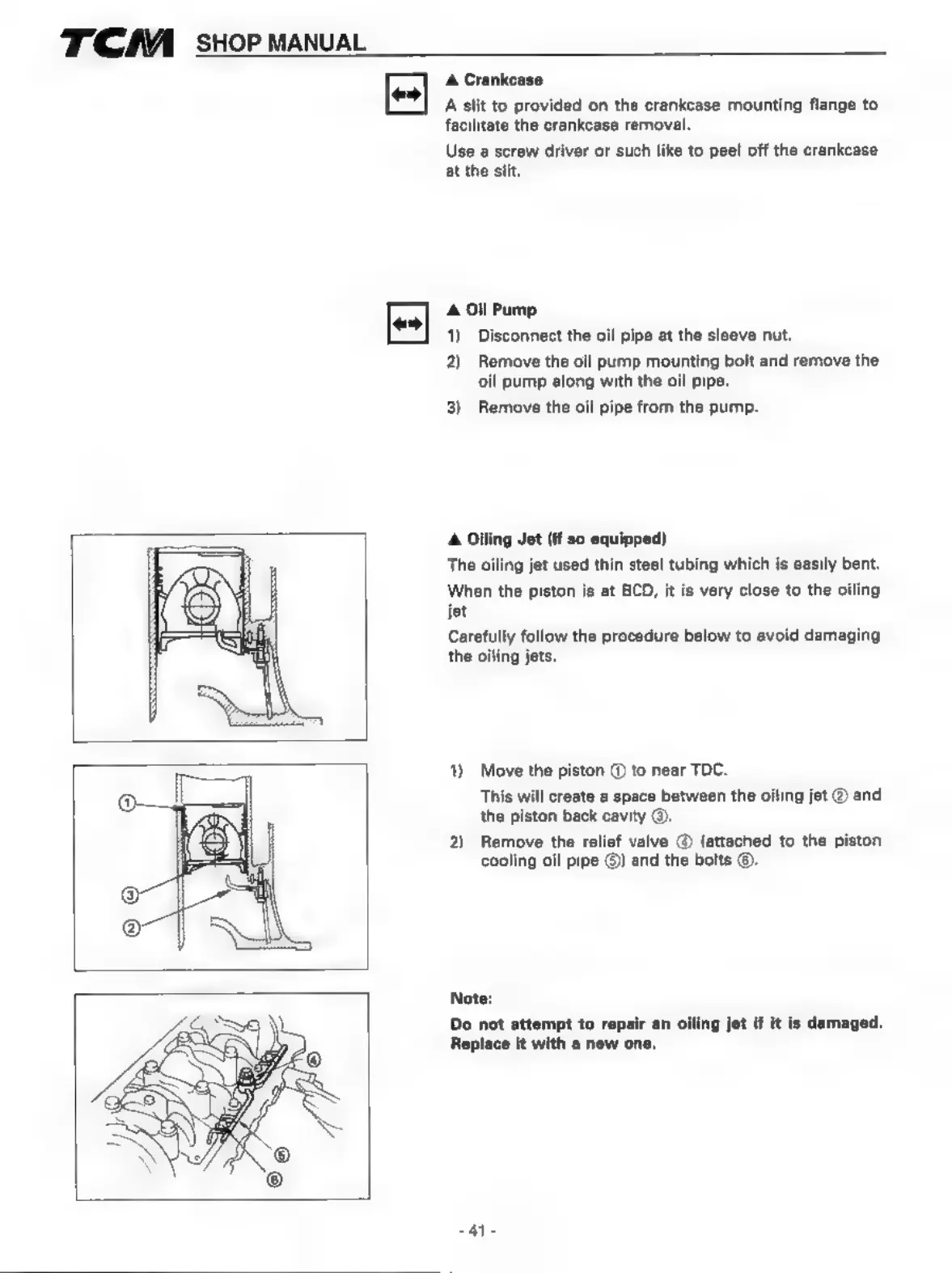

A Crankcase
A slit to provided on the crankcase mounting flange to
facilitate the crankcase removal.
Use a screw driver or such like to peel off the crankcase
at the slit.
A Oil Pump
1) Disconnect the oil pipe at the sleeve nut.
2) Remove the oil pump mounting bolt and remove the
oil pump along with the oil pipe.
3) Remove the oil pipe from the pump.
A Oiling Jet (If so equipped)
The oiling jet used thin steel tubing which is easily bent.
When the piston is at BCD, it is very close to the oiling
jet.
Carefully follow the procedure below to avoid damaging
the oiling jets.
1) Move the piston @ to near TDC.
This will create a space between the oiling jet @ and
the piston back cavity @.
2) Remove the relief valve @ (attached to the piston
cooling oil pipe ©) and the bolts ©.
Do not attempt to repair an oiling jet if it is damaged.
Replace it with a new one.
