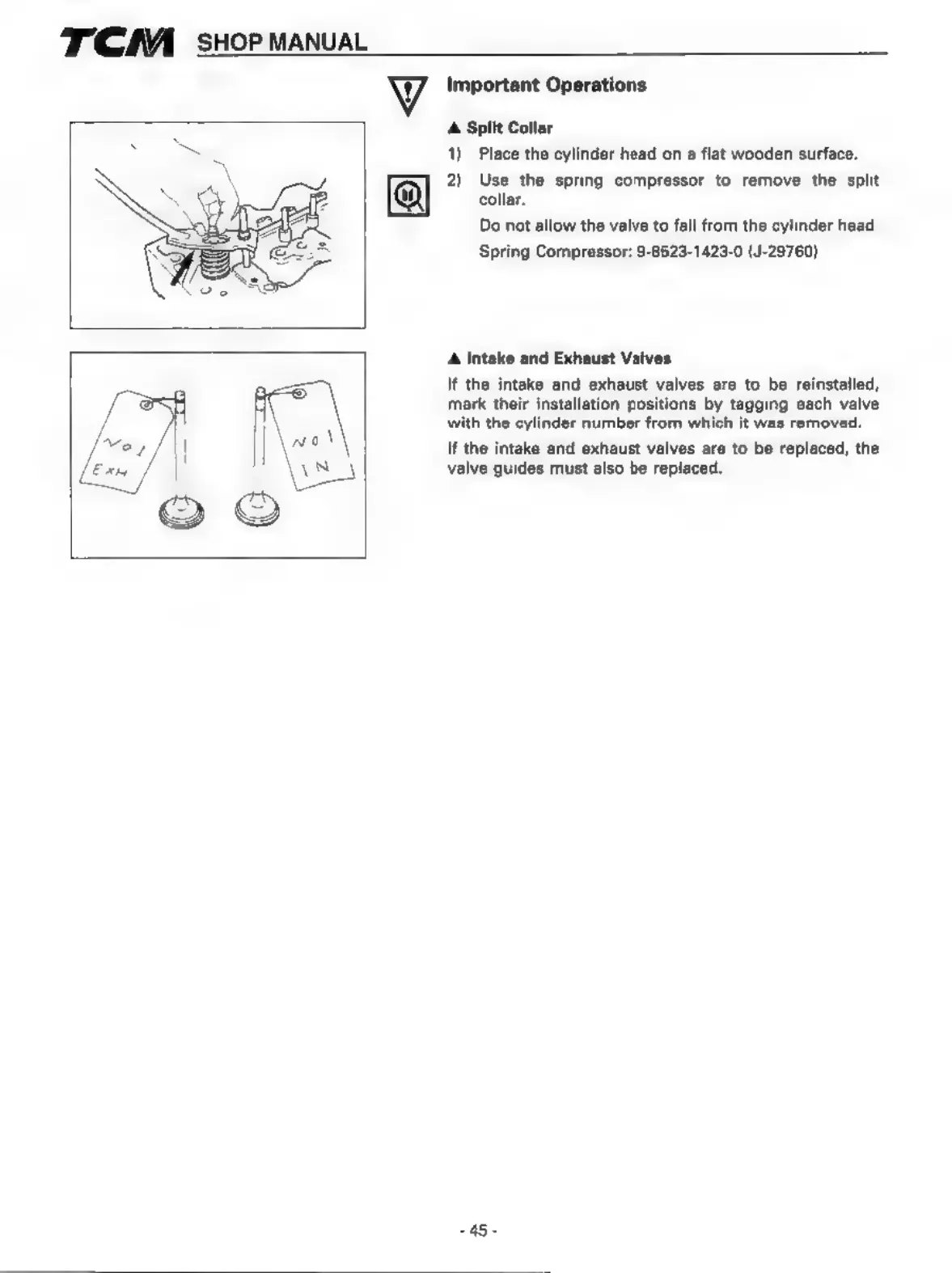

Isuzu C240 - Page 48

TCM £sHoP MANUAL
Important Operations
4 Split Collar
1) Place the cylinder head on a flat wooden surface.
2) Use the spring compressor to remove the split
collar.
Do not allow the valve to fall from the cylinder head.
Spring Compressor: 9-8523-1423-0 (J-29760)
A Intake and Exhaust Valves
If the intake and exhaust valves are to be reinstalled,
mark their installation positions by tagging each valve
with the cylinder number from which it was removed.
If the intake and exhaust valves are to be replaced, the
valve guides must also be replaced.
