TCM £sHoP MANUAL

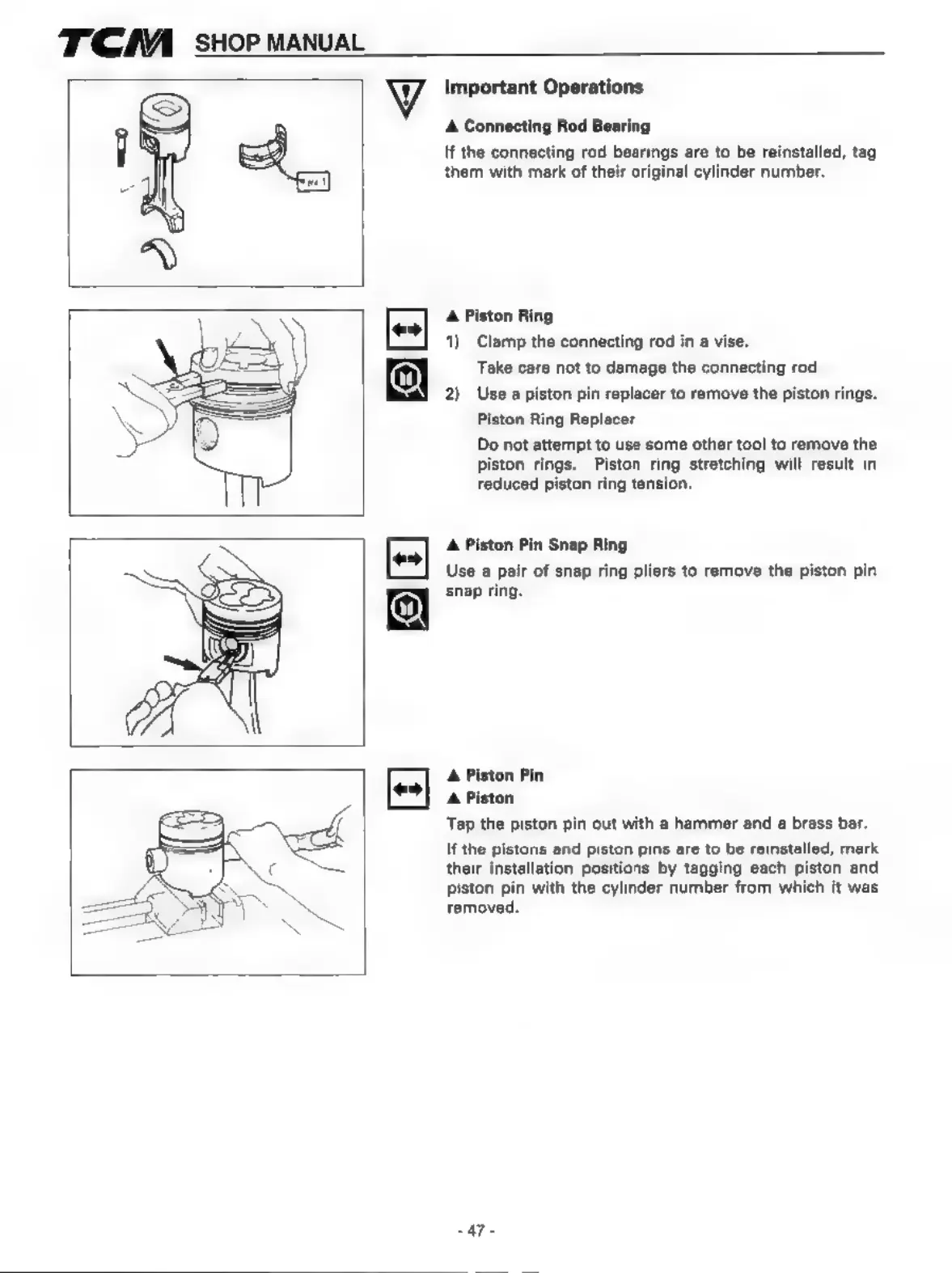

V Important Operations
4 Connecting Rod Bearing
If the connecting rod bearings are to be reinstalled, tag
them with mark of their original cylinder number.
4 Piston Ring
1) Clamp the connecting rod in a vise.
Take care not to damage the connecting rod.
2). Use a piston pin replacer to remove the piston rings.
Piston Ring Replacer
Do not attempt to use some other tool to remove the
piston rings. Piston ring stretching will result in
reduced piston ring tension.
4 Piston Pin Snap Ring
Use a pair of snap ring pliers to remove the piston pin
snap ring.
4 Piston Pin
A Piston
Tap the piston pin out with a hammer and a brass bar.
If the pistons and piston pins are to be reinstalled, mark
their installation positions by tagging each piston and
piston pin with the cylinder number from which it was
removed.
