User manual
IU_M710P_MANUAL_05i00_ENG Strona 15 z 36

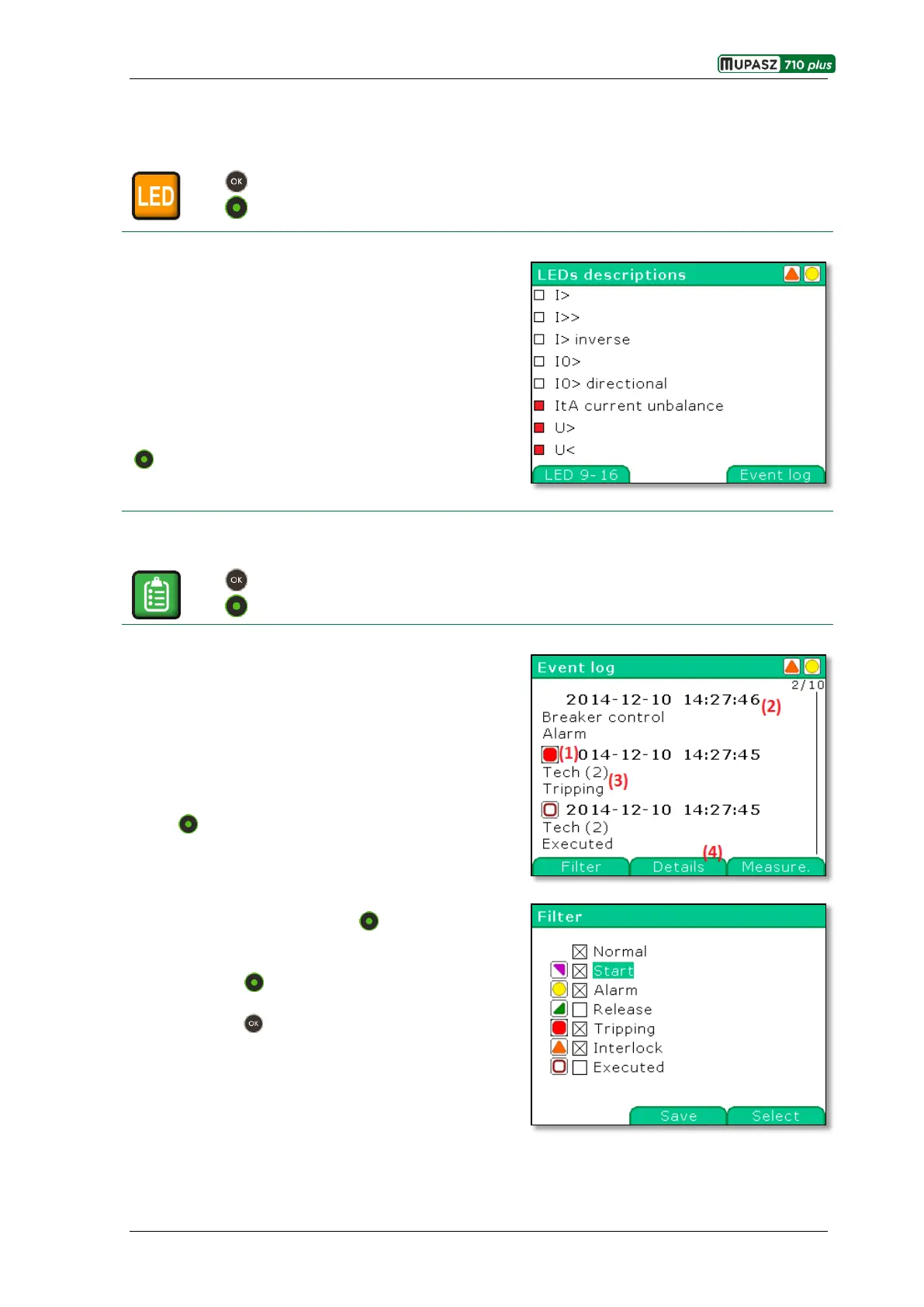

3.4. Diode description
Menu > Diode description
Diode description
Device MUPASZ 710 plus is fitted out with the set of freely
programmable signal LEDs installed on device front panel.
Diodes are configured by means of ELF program, in the tab
Logic; configuration consists in assigning a signal from the
system, algorithm or automatic function to specific LED.
Active state of the signal results in illumination of LED.
Descriptions of signalization diodes are defined by editing
the text assigned to given diode and are shown on the
display. The mark in front of the description text
corresponds with the diode colour illumination.
LED 1-8/9-16 – allows moving to the widow with
descriptions of the other diodes.
3.5. Event log
Menu > Event log
Event log
The Event log holds events generated in the device and
allows their viewing. Any recorded event is characterized
by:
1) type – see table below,
2) date and time – the events are tagged with 1 ms
resolution time tags,
3) descriptive text – displayed in one or two lines,
4) up to 5 parameters, e.g. current value at protection
stripping (the parameters may be accessed by selecting
the Details context key)
The logged events may be filtered for displaying in regard
of their types. Having selected the Filter context key a
window opens in which event types to be displayed may be
selected.
By means of the Select context key required positions
may be selected or deselected. After confirmation your
choice with the key and returning to the Event log
window only the event types selected in the Filter window
will be displayed.
