Technical information
6 720 802 419 (2012/06) en
16
7.2.2 C6 - C11

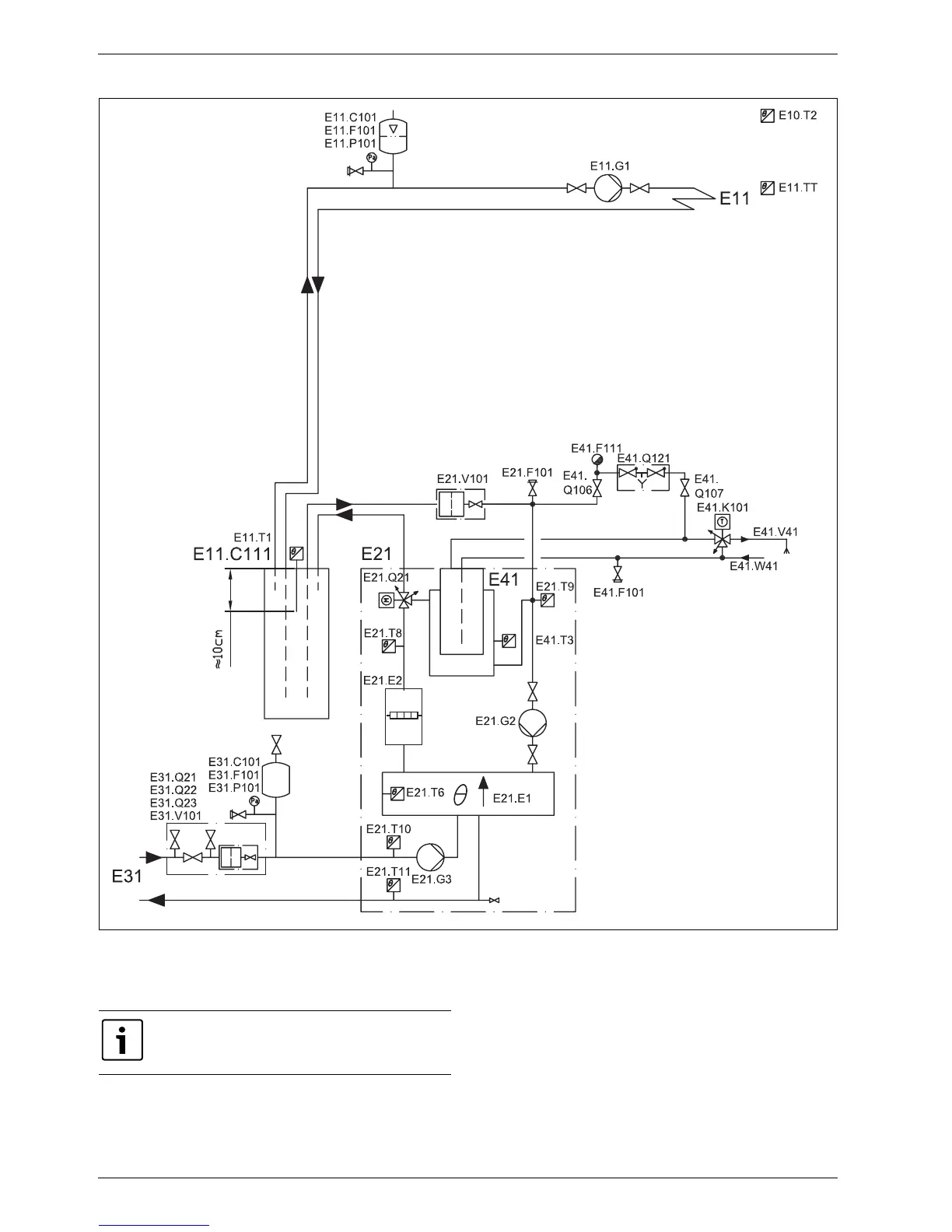

Fig. 11 Unmixed heating circuit with buffer tank
When installing to underfloor heating systems with individual room
control, a system solution with a buffer tank (E11.C111) is required to
guarantee the flow over the heat pump.
6 720 649 701-01.1I
For explanations to the system solutions (Æ 7.2.1 ).
