7.1 Component parts
7.1.1 C6 - C11

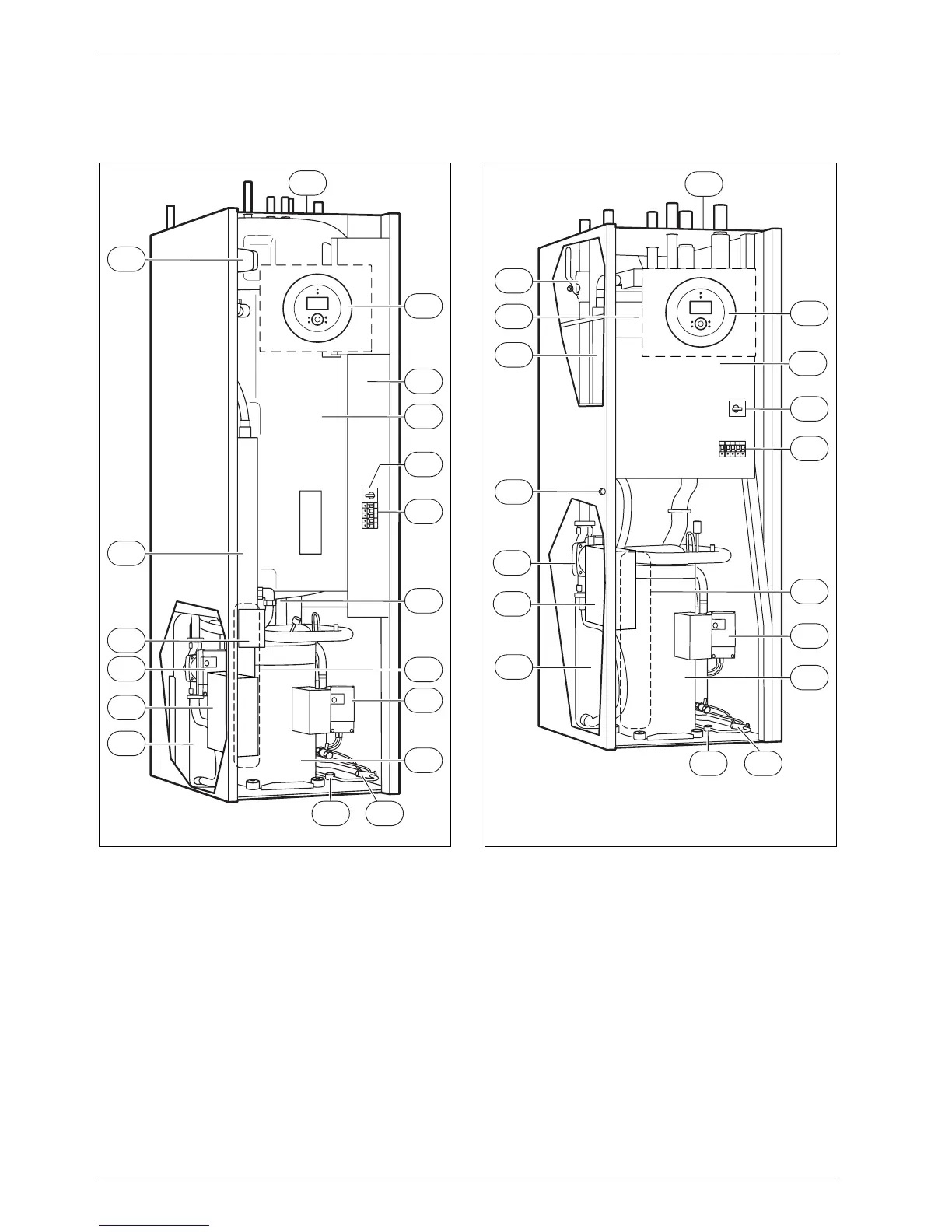

Fig. 9
[1] Type plate
[2] Control panel
[3] Electric box
[4] Motor cut-out with reset compressor
[5] Miniature circuit breakers
[6] Evaporator (concealed)
[7] Collector circuit pump
[8] Compressor with insulation
[9] Expansion valve
[10] Sight glass
7.1.2 E6 - E11
Fig. 10
[11] Condenser
[12] Soft starter
[13] Heat carrier pump
[14] Reset button for overheat protection to electric heater (hidden)
[15] Electric additional heat
[16] 3-way valve
[17] Particle filter for the heating system
[18] Double shelled hot water heater
[19] Drain tap under the hot water heater
1
2
4
12
5
18
3
19
6
8
9
7
10
13
11
15
14
16
