Electrical connections
6 720 802 419 (2012/06) en
37
10.3.7 Complete wiring diagram connections

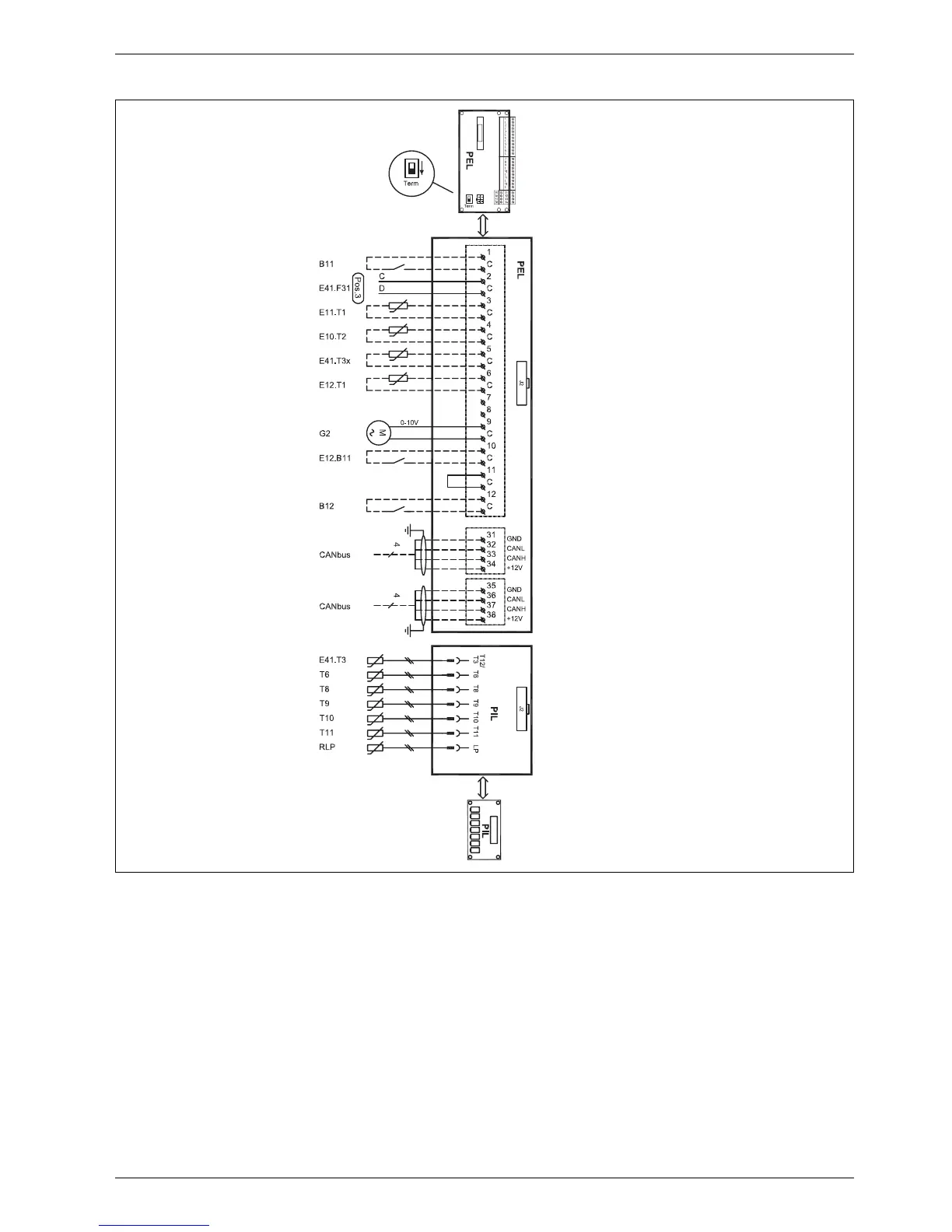

Fig. 34 Complete wiring diagram connections (low current)
Solid line = factory set connection
Dotted line = connect during installation:
[B11] External input 1
[E41.F31] Alarm protective anode
[E11.T1] Flow
[E10.T2] Outdoor sensor
[E41.T3x] Hot water E model
[E12.T1] Flow circuit 2
[G2] Heat carrier pump
[E12.B11] External input, circuit 2
[B12] External input 2
[E41.T3] Hot water C-model
[T6] Hot gas sensor
[T8] Heat transfer fluid out
[T9] Heat transfer fluid in
[T10] Collector circuit in
[T11] Collector circuit out
[RLP] Low pressure switch
6 720 802 416-13.1I
