Operation Manual – ITW GSE 7400 Battery Powered GPU
90 kVA
Transportation and Installation
Document No. 575.410DB Page 44 of 195

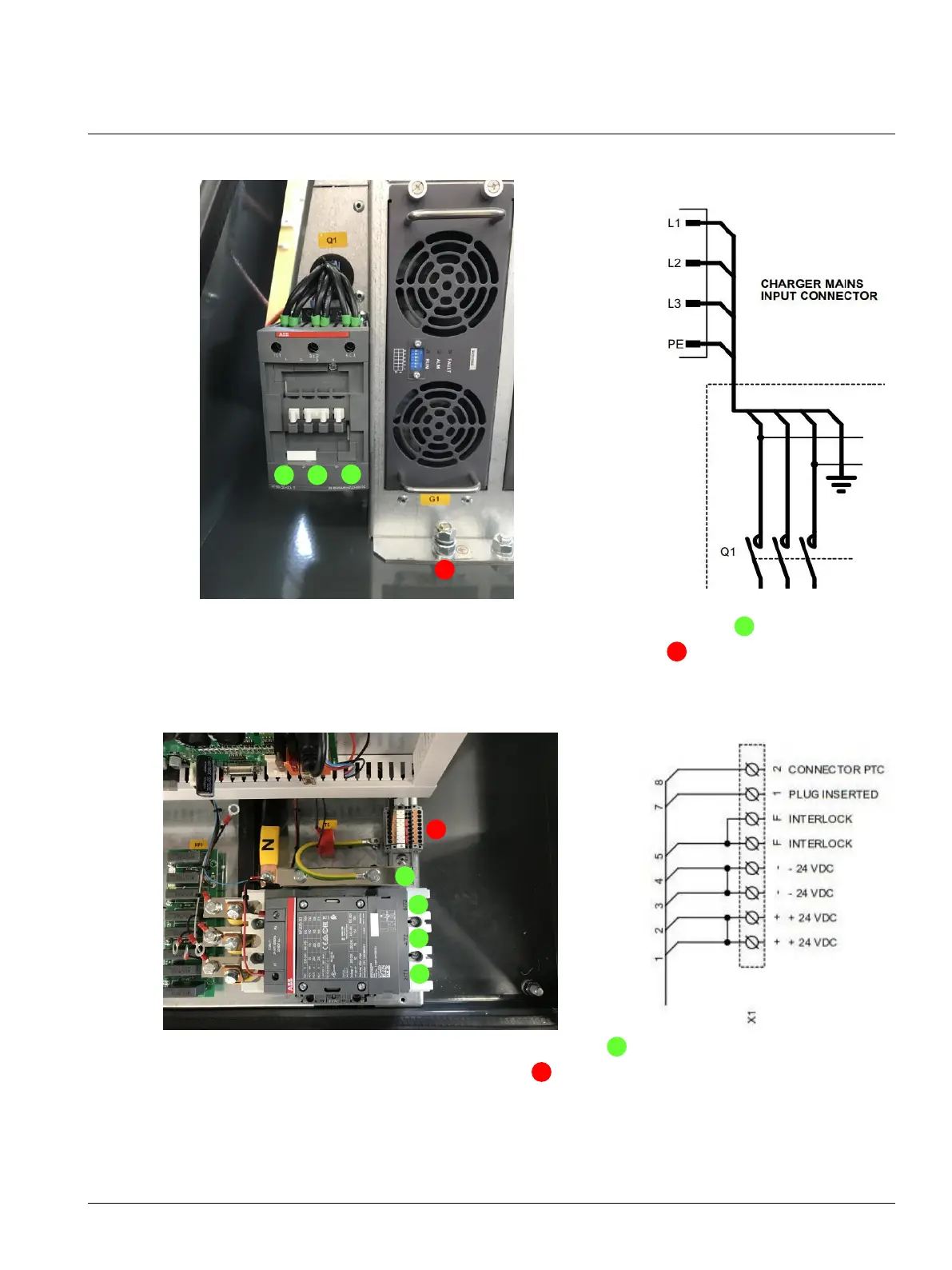

Standard input connections
50/60 Hz input terminals: 3 x M8 (3x ¼-20 by 1”) 6 Nm (53.1 in lbf) (L1, L2, L3)
1 x M10 bolt 50 Nm (444 in lbf) (Ground/PE)
Fig. 4.8.2 Input cable terminals
Standard remote I/O terminals
400 Hz output terminals: 4 x M8 (A, B, C, N) 25.4 Nm (225in lbf)
Remote I/O terminals: 8 x 0.4 - 4 mm² (AWG 21-11)
Fig. 4.8.3 Output cable terminals
Note
Remember to switch both breakers to “ON” after cable(s) have been installed.
Remember the sequence: Q3 and then Q6.
