Operation Manual – ITW GSE 7400 Battery Powered GPU
90 kVA
Operator’s Instructions
Document No. 575.410DB Page 52 of 195
6.0 Operator’s Instructions (Display / LED / Keypad Layout)

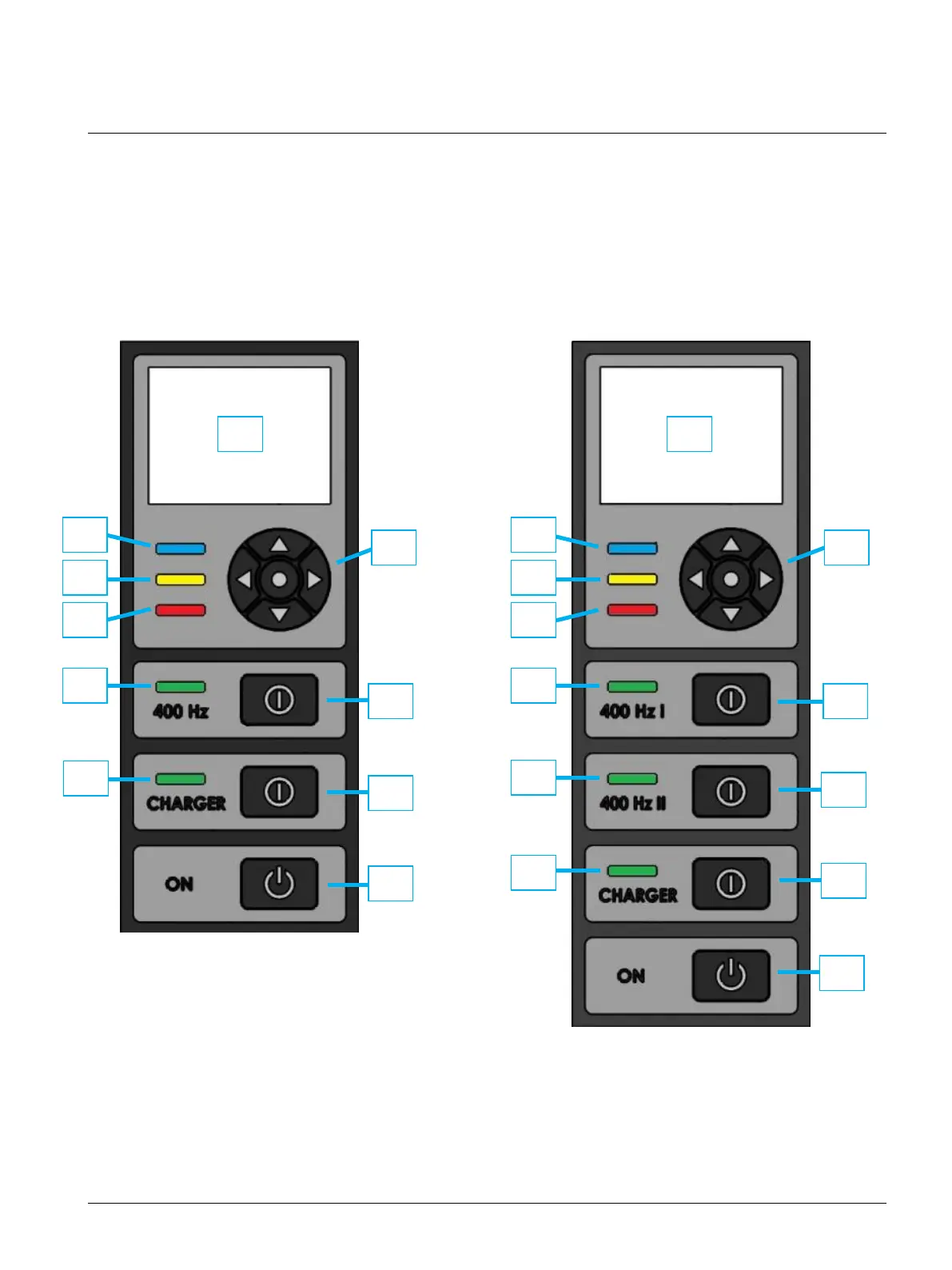

Depending on the ITW GSE 7400 layout, the different types of operator panels are shown below:
1 x 400 Hz output 2 x 400 Hz output
1:
LED Graphic Display
7:
Output 1 (400 Hz) ON/OFF
2:
Navigation Keypad
8:
Output 2 ON (400 Hz) “Green” LED
3:
Power ON “Blue” LED
9:
Output 2 (400 Hz) ON/OFF
4:
Warning “Yellow” LED
10:
Charger “Green” LED
5:
Failure “Red” LED
11:
Charger ON/OFF
6:
Output 1 ON (400 Hz) “Green” LED
12:
Power ON/OFF
1
3
5
4
6
7
1
2
2
7
11
12
7
9
11
12
10
6
4
6
8
10
4
5
5
3
3
