Operation Manual – ITW GSE 7400 Battery Powered GPU
90 kVA
Operator’s Instructions
Document No. 575.410DB Page 73 of 195

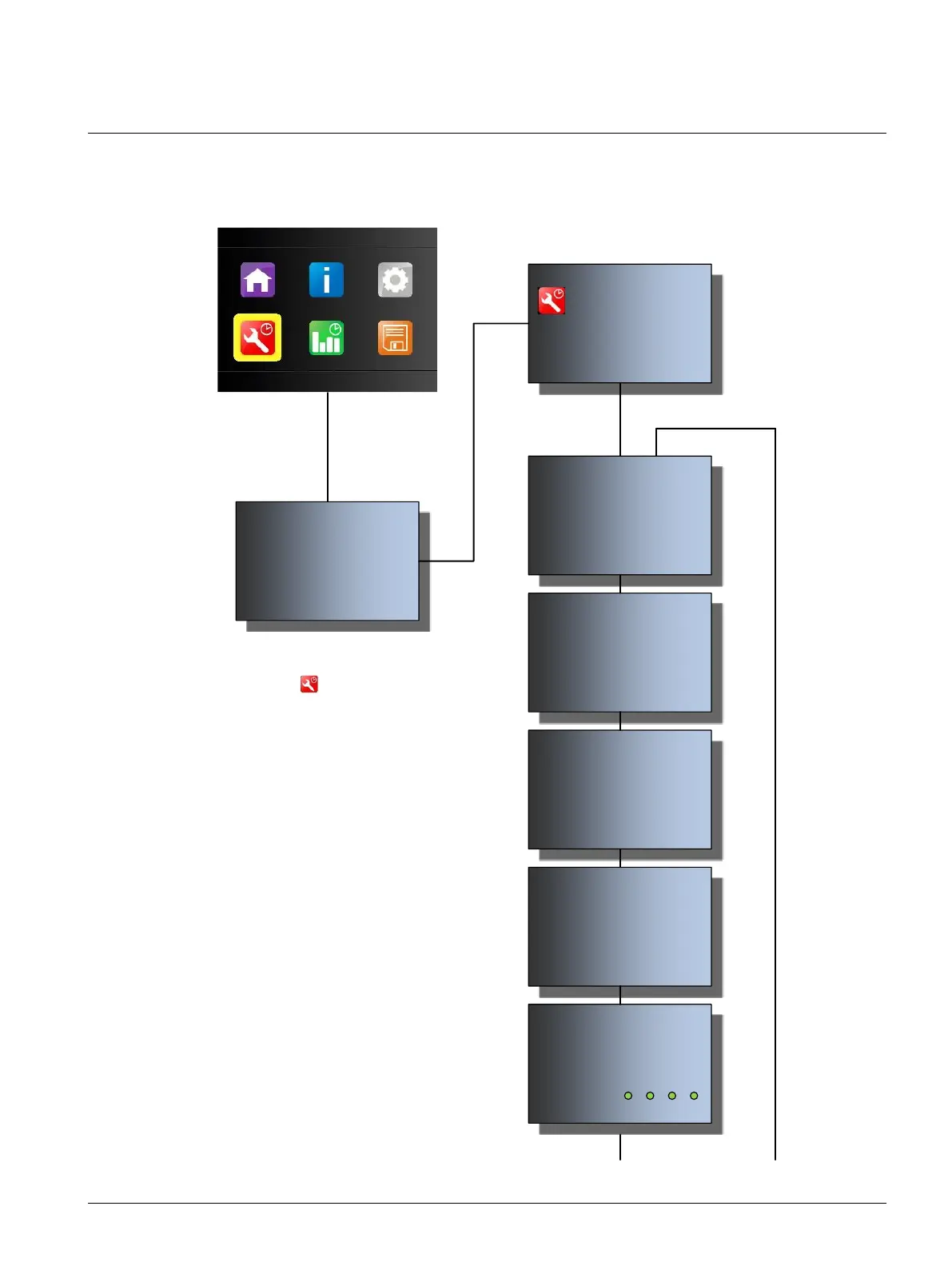

6.5.4 Black Box – Menu Structure
14:54:33 Black Box 24/09/2019
Date Time Error
001: 01/01/2017 14:54:33 4307
002: 01/01/2017 10:33:44 4207
003: 01/01/2017 10:25:10 0301
004: 01/01/2017 10:24:17 0301
005: 01/01/2017 10:11:24 0301
 Back  View Error
14:54:33 24/09/2019 4307
OVERLOAD:
200% < I < 300% - 10 s
 Alarm Data 001/100
Highlight the by using the navigation
 keys.
Press  to select View Errorsubmenu.
Use the / to highlight the failure you want to
view.
Press  to select View informationon the error.
The error is then explained in clear text.
Press  to view detailed alarm data.
Use the / to browse through the recorded
data.
Use  to leave the submenu and return to basic
icon menu.
Note
The black box contains 100 recordings. When the
limit is reached, the oldest failure is deleted.
OUTPUT VOLT AMP
Phase A: 94.2 V 525 A
Phase B: 93.2 V 527 A
Phase C: 93.2 V 526 A
Average: 93.3 V 526 A
 Back / Next/Prev
INVERTER
Phase A: 212 A
Phase B: 212 A
Phase C: 213 A
DC-Voltage: 548 V
DC-Ripple: 45 V
INTERLOCK LEVEL RIPPLE
Outp ut 1: 24 V 0 V
Leakage: 0 V
NVS Level: 2 V
SYSTEM
Contro l 24.7 V
Inv. Temp: 62° C 66° C
Time On: 00:00:57
Consumption: 1 kWh
 Back / Next/Prev
BATTERY SYSTEM
Voltage: 400 V
Current: 0 A
State of Charge 96.2 %
Batteries Active: 1: 2: 3: 4:
 Back / Next/Prev
