Operation Manual – ITW GSE 7400 Battery Powered GPU
90 kVA
Document No. 575.410DB Page 5 of 195

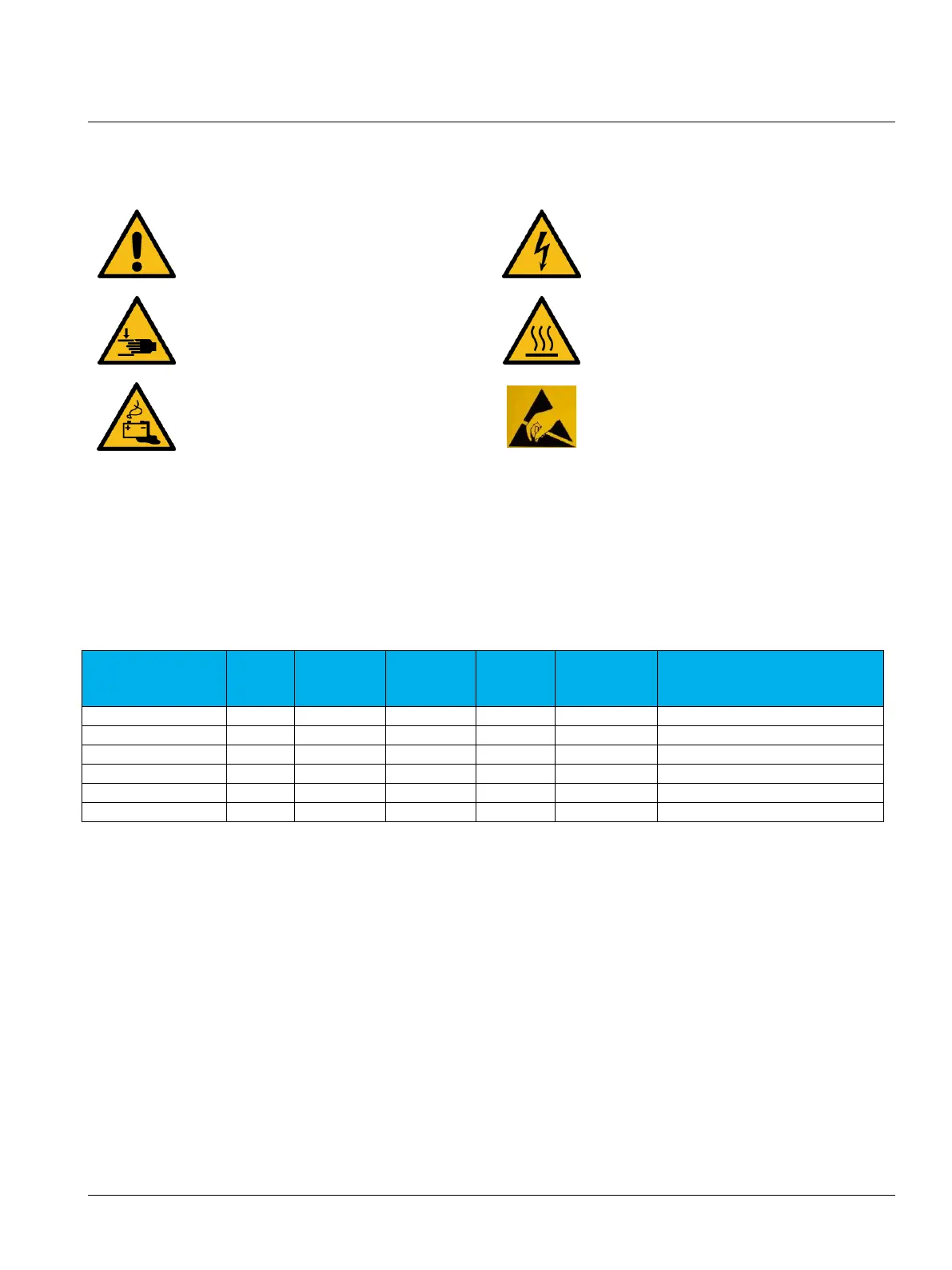

Pictograms used in manual
General warning sign
Electricity hazard
Crushing of hands
Hot surface
Battery
Electrostatic sensitive devices
Overview of Types and Ratings
Type
Rating
Capacity
Number
of battery
packs
Part
number
Schematic
Charger voltage (Input
Main/Utility Voltage)
3GWB-90/160I
90 kW
160 kWh
4
575410
575400
3 x 400 V ± 30% (280-520 V)
3GWB-90/160I
90 kW
160 kWh
4
575412
575400
3 x 400 V ± 30% (280-520 V)
3GWB-90/120I
90 kW
120 kWh
3
575420
575400
3 x 400 V ± 30% (280-520 V)
3GWB-90/120I
90 kW
120 kWh
3
575421
575400
3 x 400 V ± 30% (280-520 V)
Part number:
575410 & 575420 – with 15 kW CE chargers
575412 & 575421 – with 16 kW UL chargers
Available and possible configurations are:
400Hz one output
400Hz two outputs
400Hz one output & 28 VDC ARU
400Hz one output & Range extender
400Hz two outputs & Range extender
400Hz one output + 28 VDC ARU & Range extender
