Ivation IVALDHG70PWP User Manual

4

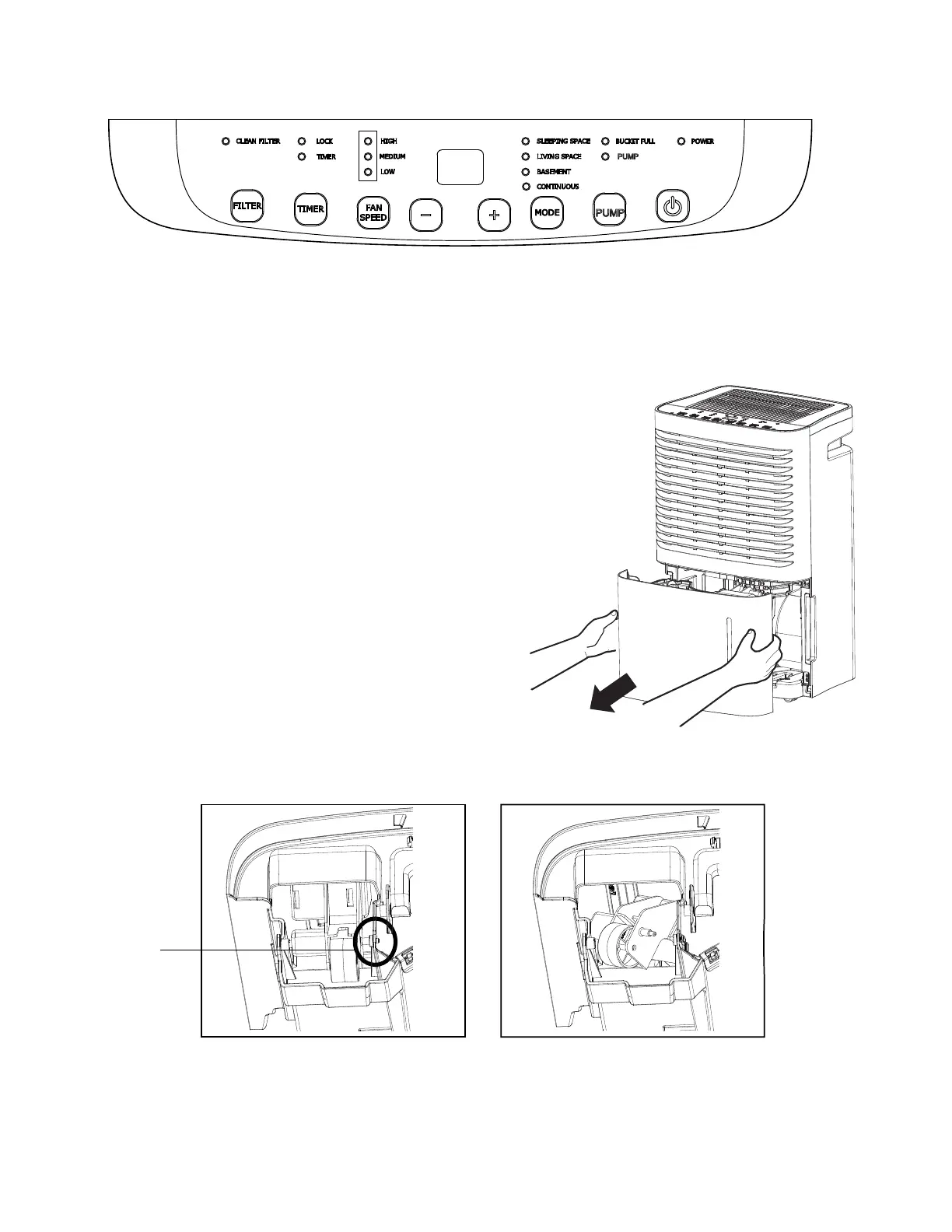

Control Panel
NOTE: For further details about the various buttons and lights on the control panel, please refer to the Button Functions section
on page 6.
Before First Use
Prior to using your new dehumidifier, please check to make sure the float is properly
placed in the drainage bucket.
1. Hold the handles on both sides of the water bucket and pull it straight toward you
as illustrated.
2. Refer to the diagram below to check and make sure the float in the water bucket is placed correctly. There is the possibility that
it could have moved in transit. If you find the float is improperly placed, simply move it into the correct position manually.
3. Replace the bucket by reversing the process in step 1.
Correct Position
Float
Wrong Position

Ivation IVALDHG70PWP Specifications

Power

rated voltage	115V
rated frequency	60Hz
power input	690W
rated input	810W

Current

current input	6.2A
rated current	7.2A

Performance

rated dehumidification capacity	70 pints/day (33.1 L/day)
effective use area	164 ft2 (50m2)
set humidity range	35% – 80%

Weight and Dimensions

dimensions	14.96" W x 24.02" H x 11.22" D (380 x 610 x 285mm)
net weight	50.7 lb. (23kg)
