INSTALLATION DIRECTIVE
N45 MNA M10
N67 MNA M15
MAY 2006

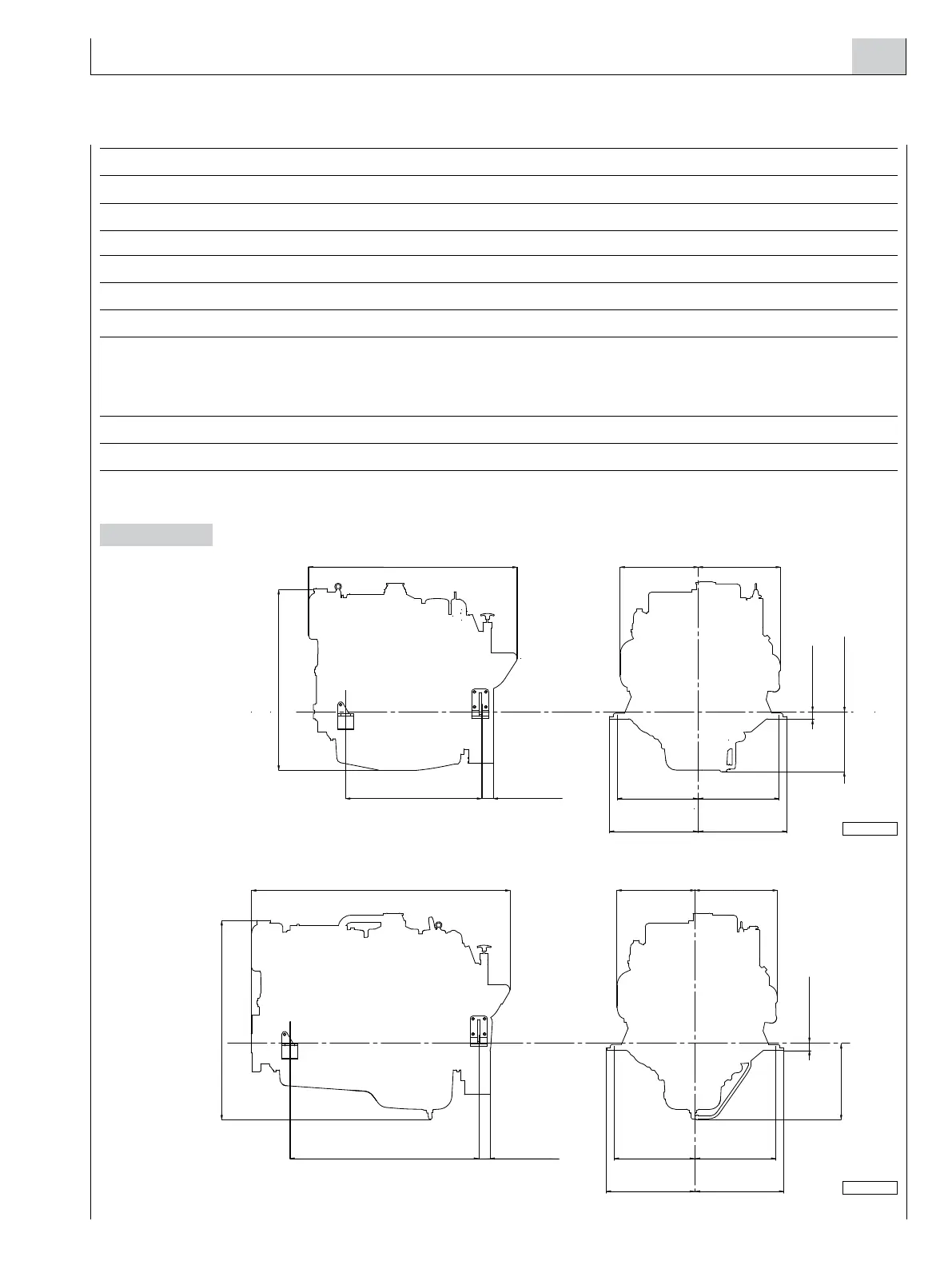

Figure 5
Dimensions
Measurements in millimeters (inches)
N45 MNA M10 N67 MNA M15
Power takeoffs (optional)
2-race front pulley for “V” belts
Reference diameter mm 187
Race dimension mm 12.7
Power available at 900 rpm kW
≤ 6
Power available at 1800 rpm kW
≤ 12
Radial force resulting from belt tension N
≤ 1340
(*) For direction of the resulting radial force between 60° and 300° with reference to the cylinder axis (piston at top dead
center = 0°)
2-race front pulley + elastic joint
Torque available in engine axis Nm
≤ 150 (15)
Moment of inertia of rigidly added masses kgm
2
≤ 0,015
04_428_N
