3. ENGINE PARTS AND COMPONENTS
Figure 3
04_400_N
6
14
15
1617
1
2
3
5
7
8
4
9
10
11
13
12

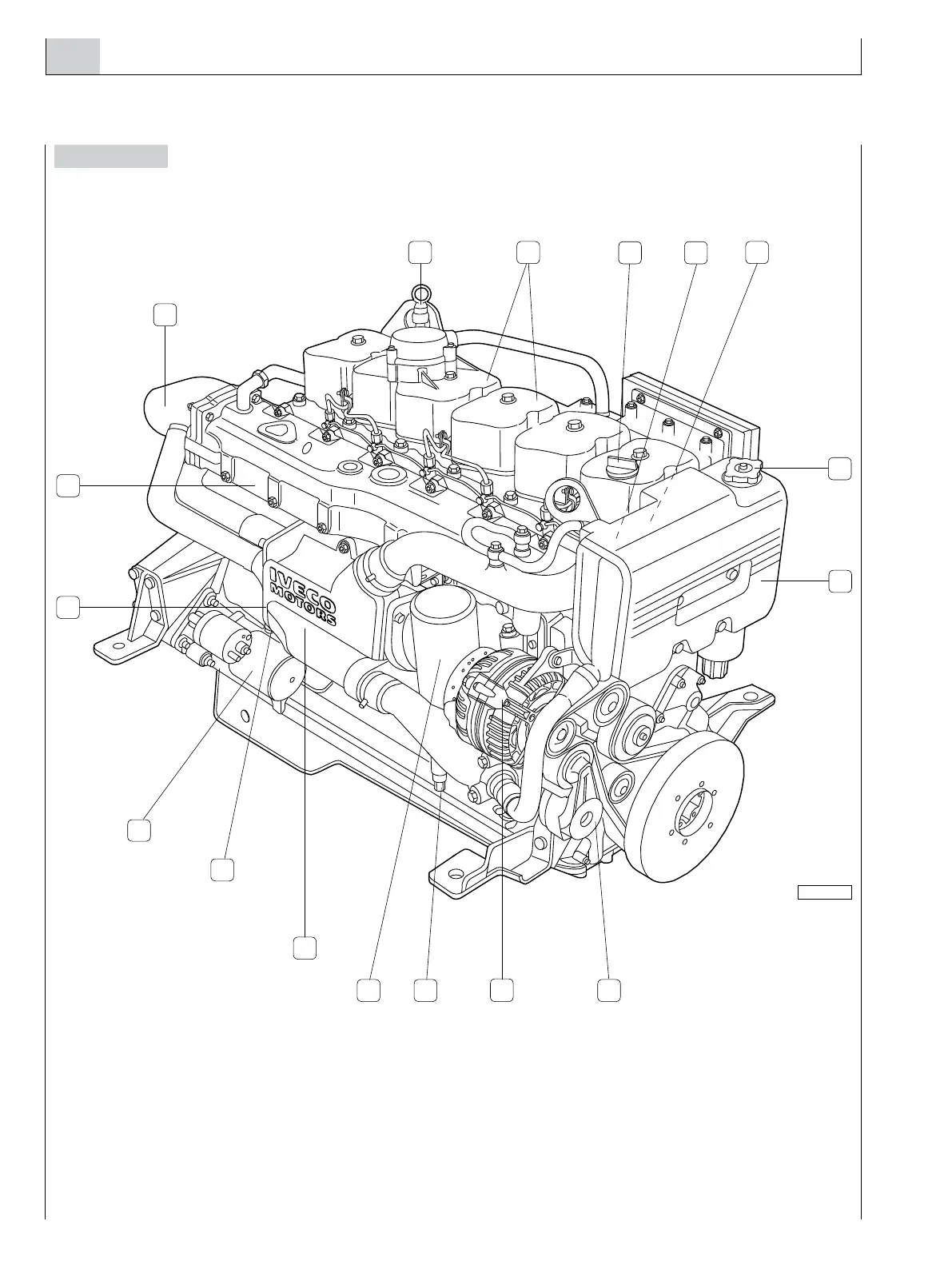

1. Tube bundle engine coolant/sea-water heat exchanger - 2. Engine coolant discharge cap - 3. Electric starter motor -
4. Location of sacrificial anode - 5. Cooled exhaust manifold - 6. Exhaust gas and sea-water discharge pipeline - 7. Lifting eyebolt -
8. Rocker arm covers - 9. Oil refill cap - 10. Location of thermostatic valve - 11. Cap for engine coolant outlet to sanitary water
heating system - 12. Coolant refill cap - 13. Engine coolant tank - 14. Auxiliary belt automatic tensioner -
15. Alternator - 16. Cap for engine coolant discharge and recirculation from sanitary water heating system - 17. Oil filter.
