41
INSTALLATION DIRECTIVE
N45 MNA M10
N67 MNA M15
MAY 2006
15. M10.01/M15.01 ELECTRICAL EQUIPMENT

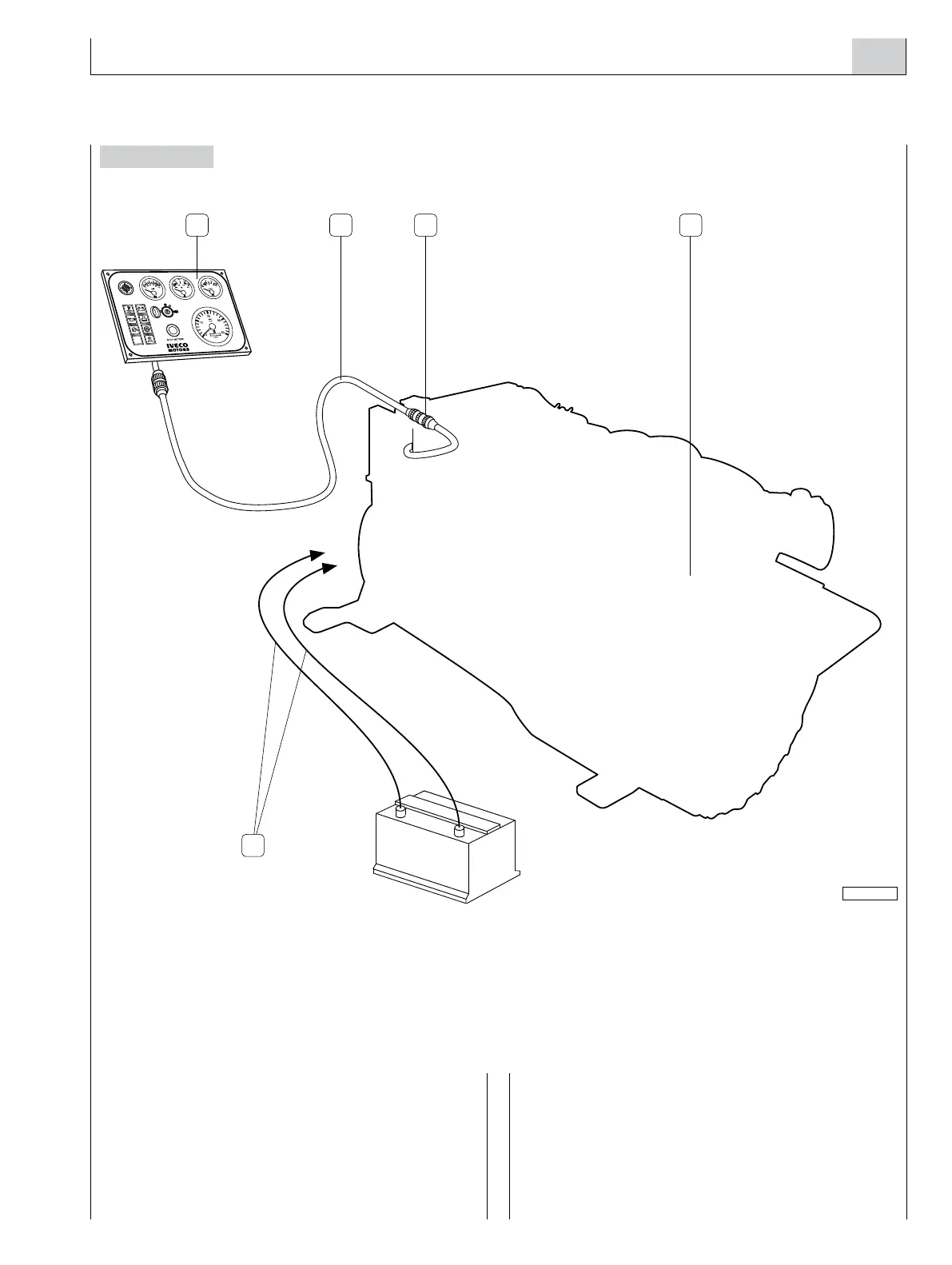

Figure 31
The electrical equipment of the engine comprises a series
of components provided separately from the engine to
enable an easy and diversified installation, according to the
Yard’s design choices. The need to make accessible, at sea
or underway, the controls to the electrical components
contained in the relay box may be met through different
installation arrangements.
Along with the coupling of all connectors provided in the
wire harnesses, completing the installation also requires to
complete the power line and to connect the accumulator to
the engine wire harness.
1. Indicator and control panel - 2. Provided wire harness - 3. JB Connection - 4. Power line for electric starter motor and alternator.
06_009_N
1 2 3 4
4
