Figure 37
Installation of the IVECO MOTORS onboard panel with
analog indicators entails connecting the panel’s JC connector
to the JB connector on engine wire harness, interposing the
appropriate extension wire harness available in 3, 5 and 7
meter-long versions. The JC-JB wiring is made of 16 lines each
one leading to a wire of a different colour (see the table on
the following page).
The MP clamp is set for the connection to the secondary
board; in the models without secondary board the clamp is
not used.

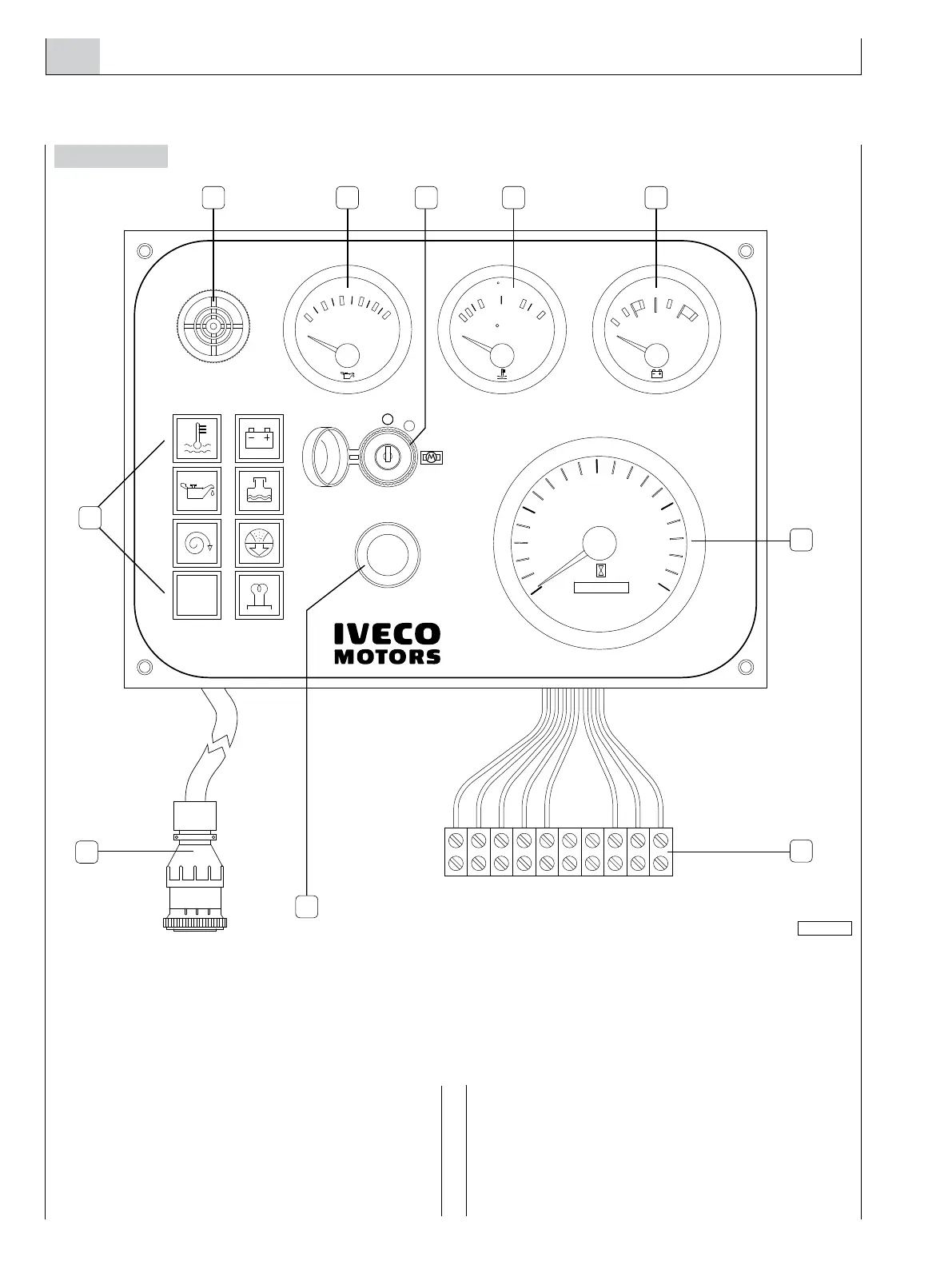

16. M10.01/M15.01 MAIN ANALOG INSTRUMENT PANEL
1. Warning lights - 2. Buzzer (SA) - 3. Engine oil pressure gauge (MO) - 4. Engine start/stop key switch (CA) - 5. Coolant
temperature gauge (TA) - 6. Voltmeter (V) - 7. Revolution counter and hour counter (CG) - 8. Secondary board connecting
clamp (MP) - 9. Engine stop push-button (AQ) - 10. Connector for main panel wiring (JC).
05_009_N
