INSTALLATION DIRECTIVE
N45 MNA M10
N67 MNA M15
MAY 2006
*"
2,
*#
*#
Figure 42

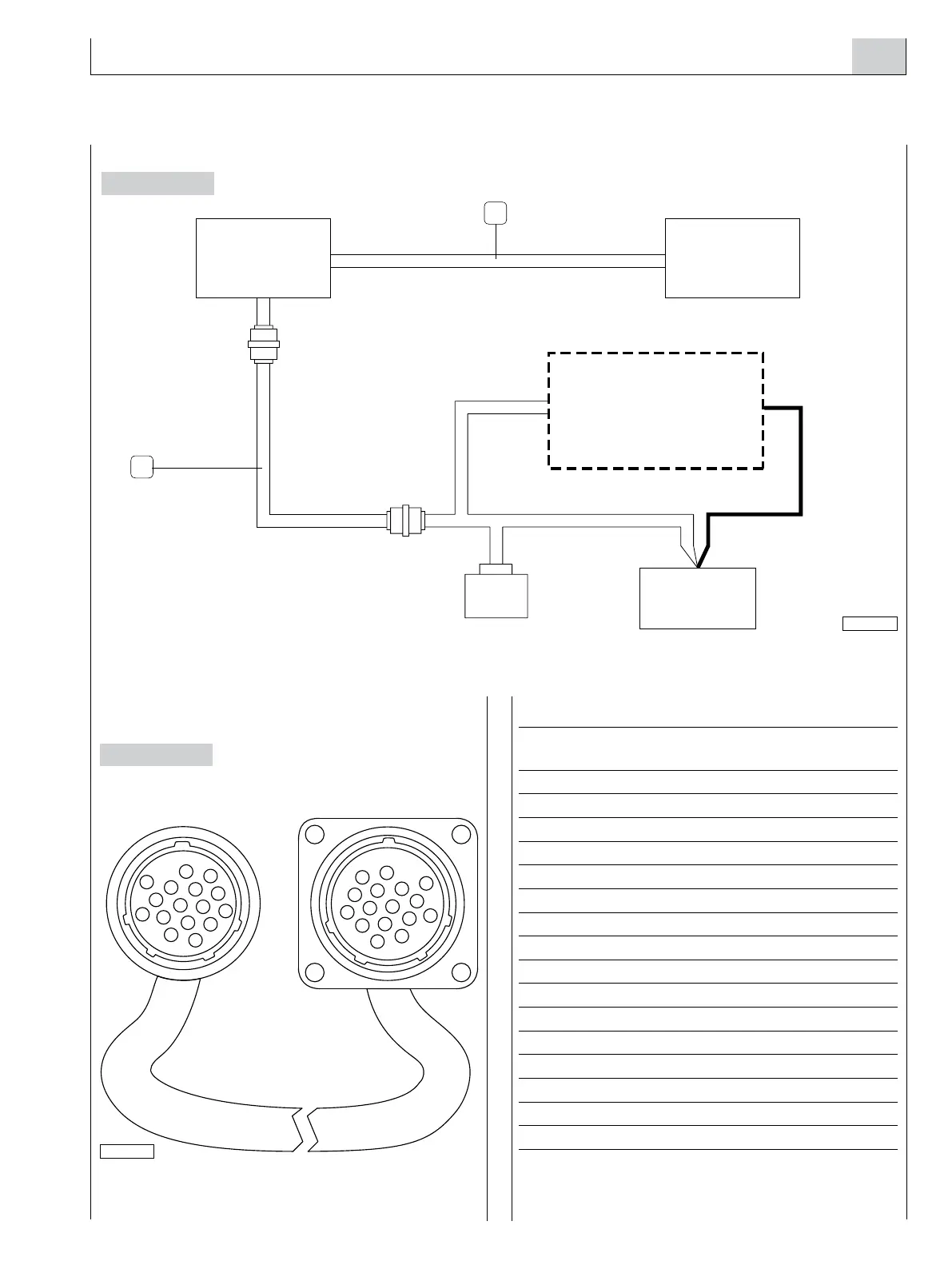

CONNECTORS OF THE JB - JC EXTENSION WIRE
HARNESS, SEEN FROM THE COUPLING SIDE
Figure 43
1. JB-JC extension wire harness - 2. Wiring to be carried out by the installing technician.
05_010_N
1
2
5
6
10
13
14
9
4
3
8
7
11
12
15
16
16
15
12
11
8
3
4
9
14
13
10
6
5
2
1
7
*" *#
05_013_N
1
BATTERY
ENGINE
EQUIPMENT
MAIN
INSTRUMENT
PANEL
SECONDARY
INSTRUMENT
PANEL
PIN
CONNECTOR
CABLE COLOUR
1 red
2 sky blue
3 sky blue - black
4 black
5 green
6 yellow
7 blue
8 green - black
9 orange
10 white
11 purple
12 pink - black
13 pink
14 white - black
15 grey
16 brown
To identify the functions served by the individual lines, refer
to the electrical diagrams in Chapter 20.
Connectors of the JB - JC extension
wire harness
2
Synoptic of the connections of the analog panels
