14
Step 2:

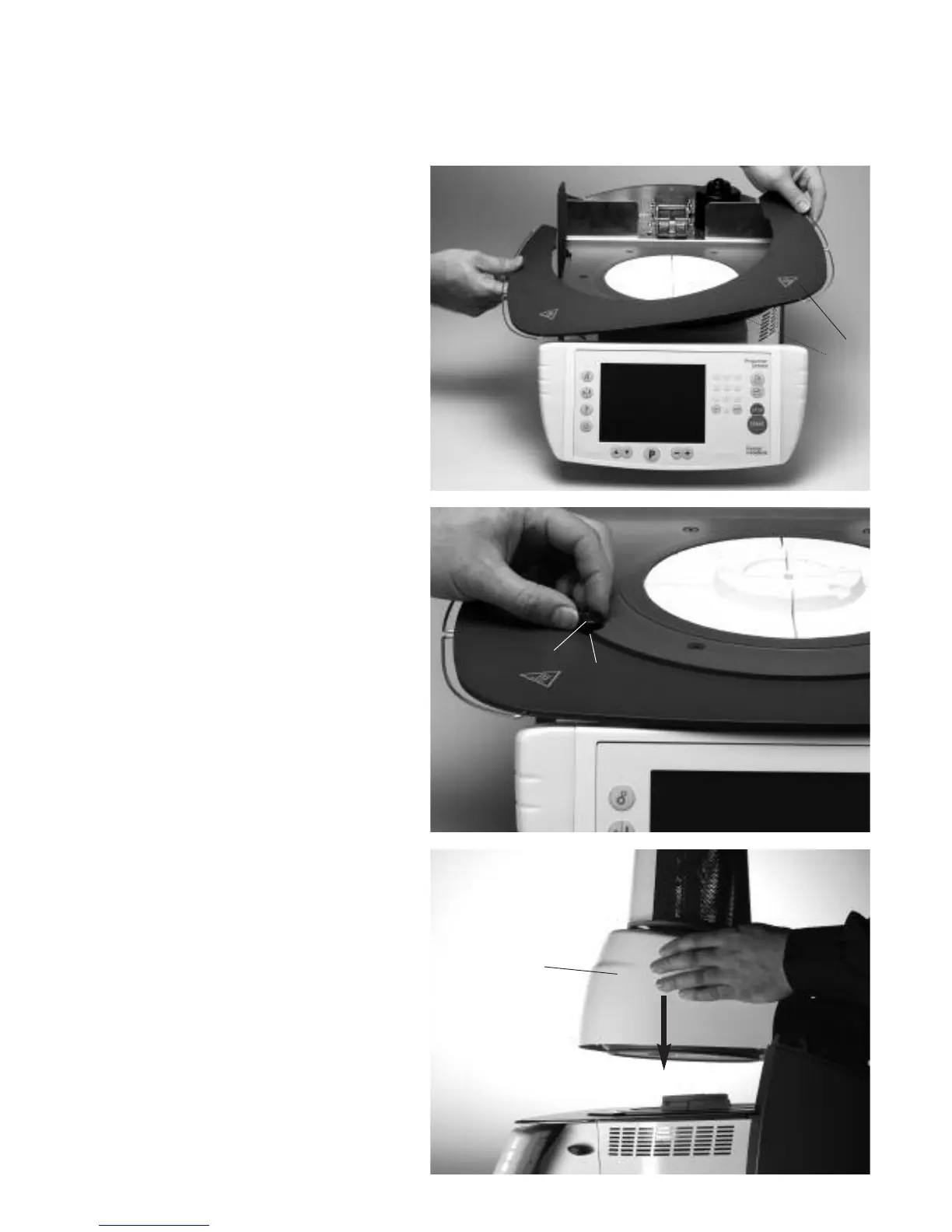

Mounting the furnace head
The complete furnace head (58) is best mounted
with the rear panel of the furnace pointing
towards the user. Lift the furnace head with both
hands (see picture) and carefully position it on the
furnace head mounting (43).
Secure the cooling tray L (34) with the two screws
(35) including the silicone washer (47).
Place the cooling tray L (34) on the frame plate (7).
Make sure that the cooling tray L (34) is correctly
positioned on the frame plate (7).
34
58
7
35
47
