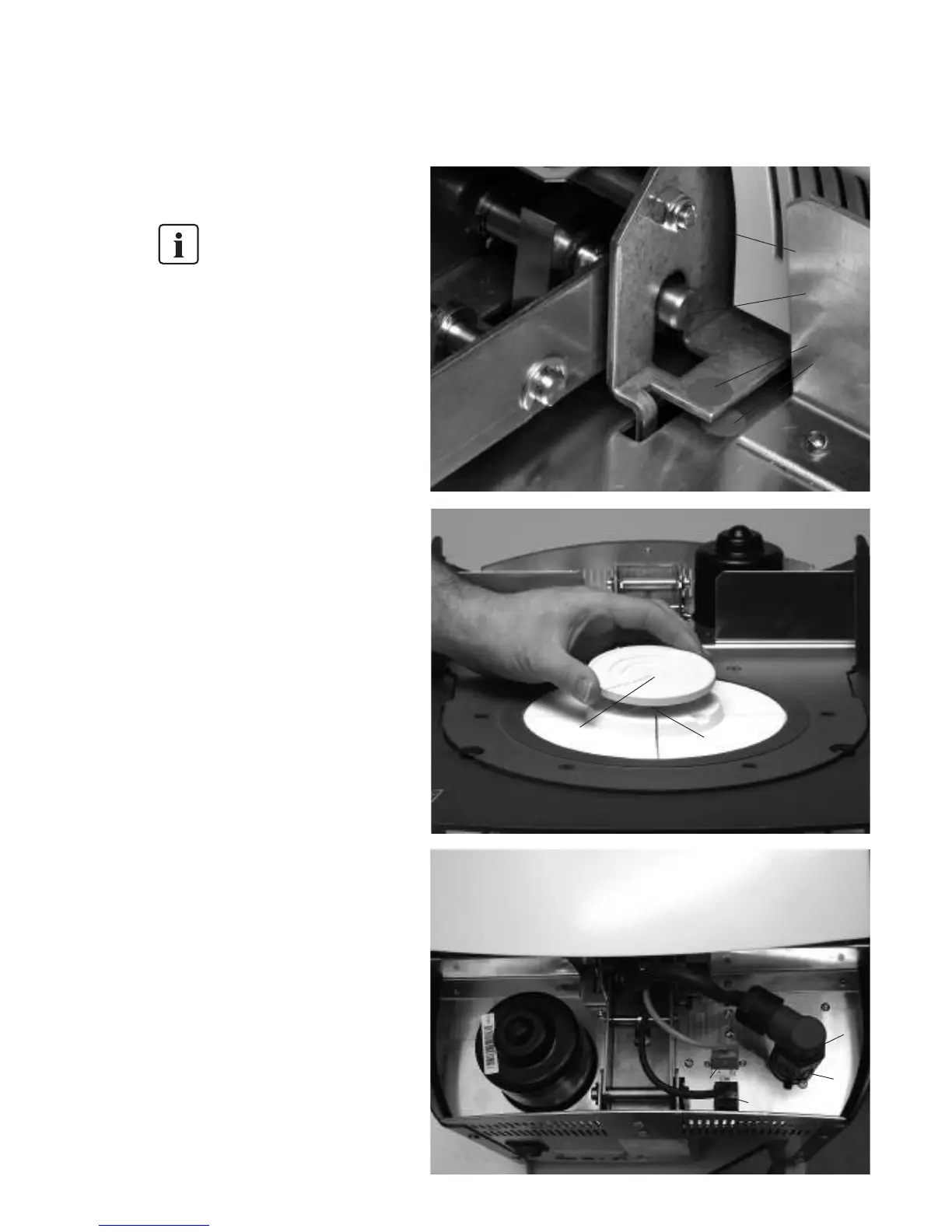

Step 3:
Placing the firing plate for the investment
ring (5)
The firing plate for the investment ring (5) can
now be placed on the firing plate holder (48).
Ensure that the furnace head mounting mark (41)
is aligned with the furnace base mounting mark
(42).
Make sure that the firing plate (5) is
not damaged by mounting the furnace
head.
Step 4:
Connections
Connect the cables of the furnace head with the
furnace base. Proceed as follows:
– Insert the thermocouple plug (26) (make sure
that the polarity of the plug is correct)
– Insert the heater plug (28)
– Insert the press drive plug (60)
